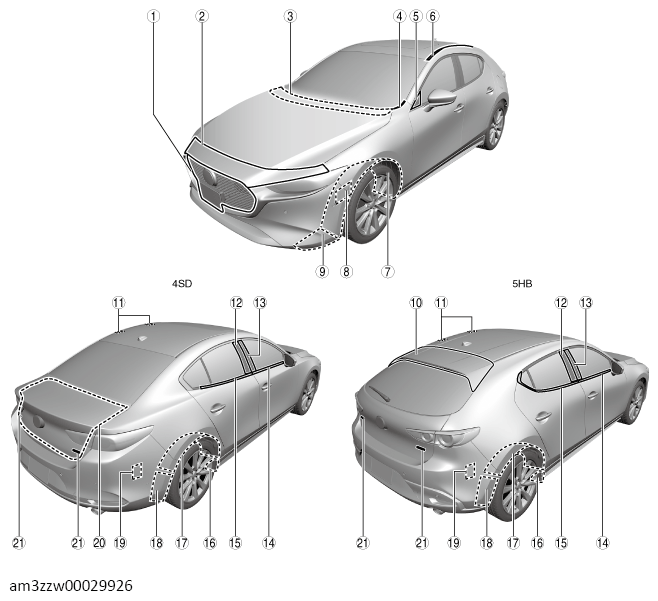

| 1 |
Radiator grille
(See RADIATOR GRILLE REMOVAL/INSTALLATION .)
(See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY (US) .) |
| 2 |
Upper face
(See UPPER FACE REMOVAL/INSTALLATION (US) .)
(See UPPER FACE DISASSEMBLY/ASSEMBLY .) |
| 3 |
Cowl grille
(See COWL GRILLE REMOVAL/INSTALLATION .) |
| 4 |
Front fender molding
(See FRONT FENDER MOLDING REMOVAL/INSTALLATION .) |
| 5 |
Sail garnish
(See SAIL GARNISH REMOVAL/INSTALLATION .) |
| 6 |
Roof molding
(See ROOF MOLDING REMOVAL .)
(See ROOF MOLDING INSTALLATION .) |
| 7 |
Front mudguard
(See MUDGUARD REMOVAL/INSTALLATION .) |
| 8 |
Front splash shield
(See SPLASH SHIELD REMOVAL/INSTALLATION .) |
| 9 |
Front deflector
(See DEFLECTOR REMOVAL/INSTALLATION .) |
| 10 |
Rear spoiler (Hatchback-5HB)
(See REAR SPOILER REMOVAL .)
(See REAR SPOILER INSTALLATION .) |
| 11 |
Roof carrier bracket (with roof carrier bracket)
(See ROOF CARRIER BRACKET REMOVAL/INSTALLATION .) |
| 12 |
Rear door garnish
(See REAR DOOR GARNISH REMOVAL/INSTALLATION .) |
| 13 |
Front door garnish
(See FRONT DOOR GARNISH REMOVAL/INSTALLATION .) |
| 14 |
Front beltline molding
(See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .) |
| 15 |
Rear beltline molding
(See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .) |
| 16 |
Rear deflector
(See DEFLECTOR REMOVAL/INSTALLATION .) |
| 17 |
Rear mudguard
(See MUDGUARD REMOVAL/INSTALLATION .) |
| 18 |
Rear splash shield
(See SPLASH SHIELD REMOVAL/INSTALLATION .) |
| 19 |
Extractor chamber
(See EXTRACTOR CHAMBER REMOVAL/INSTALLATION .) |
| 20 |
Trunk lid weatherstrip
(See TRUNK LID WEATHERSTRIP INSTALLATION .) |
| 21 |
Emblem
(See EMBLEM INSTALLATION .) |
