Roof Molding Installation

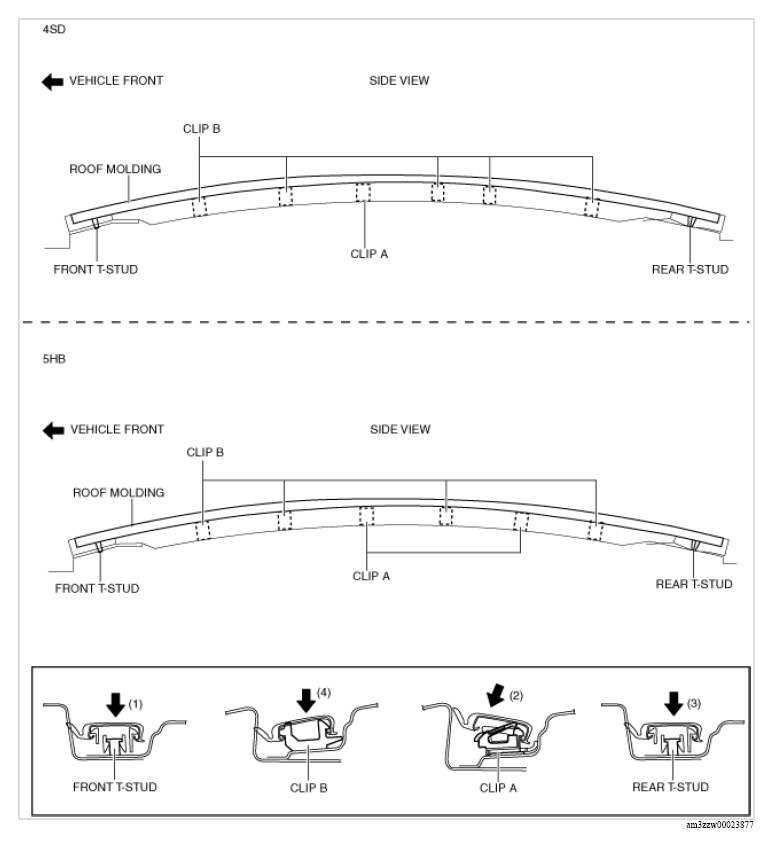

  1. Press the roof molding in the direction of arrow (1) shown in the figure and install it to the front T-stud.
    G13179302Courtesy of MAZDA MOTORS CORP.
  2. Hook the roof molding to clips A and install it while pressing it in the direction of arrow (2) shown in the figure.
  3. Press the roof molding in the direction of arrow (3) shown in the figure and install it to the rear T-stud.
  4. Press the roof molding in the direction of arrow (4) shown in the figure and install it to the clips B.
