Front Fender Molding Removal/Installation

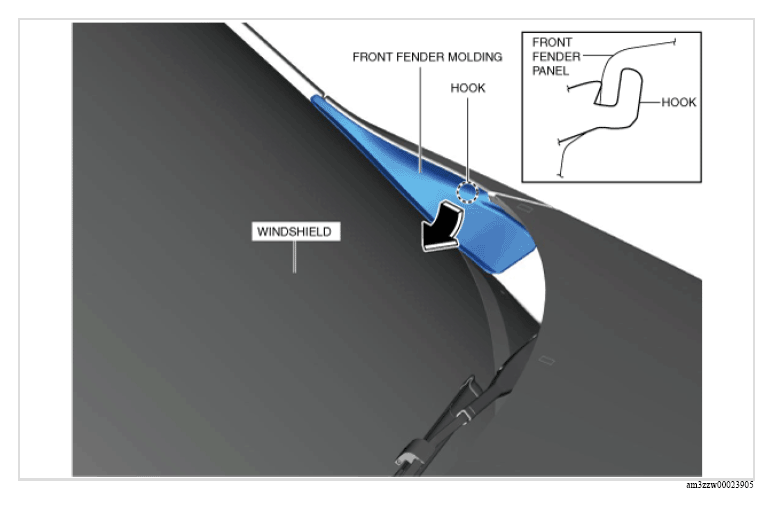

  1. Pull the front fender molding in the direction of the arrow shown in the figure and remove the hook from the front fender panel.
    G13179253Courtesy of MAZDA MOTORS CORP.

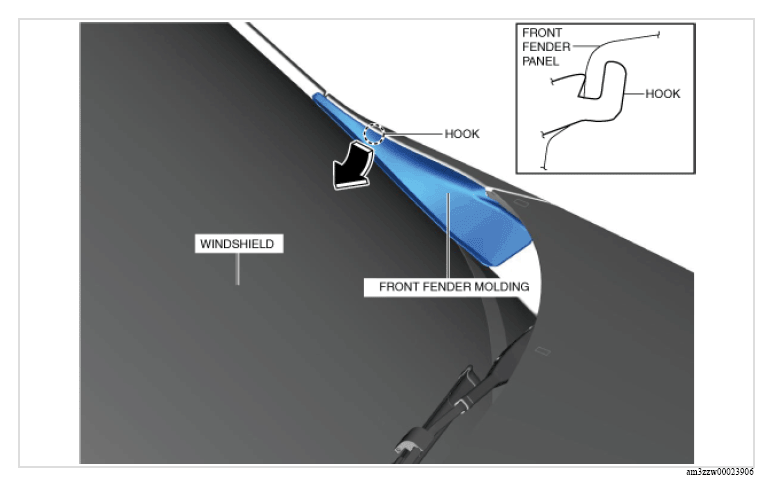

  2. Move the front fender molding in the direction of the arrow shown in the figure and remove the hook from the front fender panel.
    G13179254Courtesy of MAZDA MOTORS CORP.

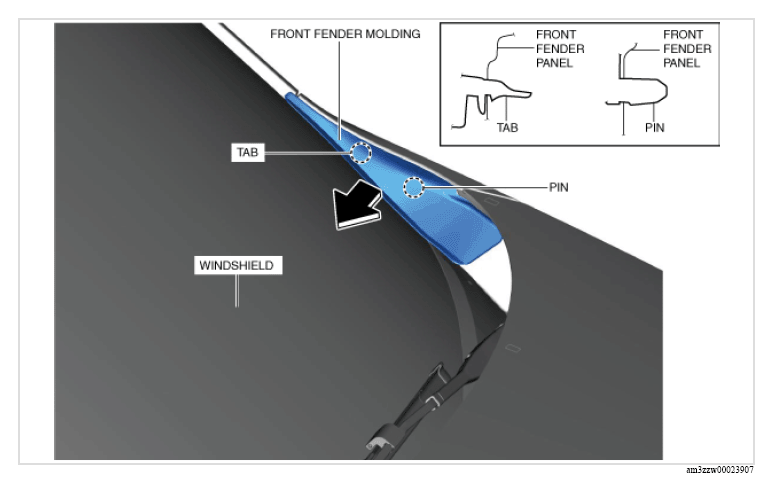

  3. Remove the front fender molding in the direction of the arrow while detaching the tab and pin.
    G13179255Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
