Sail Garnish Removal/Installation

Replacement part

1. Fully open the front door glass.

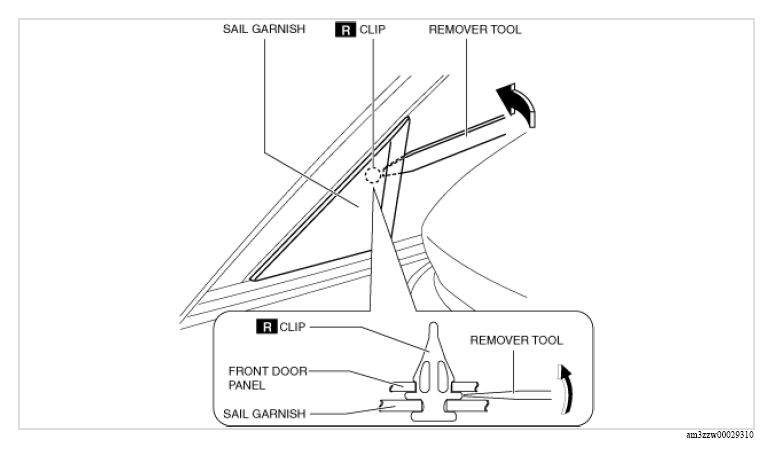

2. Insert a remover tool, move it in the direction of the arrow shown in the figure, and remove the clip.

   Courtesy of MAZDA MOTORS CORP.

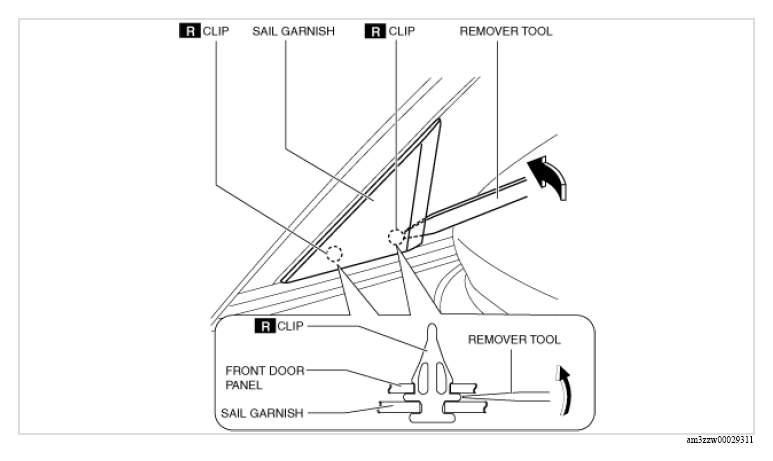

3. Insert a remover tool, move it in the direction of the arrow shown in the figure, remove the clips, and remove the sail garnish.

   Courtesy of MAZDA MOTORS CORP.

4. When removing the corner bracket, perform the following procedure:

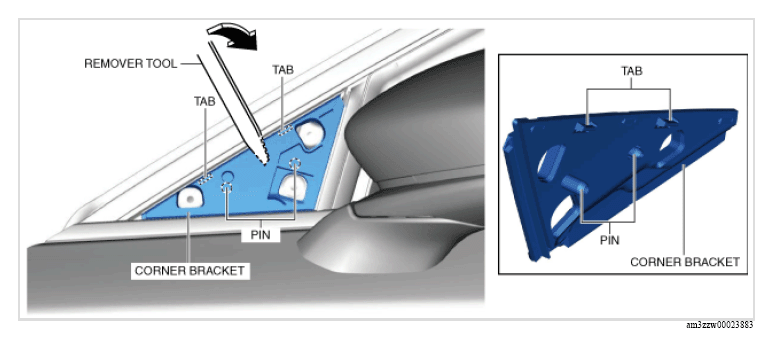

   1. Insert a remover tool, move it in the direction of the arrow shown in the figure, remove the pins and tabs, and remove the corner bracket.

   Courtesy of MAZDA MOTORS CORP.

5. Install in the reverse order of removal.
