Side Step Molding Installation

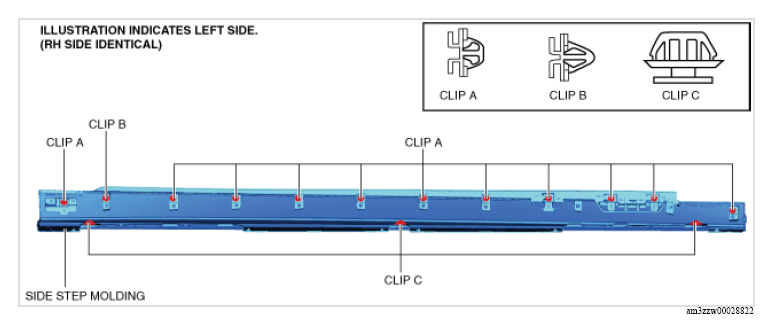

  1. Install clips A, B and C to the side step molding.
    G13179310Courtesy of MAZDA MOTORS CORP.

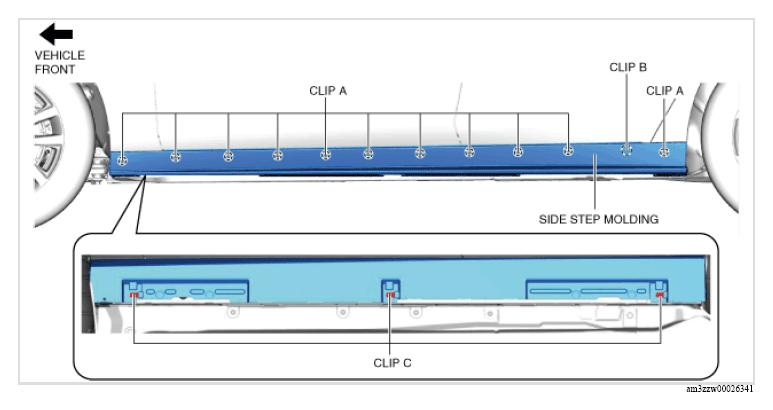

  2. Press the side step molding and install clip B to the body.
    G13179311Courtesy of MAZDA MOTORS CORP.
  3. Press the side step molding starting from the rear of the vehicle and install the clips A.
  4. Press the side step molding and install clips C to the body.

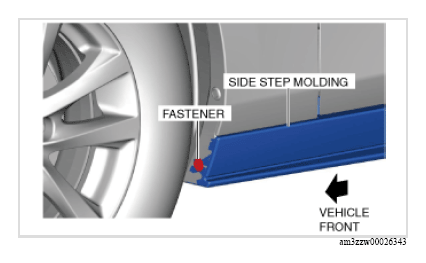

  5. Install the fastener.
    G13179312Courtesy of MAZDA MOTORS CORP.
  6. Install the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)
