Side Step Molding Removal

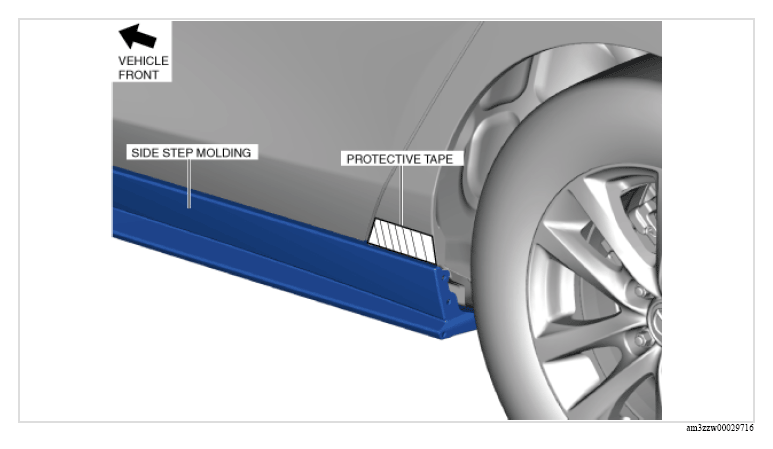

  1. Affix protective tape to the position shown in the figure.
    G13179313Courtesy of MAZDA MOTORS CORP.
  2. Remove the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)

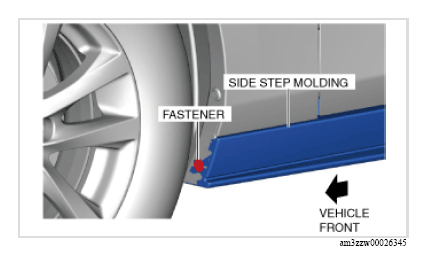

  3. Remove the fastener.
    G13179314Courtesy of MAZDA MOTORS CORP.

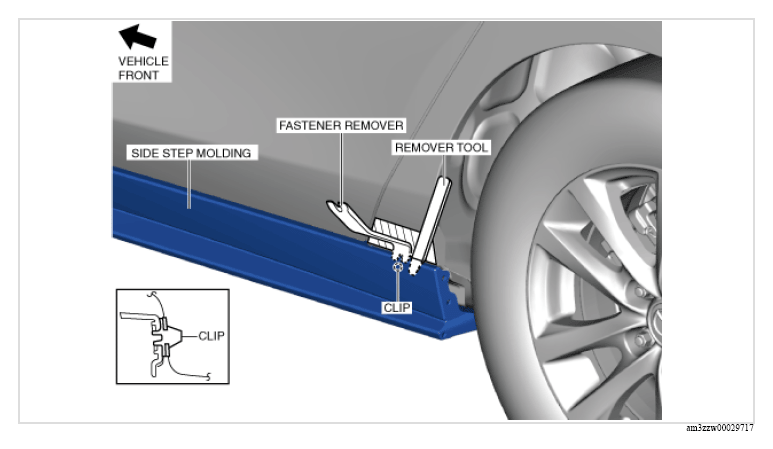

  4. Insert a remover tool and fastener remover shown in the figure, and detach the clip from the body.
    G13179315Courtesy of MAZDA MOTORS CORP.

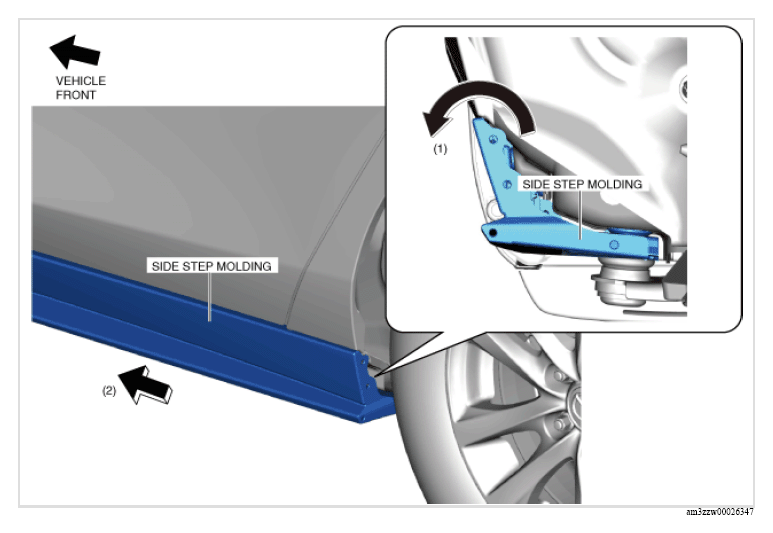

  5. Remove the side step molding in the direction of arrow (2) shown in the figure while pulling it in the direction of arrow (1).
    G13179316Courtesy of MAZDA MOTORS CORP.

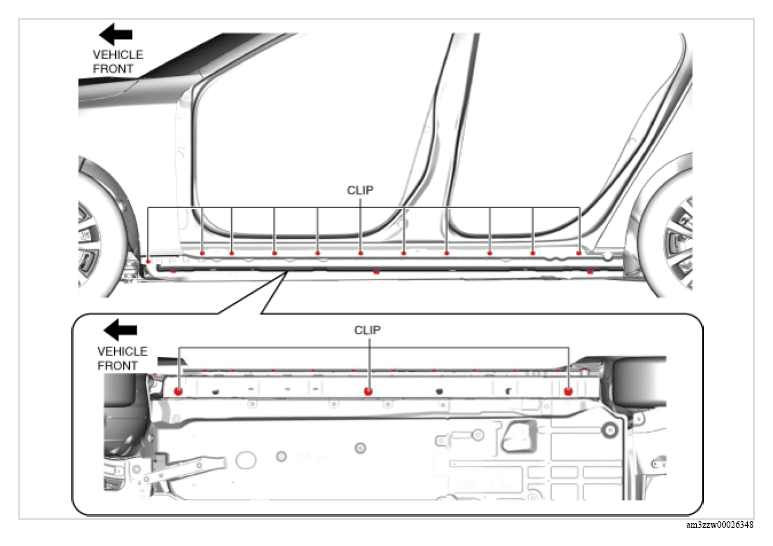

  6. After removing the side step molding, remove the clips from the body using a fastener remover.
    G13179317Courtesy of MAZDA MOTORS CORP.
