Rear Under Cover Removal/Installation

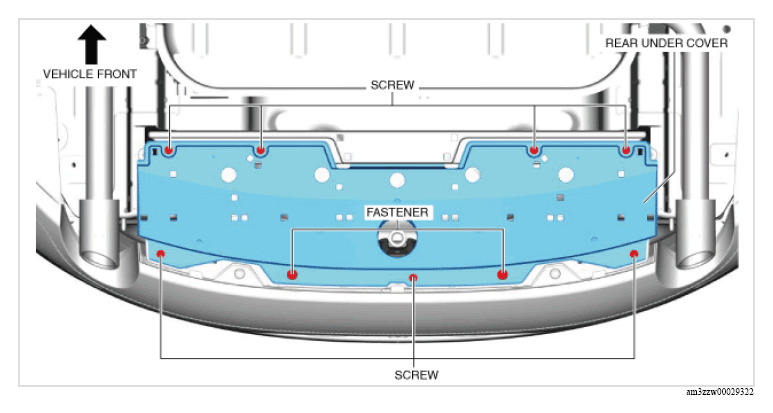

  1. Remove the screws.
    G13179296Courtesy of MAZDA MOTORS CORP.
  2. Remove the fasteners.

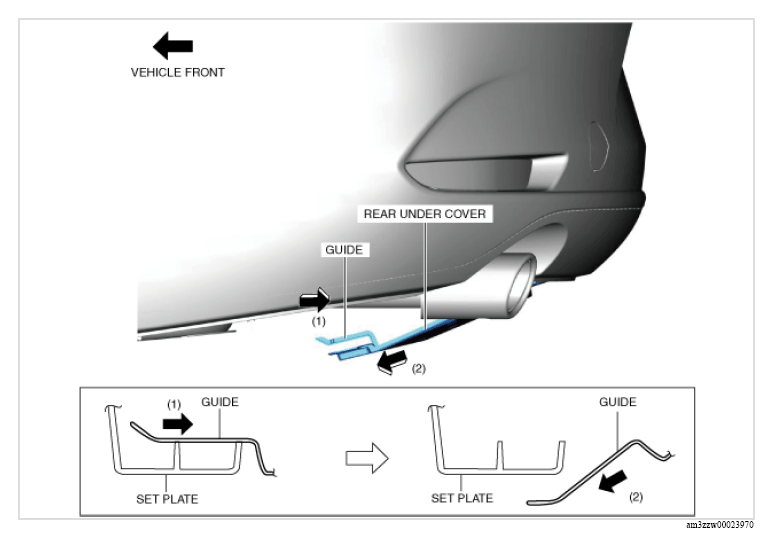

  3. Remove the rear under cover in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the guide.
    G13179297Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
