Extractor Chamber Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Trunk side upper trim (Hatchback-5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    5. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    6. Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
    7. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)

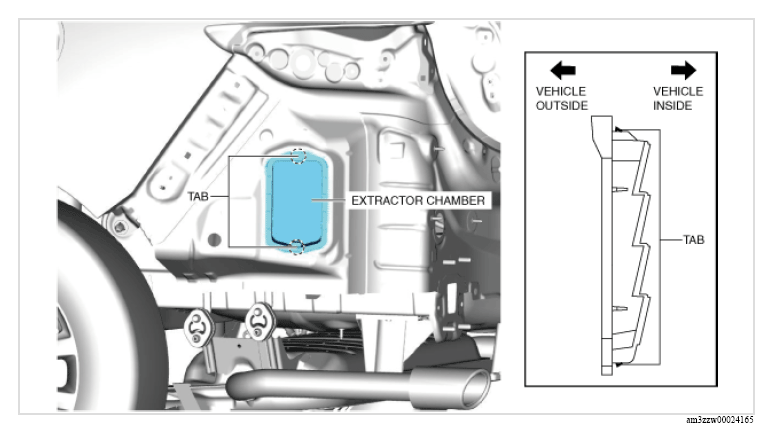

  3. Detach the tabs.
    G13179239Courtesy of MAZDA MOTORS CORP.

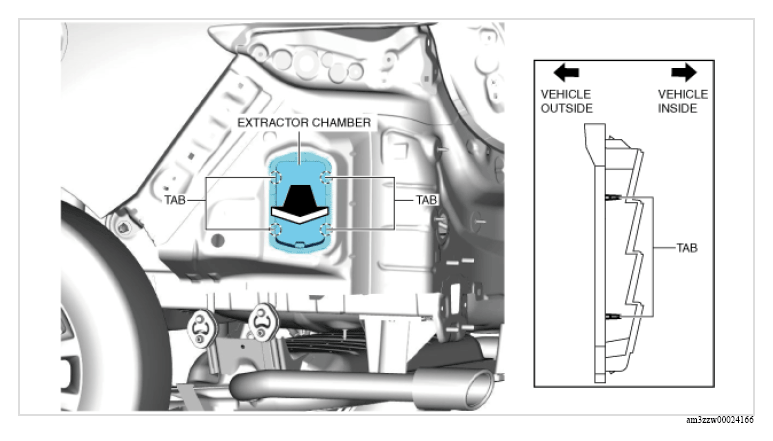

  4. Remove the extractor chamber in the direction of the arrow shown in the figure while detaching the tabs.
    G13179240Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Perform 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING .)
  7. Perform the rear side radar sensor aiming adjustment. (with rear side radar sensor) (See FRONT SIDE/REAR SIDE RADAR SENSOR AIMING .)
