Interior Trim Location Index (Us)

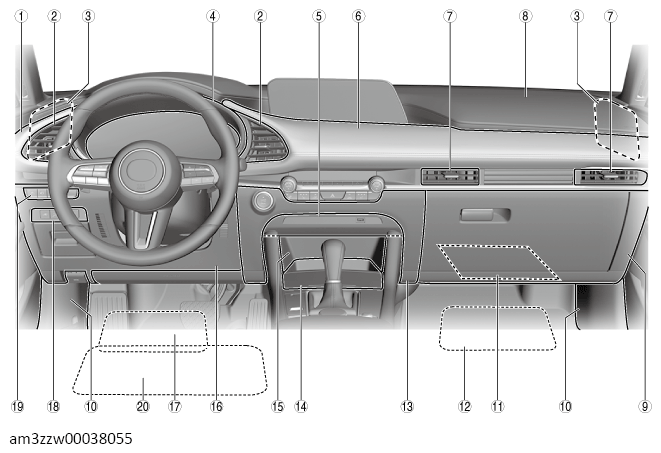

G13717971Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION

1 Driver-side decoration panel
(See DECORATION PANEL REMOVAL/INSTALLATION .)
2 Driver-side ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION (US) .)
3 Dashboard side cover
(See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
4 Meter hood
(See METER HOOD REMOVAL/INSTALLATION .)
5 Audio panel
(See AUDIO PANEL REMOVAL/INSTALLATION (US) .)
6 Passenger-side decoration panel
(See DECORATION PANEL REMOVAL/INSTALLATION .)
7 Passenger-side ventilator grille
(See VENTILATOR GRILLE REMOVAL/INSTALLATION (US) .)
8 Dashboard
(See DASHBOARD REMOVAL (US) .)
(See DASHBOARD INSTALLATION (US) .)
(See DASHBOARD DISASSEMBLY/ASSEMBLY (US) .)
9 Passenger-side lower panel
(See LOWER PANEL REMOVAL/INSTALLATION (US) .)
(See LOWER PANEL DISASSEMBLY/ASSEMBLY (US) .)
10 Front side trim
(See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
11 Dashboard under cover
(See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
12 Foot support
(See FOOT SUPPORT REMOVAL/INSTALLATION .)
13 Center lower panel
(See LOWER PANEL REMOVAL/INSTALLATION (US) .)
14 Cup holder
(See CUP HOLDER REMOVAL/INSTALLATION .) (See CUP HOLDER DISASSEMBLY/ASSEMBLY .)
15 Front console box
(See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
16 Driver-side lower panel
(See LOWER PANEL REMOVAL/INSTALLATION (US) .)
(See LOWER PANEL DISASSEMBLY/ASSEMBLY (US) .)
17 Heel cushion
(See HEEL CUSHION REMOVAL/INSTALLATION .)
18 Cluster switch No. 2
(See CLUSTER SWITCH REMOVAL/INSTALLATION .)
19 Cluster switch No. 1
(See CLUSTER SWITCH REMOVAL/INSTALLATION .)
20 Driver-side floor mat
(See DRIVER-SIDE FLOOR MAT INSTALLATION .)

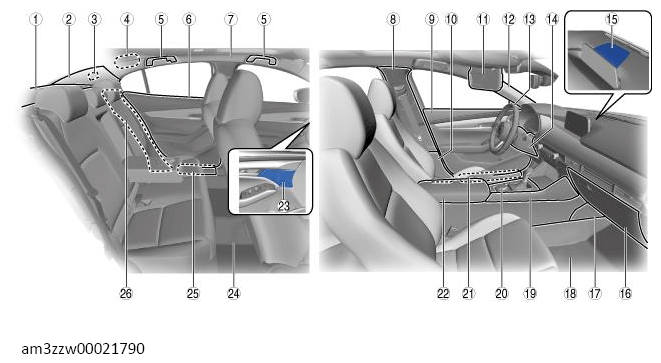

G13717972Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION

1 Rear package trim (Sedan-4SD)
(See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
2 C-pillar trim
(See C-PILLAR TRIM REMOVAL/INSTALLATION .)
3 Rear side speaker grille (with Bose ®)
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
4 Shock absorbing pad
(See SHOCK ABSORBING PAD REMOVAL/INSTALLATION (US) .)
5 Assist handle
(See ASSIST HANDLE REMOVAL/INSTALLATION .)
6 Rear door trim
(See REAR DOOR TRIM REMOVAL/INSTALLATION .)
7 Headliner
(See HEADLINER REMOVAL/INSTALLATION (US) .)
8 B-pillar upper trim
(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
9 Front door trim
(See FRONT DOOR TRIM REMOVAL/INSTALLATION (US) .)
10 B-pillar lower trim
(See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
11 Sun visor
(See SUNVISOR REMOVAL/INSTALLATION .)
12 A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION .)
13 Inner garnish
(See INNER GARNISH REMOVAL/INSTALLATION .)
14 Column cover
(See COLUMN COVER REMOVAL/INSTALLATION .)
15 Center speaker grille (with Bose ®)
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
16 Glove compartment
(See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
17 Side wall
(See SIDE WALL REMOVAL/INSTALLATION .)
18 Front floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION (US) .)
19 Console side panel
(See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
20 Shift panel
(See SHIFT PANEL REMOVAL/INSTALLATION .)
21 Front scuff plate
(See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
22 Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
(See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
(See CONSOLE LID LOCK REMOVAL/INSTALLATION .)
23 Front door speaker grille
(See SPEAKER GRILLE REMOVAL/INSTALLATION .)
24 Rear floor covering
(See FLOOR COVERING REMOVAL/INSTALLATION (US) .)
25 Rear scuff plate
(See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
26 Tire house trim
(See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)

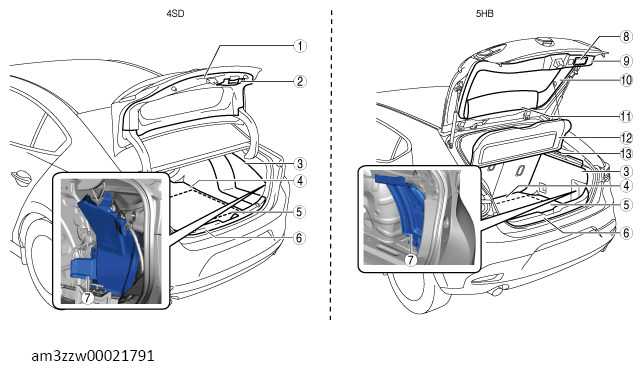

G13717973Courtesy of MAZDA MOTORS CORP.
PARTS DESCRIPTION

1 Trunk lid trim
(See TRUNK LID TRIM REMOVAL/INSTALLATION .)
2 Trunk lid handle
(See TRUNK LID HANDLE REMOVAL/INSTALLATION .)
3 Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION (US) .)
4 Trunk covering
(See TRUNK COVERING REMOVAL/INSTALLATION .)
5 Trunk board
(See TRUNK BOARD REMOVAL/INSTALLATION (US) .)
6 Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION .)
7 Trunk side insulator
(See TRUNK SIDE INSULATOR REMOVAL/INSTALLATION .)
8 Liftgate recess
(See LIFTGATE RECESS REMOVAL/INSTALLATION .)
9 Liftgate lower trim
(See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
10 Liftgate side trim
(See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
11 Liftgate upper trim
(See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
12 Rear package tray
(See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
13 Trunk side upper trim
(See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
