Rear Scuff Plate Removal/Installation

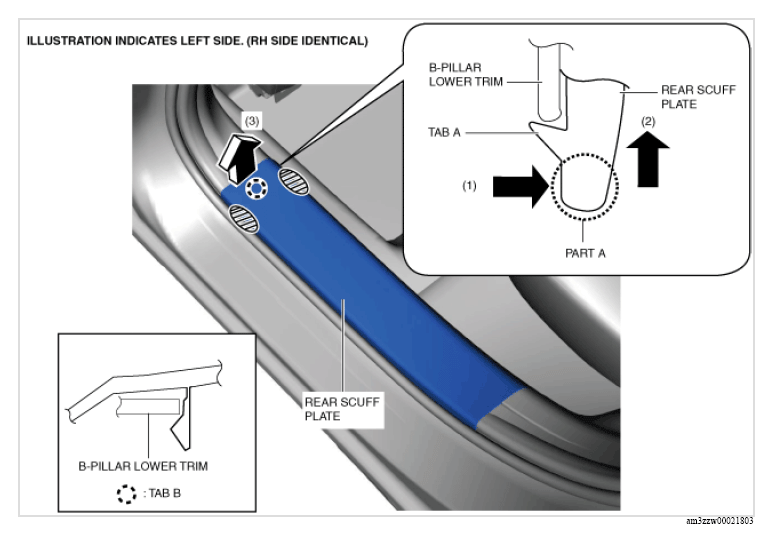

  1. Hold part A shown in the figure, open the rear scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the rear scuff plate from the B-pillar lower trim.
    G13179517Courtesy of MAZDA MOTORS CORP.
  2. Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of arrow (3), and detach tab B of the rear scuff plate from the B-pillar lower trim.

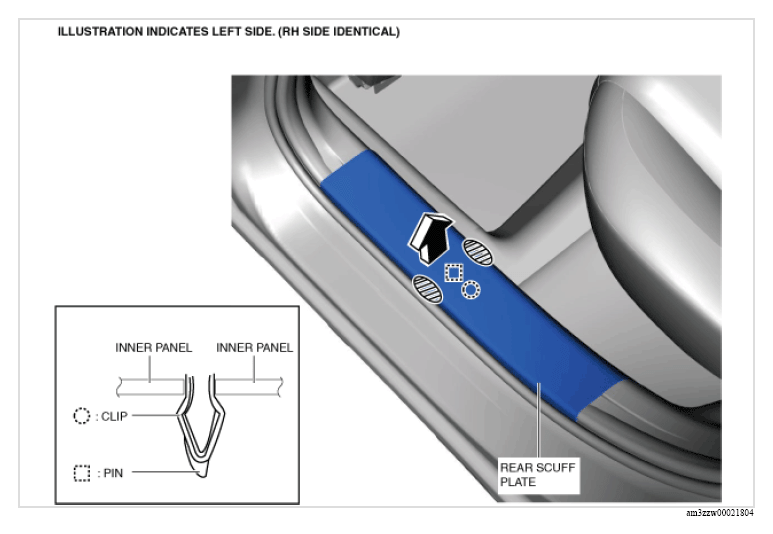

  3. Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of the arrow, detach the clip from the inner panel, and pull out the pin.
    G13179518Courtesy of MAZDA MOTORS CORP.

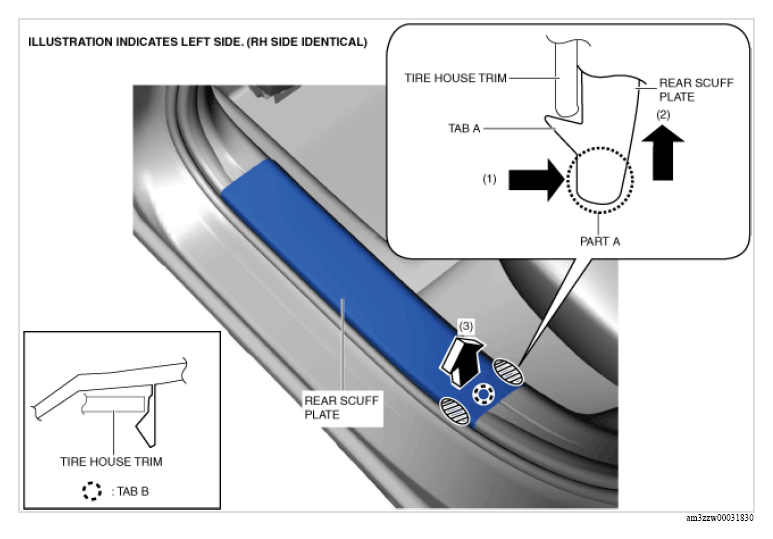

  4. Hold part A shown in the figure, open the rear scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the rear scuff plate from the tire house trim.
    G13179519Courtesy of MAZDA MOTORS CORP.
  5. Hold the shaded areas shown in the figure, move the rear scuff plate in the direction of arrow (3), and remove it while detaching tab B of the rear scuff plate from the tire house trim.
  6. Install in the reverse order of removal.
