Liftgate Side Trim Removal/Installation

  1. Remove the litigate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

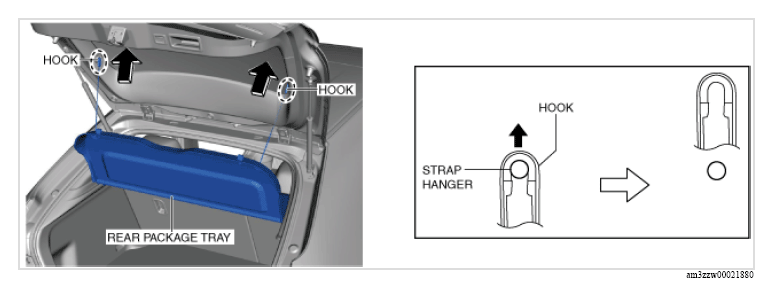

  2. Move the hooks in the direction of the arrows shown in the figure to disengage them from the strap hangers.
    G13179465Courtesy of MAZDA MOTORS CORP.

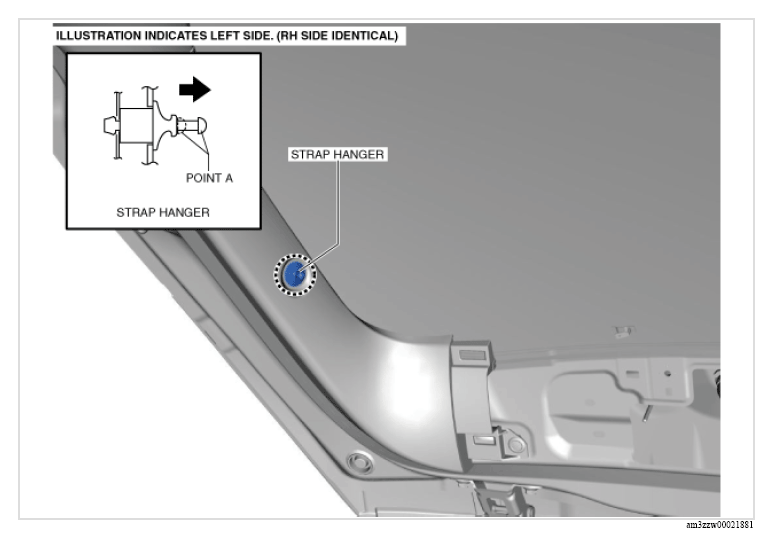

  3. Pull the point A of the strap hanger as shown in the figure.
    G13179466Courtesy of MAZDA MOTORS CORP.

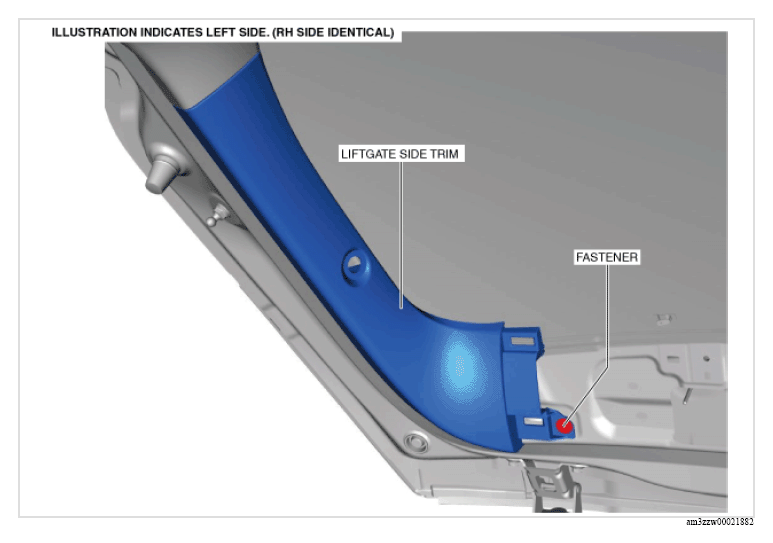

  4. Remove the fastener.
    G13179467Courtesy of MAZDA MOTORS CORP.

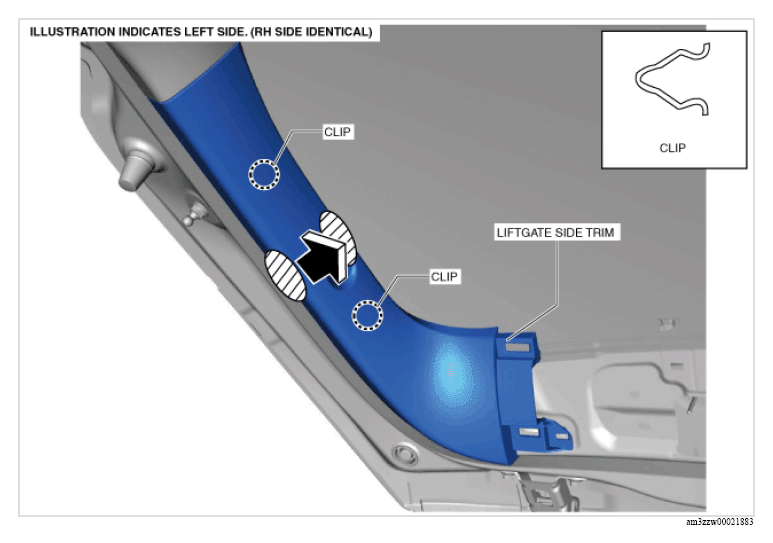

  5. Hold the shaded areas shown in the figure and detach the clips while moving the liftgate side trim in the direction of the arrow.
    G13179468Courtesy of MAZDA MOTORS CORP.

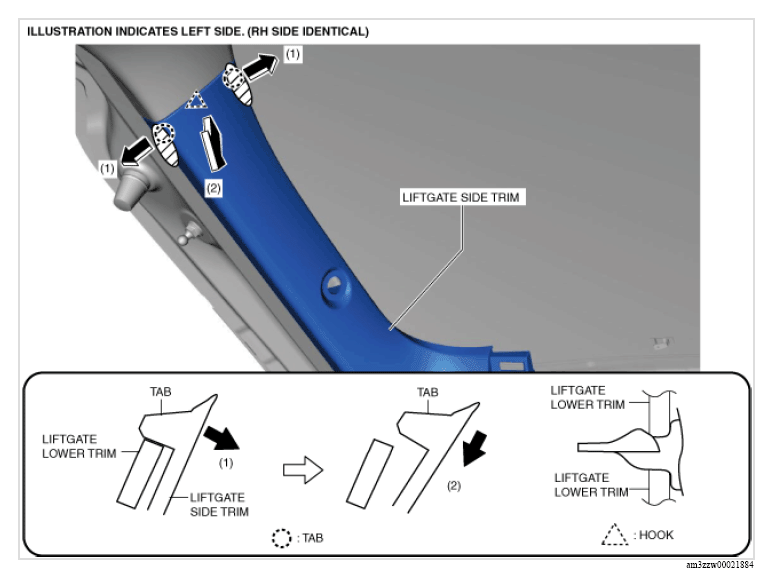

  6. Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate side trim in the direction of arrows (1) to detach the tabs, move the liftgate side trim in the direction of arrow (2) with the tabs detached and remove the liftgate side trim while detaching the hook.
    G13179469Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
