Liftgate Upper Trim Removal/Installation

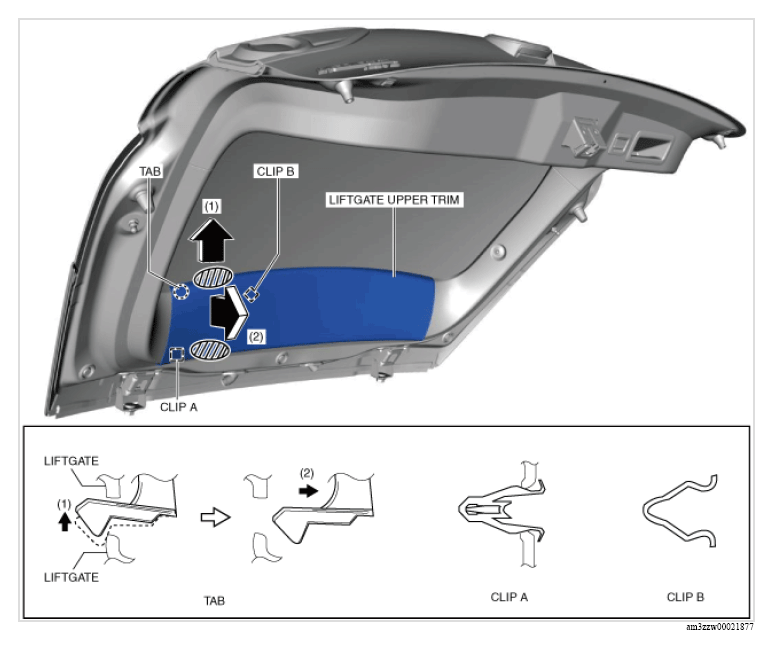

  1. Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate upper trim in the direction of arrow (1) to detach the tab, move the liftgate upper trim in the direction of arrow (2) with the tab detached, and detach clip A and B.
    G13179470Courtesy of MAZDA MOTORS CORP.

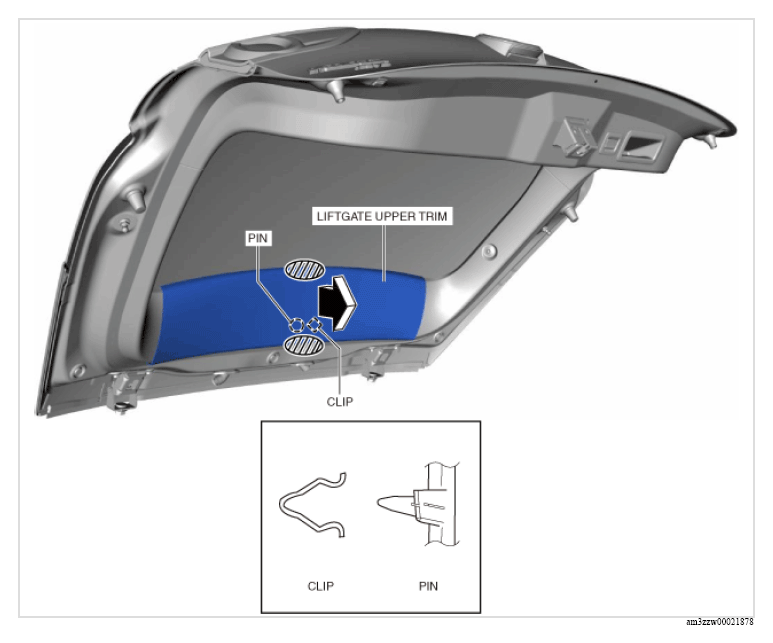

  2. Hold the shaded areas shown in the figure, move the liftgate upper trim in the direction of the arrow and detach the clip and pin.
    G13179471Courtesy of MAZDA MOTORS CORP.

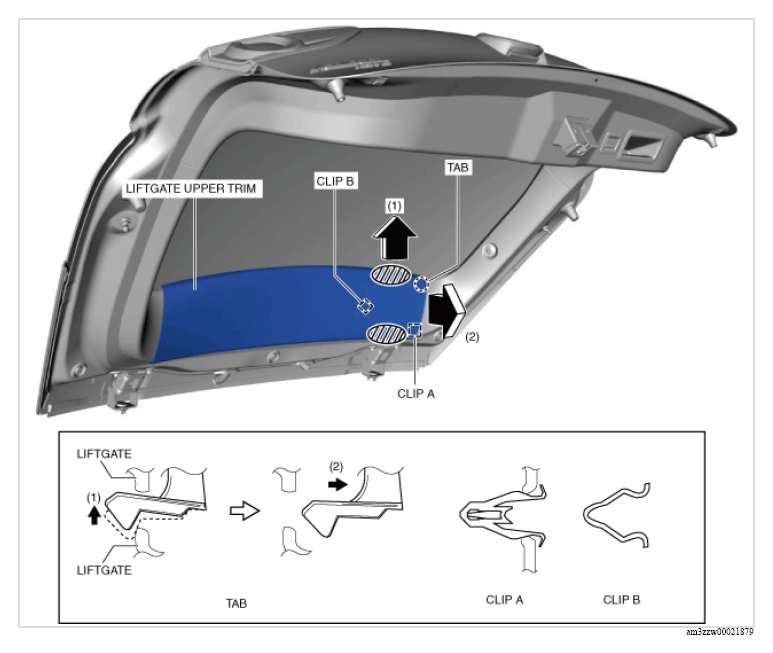

  3. Hold the shaded areas shown in the figure and partially peel back the edge of the liftgate upper trim in the direction of arrow (1) to detach the tab, move the liftgate upper trim in the direction of arrow (2) with the tab detached, and detach clips A and B.
    G13179472Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
