Rear Package Tray Removal/Installation

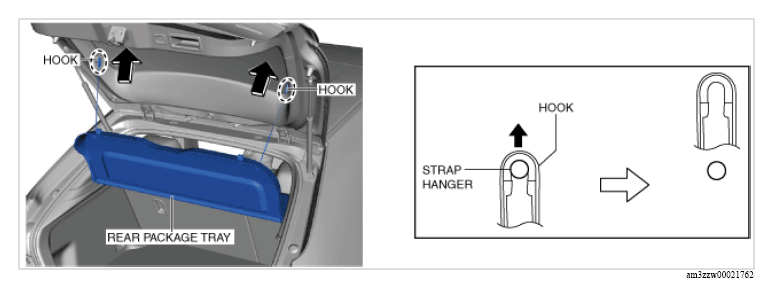

- Move the hooks in the direction of the arrows shown in the figure to disengage them from the strap hangers.

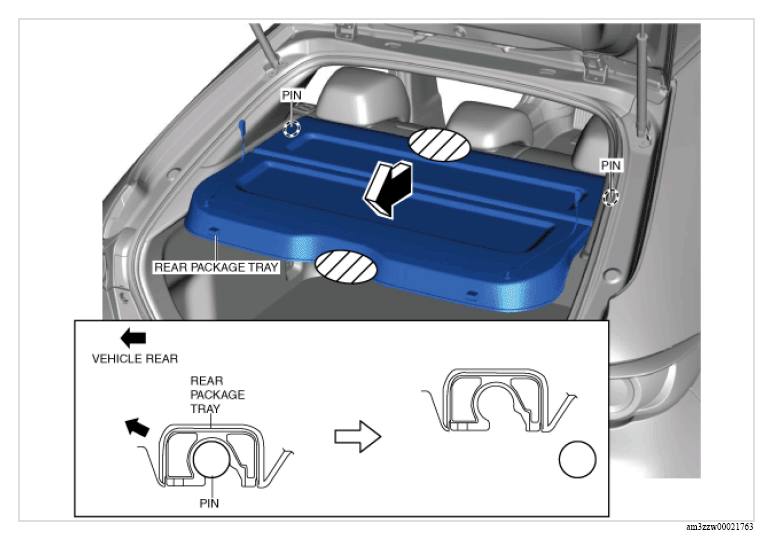

- Hold the shaded areas shown in the figure and while pulling the rear package tray in the direction of the arrow, remove the pins from the rear package tray.
- Install in the reverse order of removal.
