A-Pillar Trim Removal/Installation

Replacement part

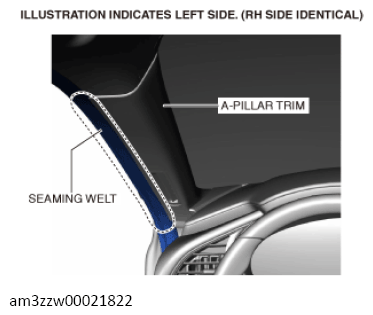

1. Partially peel back the seaming welt.

   Courtesy of MAZDA MOTORS CORP.

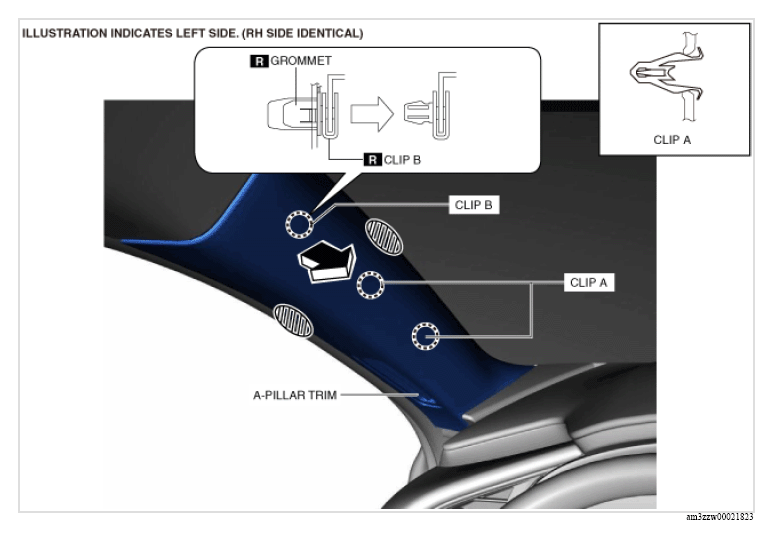

2. Grasp the shaded areas shown in the figure, and pull the A-pillar trim in the direction of the arrow while detaching clips A and clip B.

   Courtesy of MAZDA MOTORS CORP.

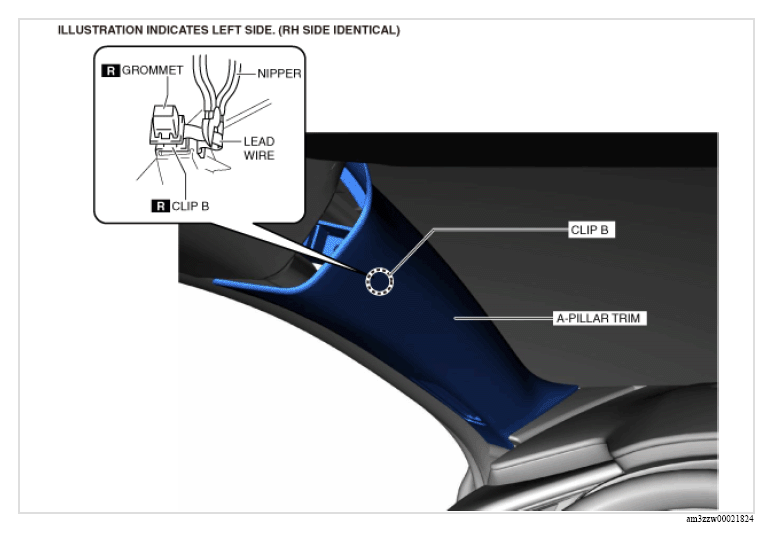

3. Cut the lead wire connecting clip B and the grommet using a nipper.

   Courtesy of MAZDA MOTORS CORP.

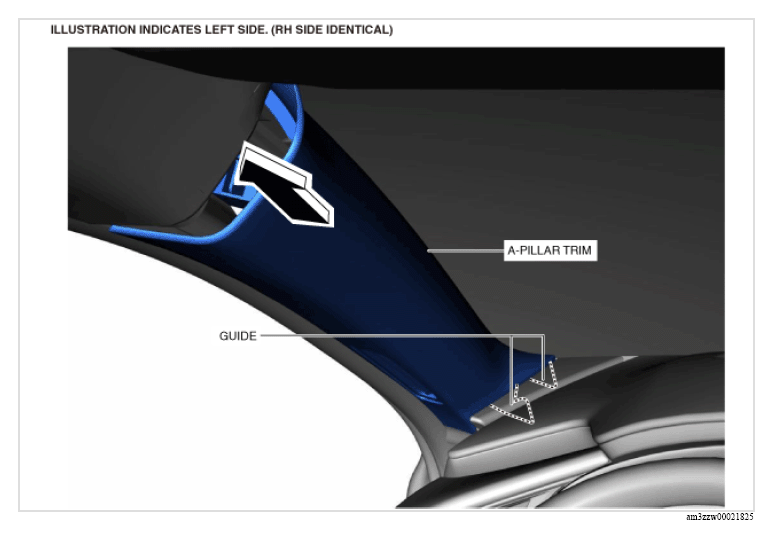

4. Pull the A-pillar trim in the direction of the arrow and remove the A-pillar trim while detaching the guides.

   Courtesy of MAZDA MOTORS CORP.

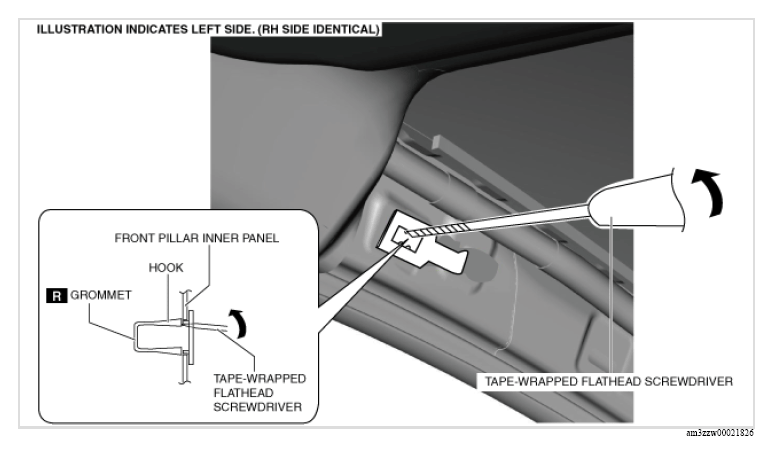

5. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and then detach the hook.

   Courtesy of MAZDA MOTORS CORP.

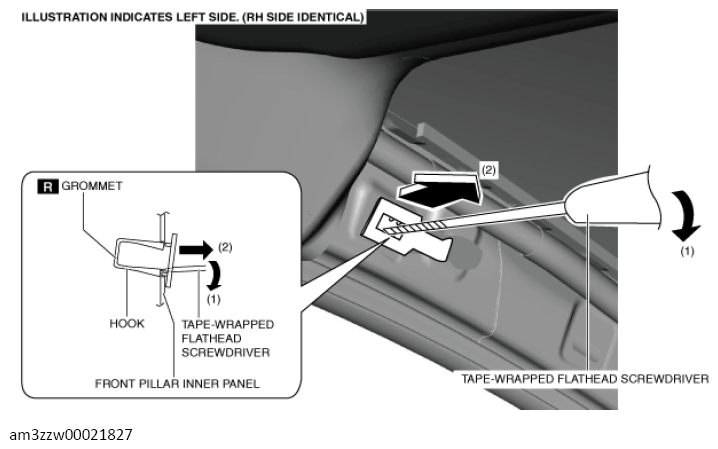

6. Move the hook in the direction of arrow (1) shown in the figure using a tape-wrapped flathead screwdriver and detach it from the front pillar inner panel.

   Courtesy of MAZDA MOTORS CORP.

7. Remove the grommet in the direction of arrow (2) shown in the figure.
8. When installing the A-pillar trim, install new clip B and grommet to the A-pillar trim in advance.
9. Install in the reverse order of removal.
