Trunk Lid Trim Removal/Installation

  1. Remove the trunk lid handle. (See TRUNK LID HANDLE REMOVAL/INSTALLATION .)

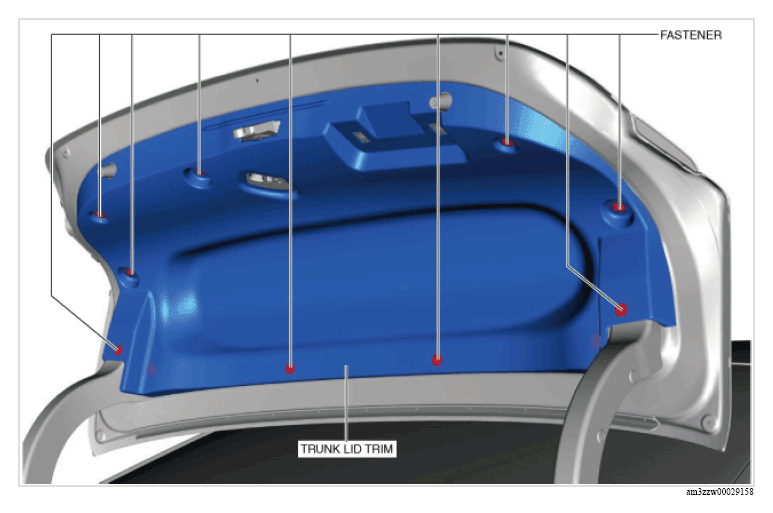

  2. Remove the fasteners, then remove the trunk lid trim.
    G13179559Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
