Automatic Transmission

  1. Check torque converter hub and hub drive flats for sharp edges burrs, scratches, or nicks. Polish the hub and flats with 320/400 grit paper and crocus cloth if necessary. Verify that the converter hub o-ring is properly installed and is free of any debris. The hub must be smooth to avoid damaging pump seal at installation.
  2. If a replacement transmission is being installed, transfer any components necessary, such as the manual shift lever and shift cable bracket, from the original transmission onto the replacement transmission.
  3. Lubricate oil pump seal lip with transmission fluid.
  4. Align converter and oil pump.
  5. Carefully insert converter in oil pump. Then rotate converter back and forth until fully seated in pump gears.
  6. Check converter seating with steel scale and straightedge. Surface of converter lugs should be at least 13 mm (1/2 in.) to rear of straightedge when converter is fully seated.
  7. Temporarily secure converter with C-clamp.

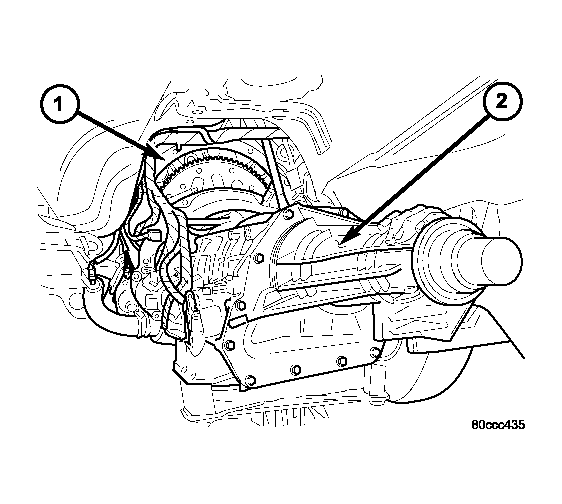

    Fig 1: Removing/Installing Transmission
    GC0005201Courtesy of CHRYSLER LLC
    1 - ENGINE
    2 - TRANSMISSION
  8. Position transmission on jack and secure it with chains.
  9. Check condition of converter driveplate. Replace the plate if cracked, distorted or damaged. Also be sure transmission dowel pins are seated in engine block and protrude far enough to hold transmission in alignment.
  10. Apply a light coating of Mopar® High Temp Grease to the torque converter hub pocket in the rear pocket of the engine's crankshaft.
  11. Raise transmission and align the torque converter with the drive plate and the transmission converter housing with the engine block.
    NOTE: Before aligning the transmission to the engine block fit the transmission fill tube to the vehicle.
  12. Move transmission forward. Then raise, lower, or tilt transmission (2) to align the converter housing with the engine (1) block dowels. See Fig 1.
  13. Carefully work transmission forward and over engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent hose, have become trapped between the engine block and the transmission.

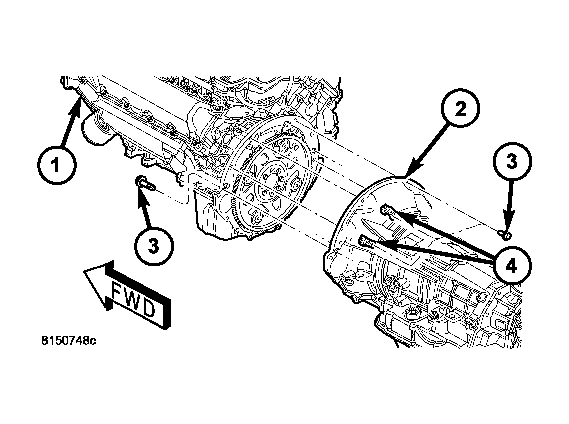

    Fig 2: Removing Transmission to Engine Bolts
    GC0027350Courtesy of CHRYSLER LLC
    1 - ENGINE
    2 - TRANSMISSION
    3 - BOLTS
    4 - WIRING HARNESS CLIPS
  14. Install two bolts (3) to attach the transmission (2) to the engine (1). See Fig 2.
  15. Install remaining torque converter housing to engine bolts. Tighten to 68 N.m (50 ft.lbs.).
    Fig 3: Remove/Install Oil Pan To Transmission Bolts
    GC0027262Courtesy of CHRYSLER LLC
    1 - BOLTS
  16. Install both the left and right side oil pan to transmission bolts (1), 5.7L only. Torque the bolts to 54 N.m (40 ft. lbs.). See Fig 3.

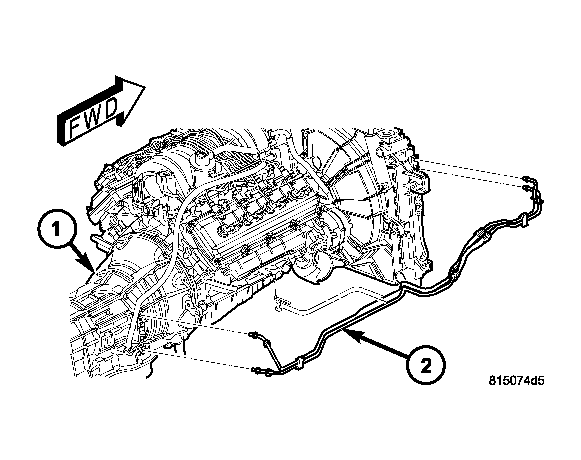

    Fig 4: Transmission Lines
    GC0027352Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - TRANSMISSION OIL COOLER LINES
  17. Connect cooler lines (2) to transmission (1).
    Fig 5: Transmission Fill Tube
    GC0027354Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - FILL TUBE
    3 - DIPSTICK
    4 - BOLTS
  18. Install transmission fill tube (2) to the transmission (1). See Fig 5.

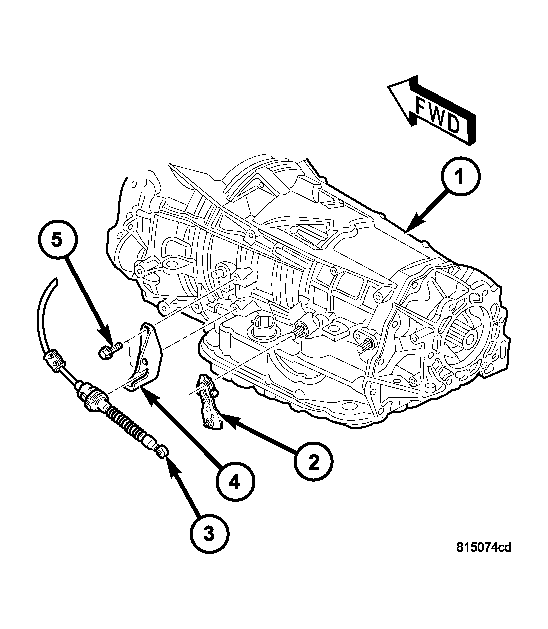

    Fig 6: Removing/Installing Shift Cable & Bracket
    GC0027351Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - MANUAL LEVER
    3 - SHIFT CABLE
    4 - SHIFT CABLE BRACKET
    5 - BOLT
  19. Install rear transmission crossmember. Tighten crossmember to frame bolts to 68 N.m (50 ft.lbs.).
  20. Install rear support to transmission. Tighten bolts to 47 N.m (35 ft.lbs.).
  21. Lower transmission onto crossmember and install bolts attaching transmission mount to crossmember. Tighten clevis bracket to crossmember bolts to 47 N.m (35 ft.lbs.). Tighten the clevis bracket to rear support bolt to 68 N.m (50 ft.lbs.).
  22. Remove engine support fixture.
  23. Install new plastic retainer grommet on any shift cable that was disconnected. Grommets should not be reused. Use pry tool to remove rod from grommet and cut away old grommet. Use pliers to snap new grommet into cable and to snap grommet onto lever.
  24. Connect gearshift cable (3) to the shift cable bracket (4) and the transmission manual lever (2). See Fig 6.

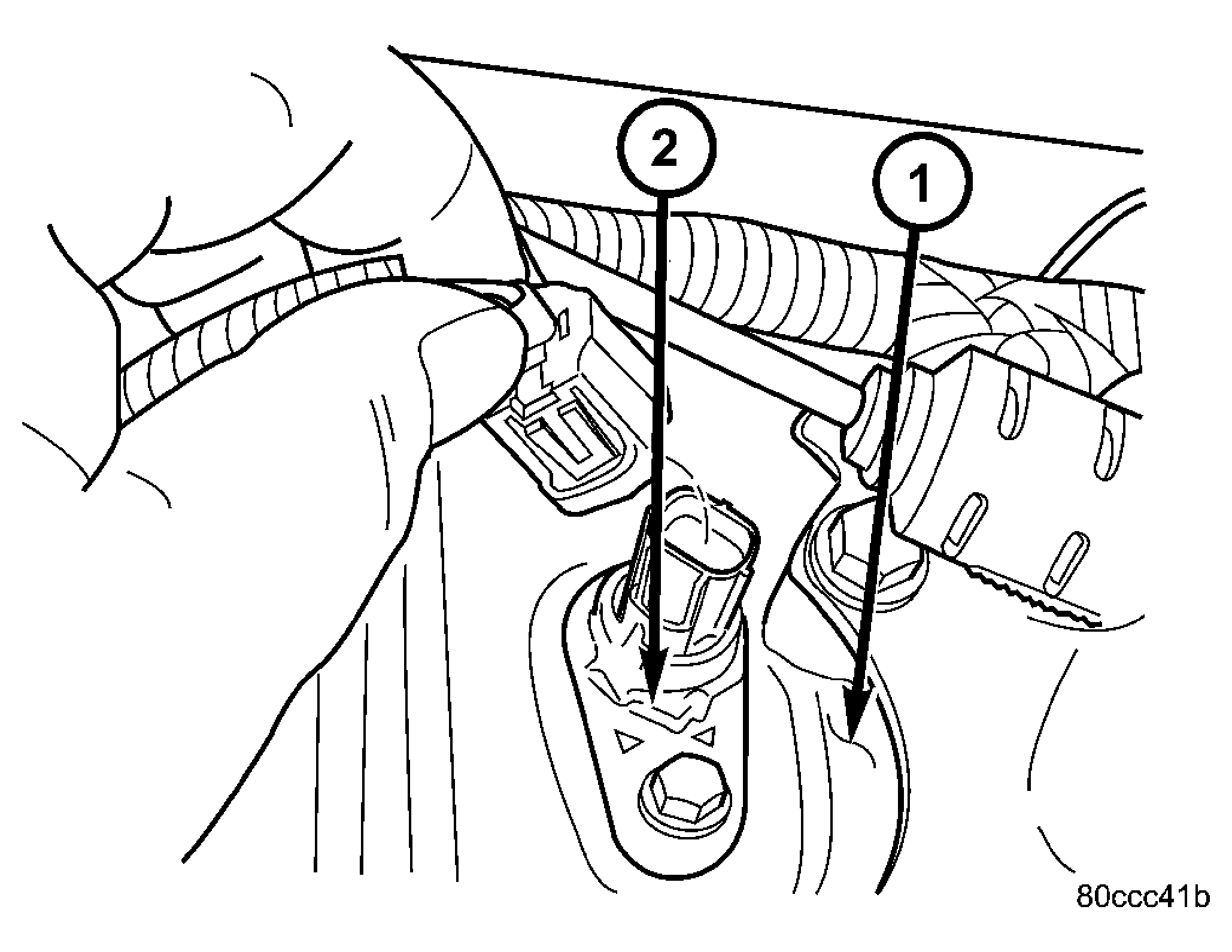

    Fig 7: Locating Input Speed Sensor
    GC0005198Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - INPUT SPEED SENSOR
  25. Connect wires to the input speed sensor (2). See Fig 7. Be sure transmission harnesses are properly routed.

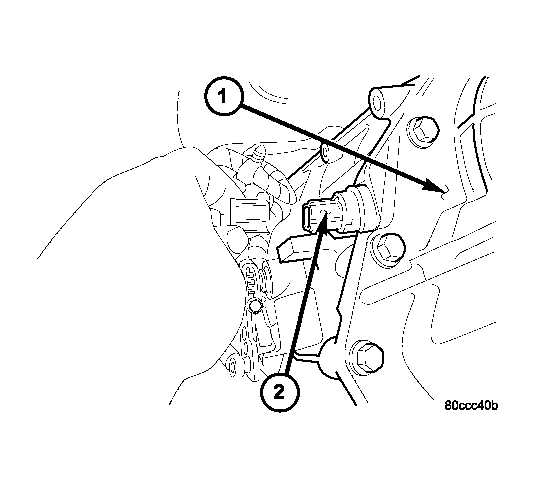

    Fig 8: Locating Output Speed Sensor
    GC0005197Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - OUTPUT SPEED SENSOR
  26. Connect wires to the output speed sensor (2). See Fig 8. Be sure transmission harnesses are properly routed.

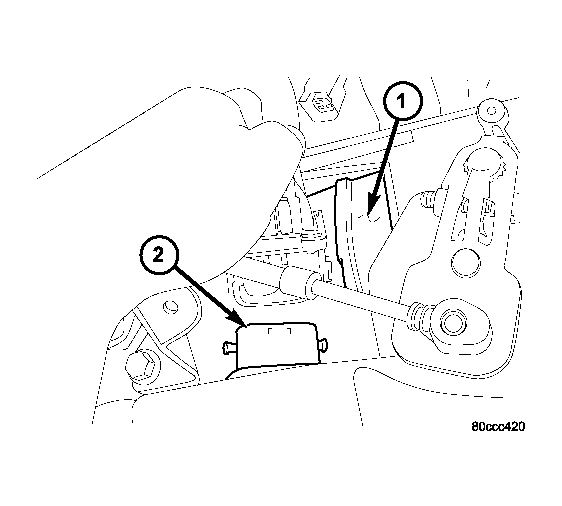

    Fig 9: Locating Transmission Solenoid/TRS Assembly
    GC0005199Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - TRANSMISSION SOLENOID/TRS ASSEMBLY
  27. Connect wires to the transmission solenoid/TRS assembly (2). See Fig 9. Be sure transmission harnesses are properly routed.

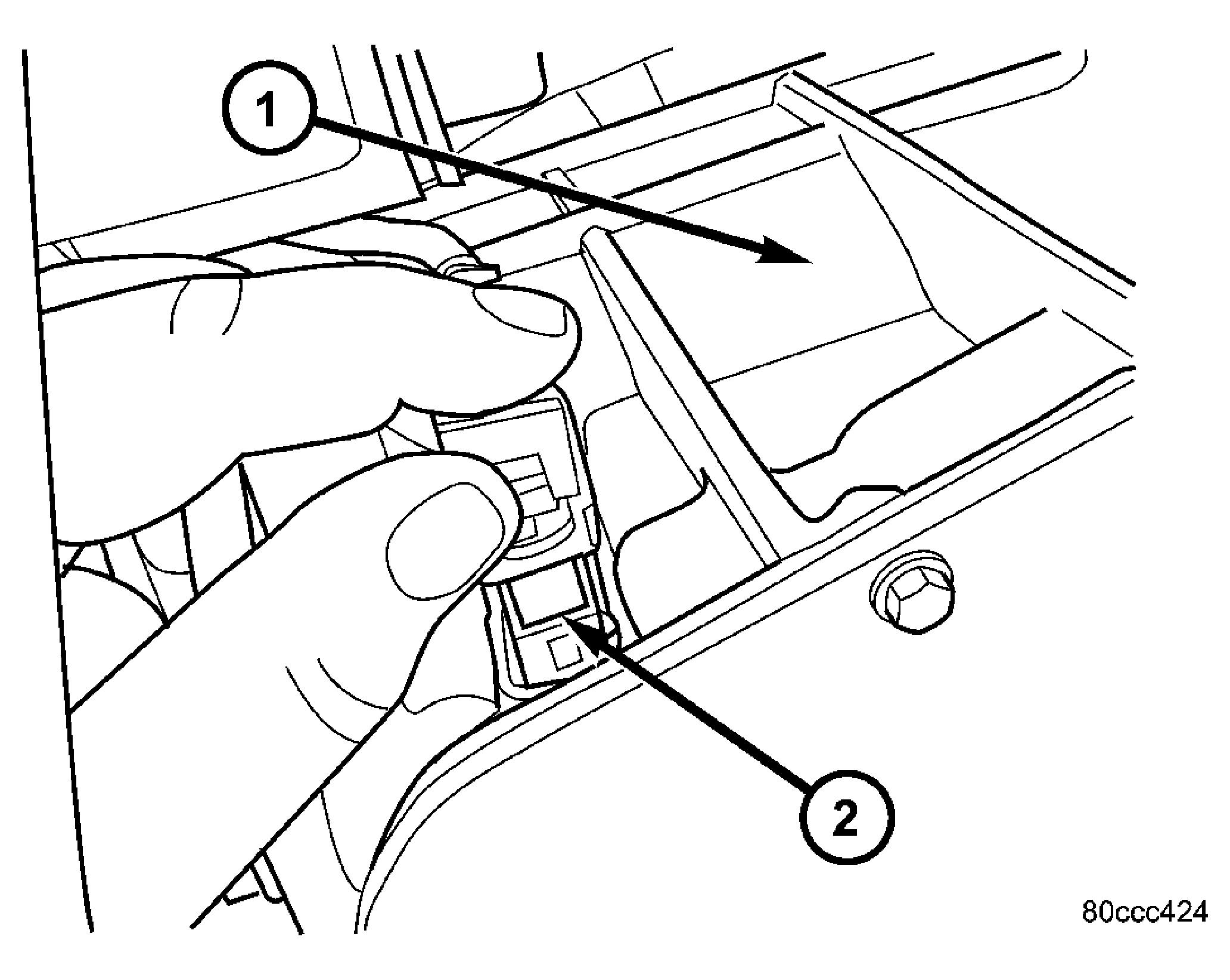

    Fig 10: Locating Line Pressure Sensor
    GC0005200Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - LINE PRESSURE SENSOR
  28. Connect wires to the line pressure sensor (2). See Fig 10. Be sure transmission harnesses are properly routed.

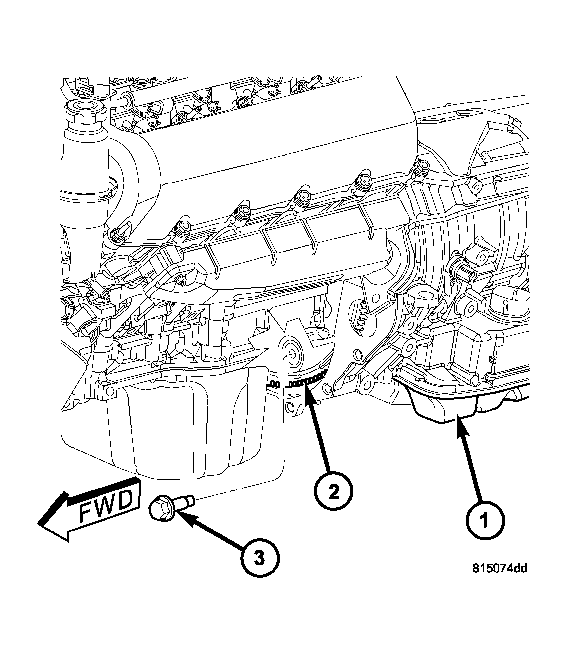

    Fig 11: Removing Torque Converter Bolts
    GC0027353Courtesy of CHRYSLER LLC
    1 - TRANSMISSION
    2 - DRIVEPLATE
    3 - TORQUE CONVERTER BOLTS
    CAUTION: It is essential that correct length bolts be used to attach the converter to the driveplate. Bolts that are too long will damage the clutch surface inside the converter.
  29. Install all torque converter-to-driveplate bolts (3) by hand. See Fig 11.
  30. Verify that the torque converter is pulled flush to the driveplate. Tighten bolts to 31 N.m (270 in. lbs.).
    Fig 12: Structural Dust Cover
    GC0027258Courtesy of CHRYSLER LLC
    1 - STRUCTURAL COVER
    2 - BOLTS
  31. Install the structural cover (1) (5.7L shown). See Fig 12. Refer to INSTALLATION .
    Fig 13: Removing/Installing Transfer Case
    GC0027348Courtesy of CHRYSLER LLC
    1 - NV140 TRANSFER CASE
    2 - NUTS
    3 - TRANSMISSION
    4 - TRANSFER CASE VENT TUBE
  32. If necessary, install the NV140 transfer case (1). See Fig 13. Refer to INSTALLATION .
    Fig 14: Removing/Installing NV245 Transfer Case
    GC0027349Courtesy of CHRYSLER LLC
    1 - NV245 TRANSFER CASE
    2 - NUTS
    3 - TRANSMISSION
    4 - TRANSFER CASE VENT TUBE
  33. If necessary, install the NV245 transfer case (1). See Fig 14. Refer to INSTALLATION .
  34. Install starter motor. Refer to INSTALLATION .
  35. Install exhaust components.
  36. Align and connect propeller shaft(s). Refer to INSTALLATION .
  37. Adjust gearshift cable if necessary. See ADJUSTMENTS .
  38. Lower vehicle.
  39. Fill transmission with appropriate fluid. Refer to DESCRIPTION .
