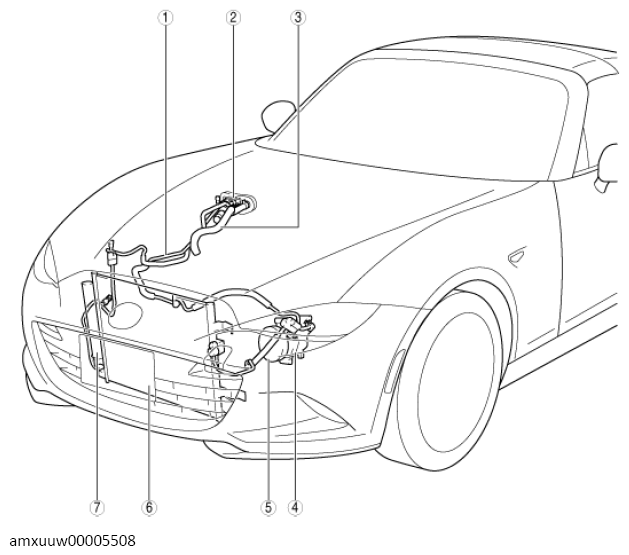

| 1 |
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION .) |
| 2 |
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION .) |
| 3 |
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION .) |
| 4 |
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION .) |
| 5 |
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY .)
(See MAGNETIC CLUTCH ADJUSTMENT .)
(See MAGNETIC CLUTCH INSPECTION .) |
| 6 |
Condenser
(See CONDENSER REMOVAL/INSTALLATION .)
(See CONDENSER INSPECTION .) |
| 7 |
Receiver/Drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION .) |
| 8 |
Cooling duct
(See COOLING DUCT REMOVAL/INSTALLATION .) |

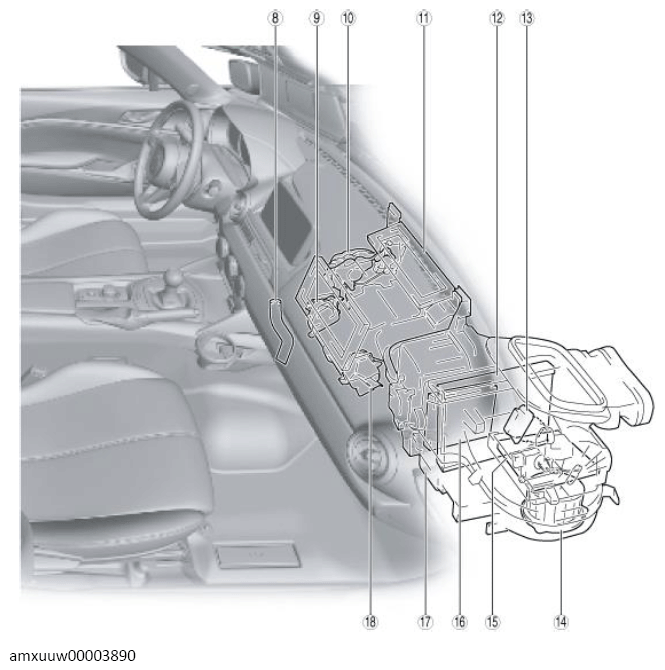

| 9 |
Heat duct (LH)
(See HEAT DUCT REMOVAL/INSTALLATION .) |
| 10 |
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION .) |
| 11 |
Air dist unit
(See AIR DIST UNIT REMOVAL/INSTALLATION .)
(See AIR DIST UNIT DISASSEMBLY/ASSEMBLY .) |
| 12 |
Evaporator
(See EVAPORATOR INSPECTION .) |
| 13 |
Blower fan controller
(See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION .)
(See BLOWER FAN CONTROLLER INSPECTION .) |
| 14 |
Blower motor
(See BLOWER MOTOR REMOVAL/INSTALLATION .)
(See BLOWER MOTOR INSPECTION .) |
| 15 |
Dust filter
(See DUST FILTER REMOVAL/INSTALLATION .)
(See DUST FILTER INSPECTION .) |
| 16 |
Heater core
(See HEATER CORE INSPECTION .) |
| 17 |
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION .)
(See A/C UNIT DISASSEMBLY/ASSEMBLY .) |
| 18 |
Heat duct (RH)
(See HEAT DUCT REMOVAL/INSTALLATION .) |
