A/C Unit Disassembly/Assembly

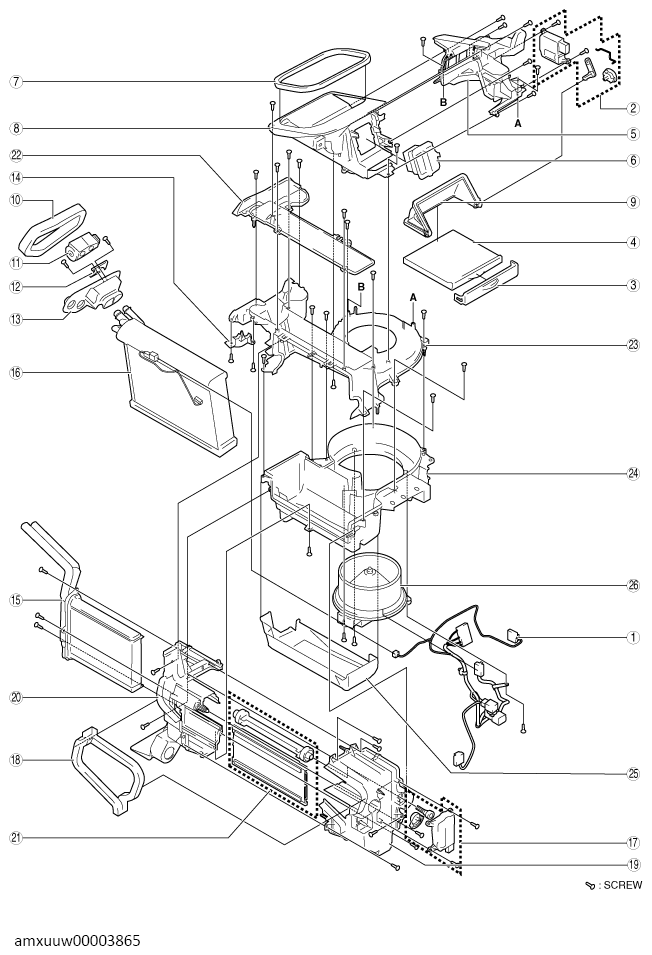

1. Disassemble in the order indicated in the table.

   Courtesy of MAZDA MOTORS CORP.

   x: Applicable -: Not applicable

   Step	Part name	Disassembly/assembly of main parts
   		Heater core	Evaporator
   1	Harness	-	x
   2	Air intake actuator	-	x
   3	Dust filter cover	-	x
   4	Dust filter	-	x
   5	A/C case A	-	x
   6	Blower fan controller	-	x
   7	Polyurethane foam B	-	x
   8	Air intake box	-	x
   9	Air intake door	-	x
   10	Polyurethane foam	C	xxx
   11	Expansion valve	x	x
   12	Plate	x	x
   13	Seal	x	x
   14	Cover	x	x
   15	Heater core	x	-
   16	Evaporator	-	x
   17	Air mix actuator	-	-
   18	Polyurethane foam D	-	-
   19	A/C case D	-	-
   20	A/C case F	-	-
   21	Air mix damper	-	-
   22	A/C case E	-	x
   23	A/C case B	-	-
   24	A/C case C	-	-
   25	Polyurethane foam A	-	-
   26	Blower motor	-	-

2. Assemble in the reverse order of disassembly.
3. When replacing the evaporator, add compressor oil to the refrigerant cycle.

Supplemental compressor oil amount (approx. quantity)

40 ml {40 cc, 1.4 US fl oz}
