Condenser Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Discharge the refrigerant from the system. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)
  3. Remove the following parts:
    1. Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
    2. Air cleaner, air hose and resonance chamber No. 1 as a single unit (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
    3. Battery and battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
    4. Front under cover (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
    5. Front tire (See GENERAL PROCEDURES (SUSPENSION) .)
    6. Front mudguard No. 1 (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
    7. Front splash shield No. 2 (See FRONT SPLASH SHIELD No. 2 REMOVAL/INSTALLATION .)
  4. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0] .)
  5. Remove the bolt.

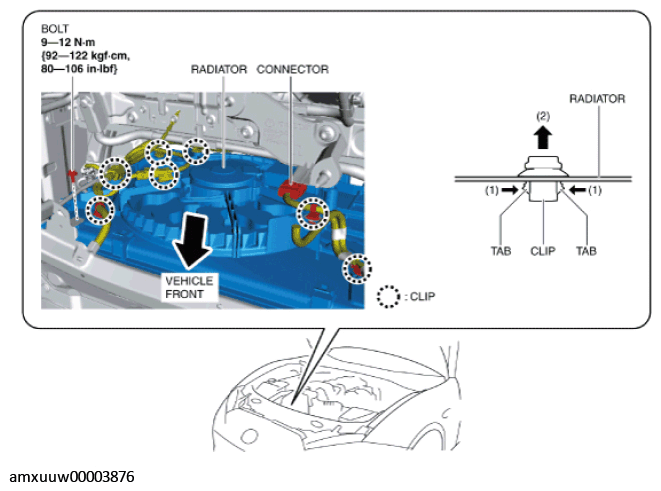

    Fig 1: Radiator, Connector, Clips And Bolt With Torque Specification
    G11276213Courtesy of MAZDA MOTORS CORP.
  6. While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the clip tabs from the radiator.
  7. Remove the clips.
  8. Disconnect the connector.
  9. Remove the bolts.

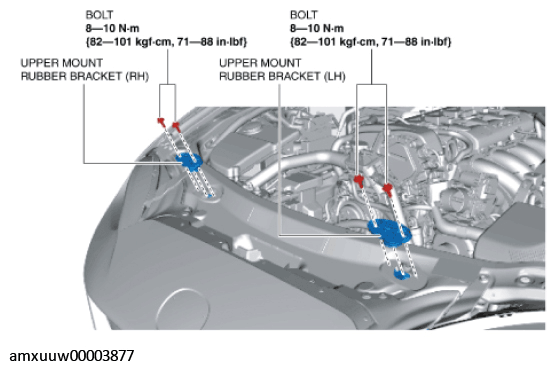

    Fig 2: Upper Mount Rubber Brackets (LH, RH) Bolts With Torque Specification
    G11276214Courtesy of MAZDA MOTORS CORP.
  10. Remove the upper mount rubber brackets.

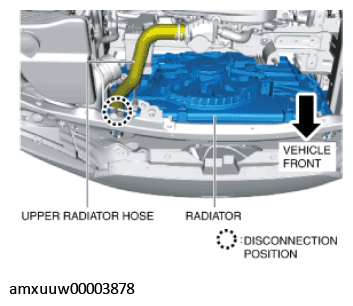

  11. Disconnect the upper radiator hose.
    G11276215Courtesy of MAZDA MOTORS CORP.

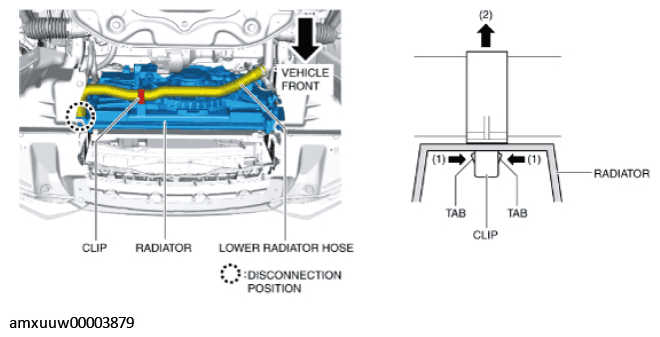

  12. While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the clip tabs from the radiator.
    G11276216Courtesy of MAZDA MOTORS CORP.
  13. Remove the clip.
  14. Disconnect the lower radiator hose.

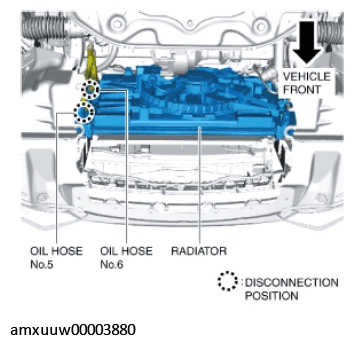

  15. Disconnect the oil hoses No. 5 and No. 6. (AT)
    G11276217Courtesy of MAZDA MOTORS CORP.
  16. Remove the bolt.

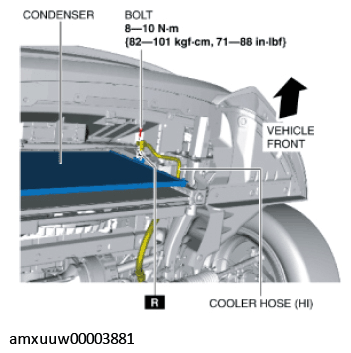

    Fig 3: Condenser, Cooler Hose (HI) And Bolt With Torque Specification
    G11276218Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.
  17. Disconnect the cooler hose (HI).
  18. Remove the bolt.

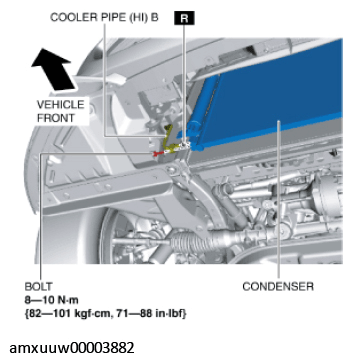

    Fig 4: Condenser, Cooler Pipe (HI) B And Bolt With Torque Specification
    G11276219Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.
  19. Disconnect the cooler pipe (HI) B.
  20. Remove the bolts.

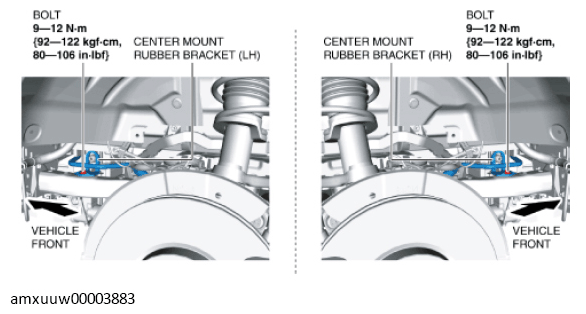

    Fig 5: Center Mount Rubber Brackets (LH, RH) Bolts With Torque Specification
    G11276220Courtesy of MAZDA MOTORS CORP.
  21. Remove the center mount rubber brackets.
  22. Remove the bolts.

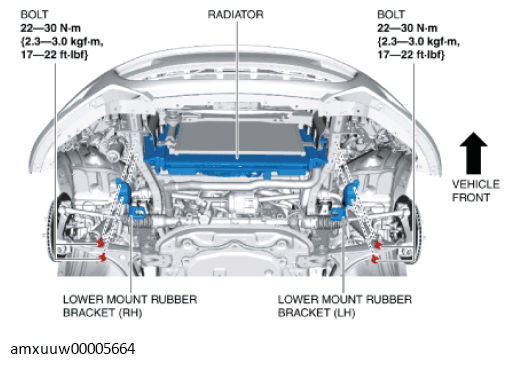

    Fig 6: Radiator, Lower Mount Rubber Brackets (LH, RH) And Bolts With Torque Specification
    G11276221Courtesy of MAZDA MOTORS CORP.
  23. Remove the lower mount rubber brackets.
    CAUTION:
    • The radiator, cooling fan component, and condenser are very heavy. When loading/unloading these parts to/from the vehicle, always perform with at least one other person.

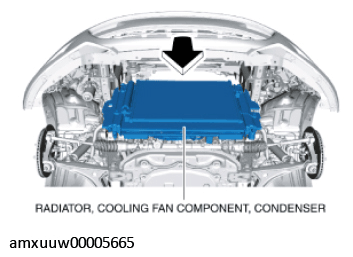

  24. Remove the radiator, cooling fan component, and condenser as a single unit.
    G11276222Courtesy of MAZDA MOTORS CORP.
  25. Remove the bolts.

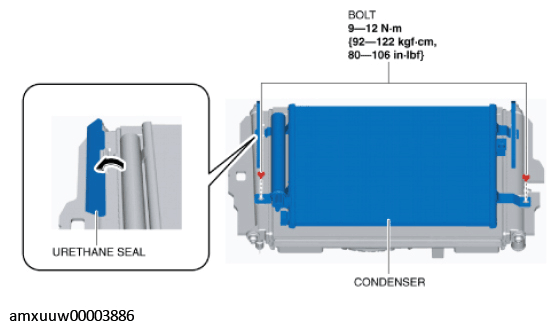

    Fig 7: Condenser, Urethane Seals And Bolts With Torque Specification
    G11276223Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • The tab connection parts of the condenser and radiator are covered with urethane seals. Therefore, the urethane seals may be damaged if the condenser is removed/installed without folding the urethane seals. Fold the urethane seals when removing/installing the condenser.

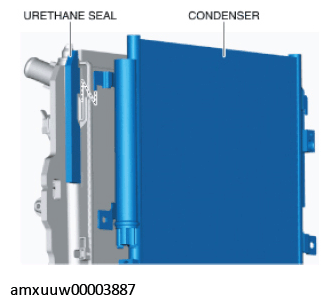

  26. Fold the urethane seal in the direction of the arrow shown in the figure.
  27. Remove the condenser.
    G11276224Courtesy of MAZDA MOTORS CORP.
  28. Install in the reverse order of removal.
  29. When replacing the condenser, add compressor oil to the refrigerant cycle.

    Supplemental compressor oil amount (approx. quantity)

    24 ml {24 cc, 0.81 US fl oz}

  30. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0] .)
  31. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
