Air Dist Unit Disassembly/Assembly

CAUTION:
  • If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.
  1. Disassemble in the order indicated in the table.

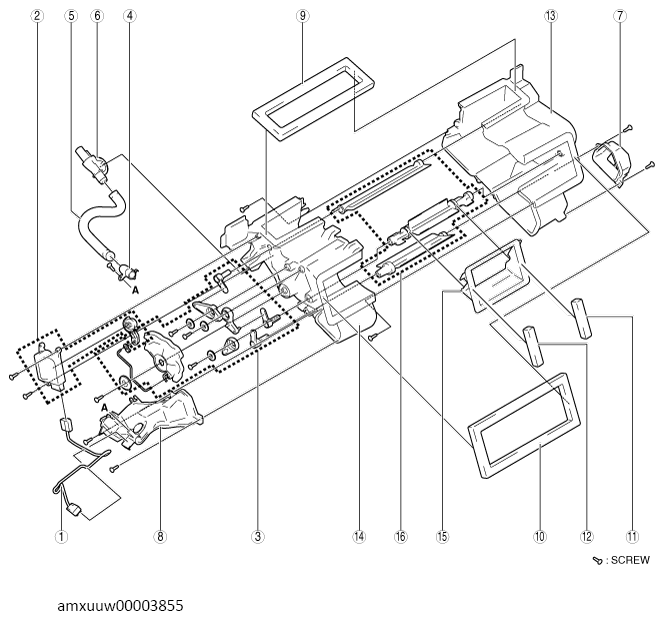

    G13489766Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
