Heater Hose Removal/Installation
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0] .)

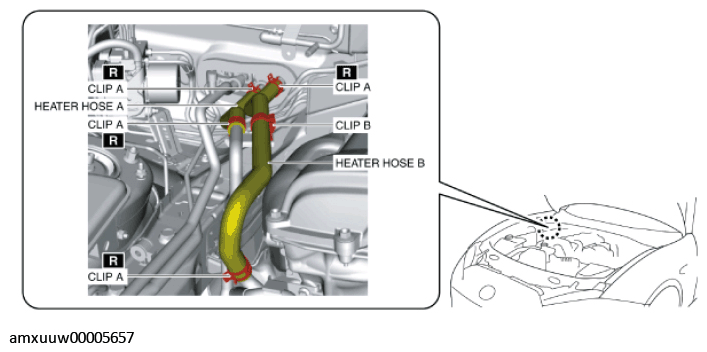

- Remove clips A.
- While pressing clip B tabs in the direction of arrows (1) shown in the figure, press clip B in the direction of arrow (2) to detach clip B tabs from the bracket. (Heater hose B)
- Remove the heater hose A.
- Remove the heater hose B.
- Install in the reverse order of removal.
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0] .)
