Without Center Display

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

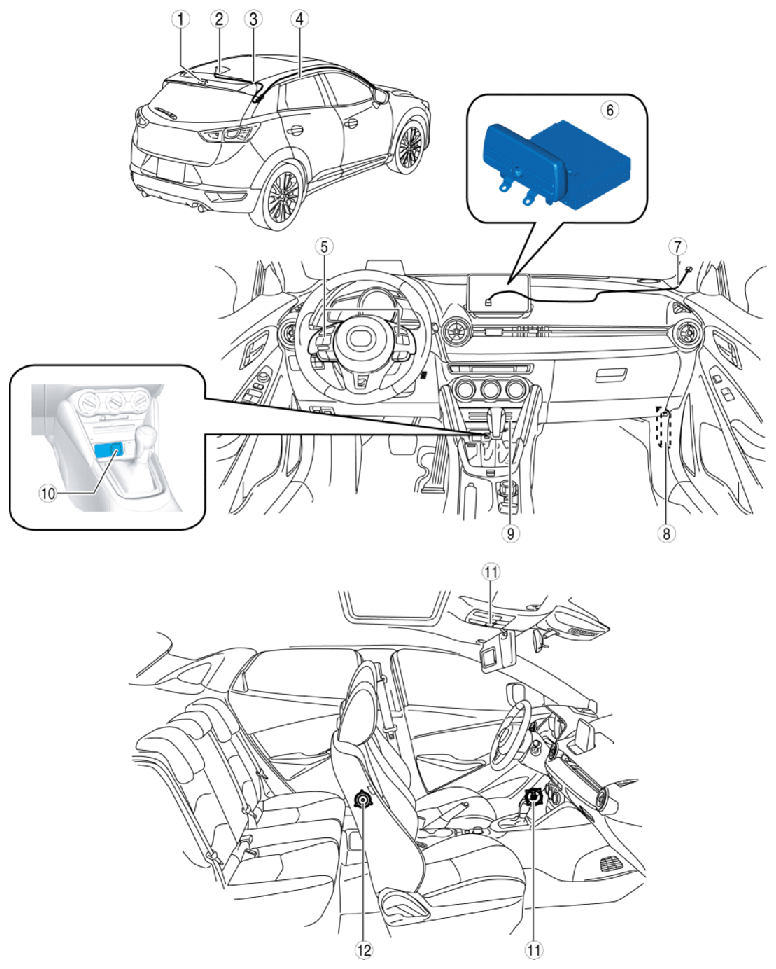

Fig 1: Entertainment (Without Center Display) Components Location

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
2	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
3	Antenna feeder No. 3 (See ANTENNA FEEDER No. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 3 INSPECTION .)
4	Antenna feeder No. 2 (See ANTENNA FEEDER No. 2 REMOVAL .) (See ANTENNA FEEDER No. 2 INSTALLATION .) (See ANTENNA FEEDER No. 2 INSPECTION .)
5	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
6	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
7	Antenna feeder No. 1 (See ANTENNA FEEDER No. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 1 INSPECTION .)
8	Bluetooth® unit (with Bluetooth® unit) (See Bluetooth® UNIT REMOVAL/INSTALLATION .) (See Bluetooth® PAIRING PROCEDURE .)
9	CD player (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
10	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT INSPECTION .)
11	Microphone (with Bluetooth® unit) (See MICROPHONE REMOVAL/INSTALLATION .)
12	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
13	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
