Center Roof Antenna Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Rear scuff plate (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
2. Rear seat cushion (Refer to REAR SEAT CUSHION REMOVAL/INSTALLATION .)
3. Rear seat back (Refer to REAR SEAT BACK REMOVAL/INSTALLATION .)
4. Rear package tray (Refer to REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
5. Trunk board (with trunk board) (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
6. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
7. Bass-box (with Bose ®) (Refer to BASS-BOX REMOVAL/INSTALLATION .)
8. Trunk box (Refer to TRUNK BOX REMOVAL/INSTALLATION .)
9. Trunk end trim (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
10. Trunk side trim (Refer to TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
11. C-pillar trim (Refer to C-PILLAR TRIM REMOVAL/INSTALLATION .)
12. Rear assist handle (Refer to ASSIST HANDLE REMOVAL/INSTALLATION .)

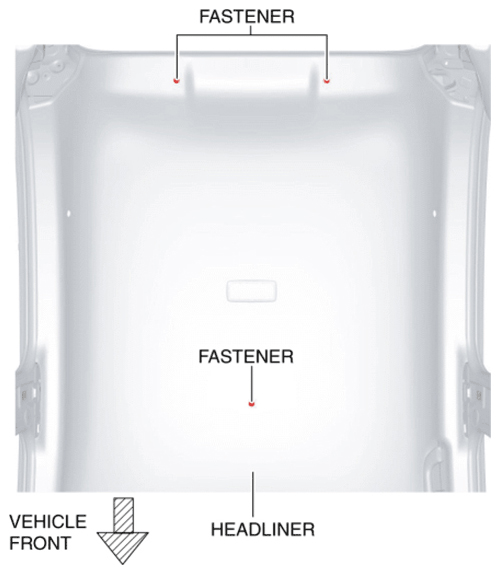

Remove the fasteners.

Fig 1: Identifying Headliner Fasteners
Courtesy of MAZDA
Peel back the seaming welt of the rear door and the liftgate.
Partially peel back the headliner.
CAUTION:
- If the headliner is peeled back excessively, the headliner could become creased. Be careful not to peel back the headliner excessively.

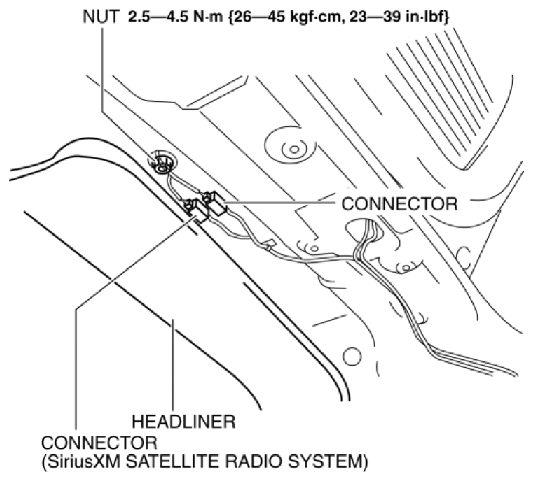

Disconnect the connectors.

Fig 2: Disconnecting Connectors
Courtesy of MAZDA
Remove the nut.

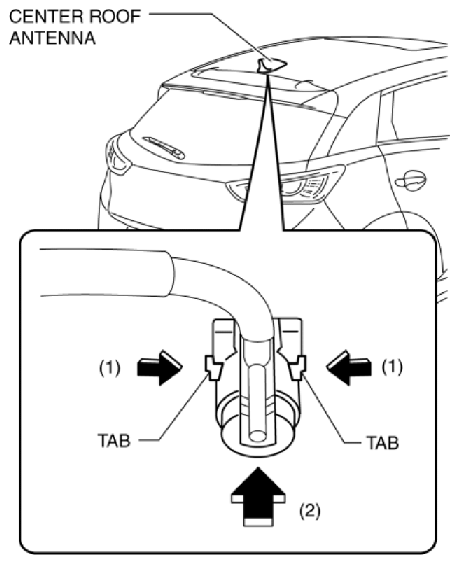

While pressing the center roof antenna tabs in the direction of arrows (1) shown in the figure, press the center roof antenna in the direction of arrow (2) to detach the center roof antenna tabs from the body.

Fig 3: Detaching Center Roof Antenna Tabs From Body
Courtesy of MAZDA
Remove the center roof antenna.
Install in the reverse order of removal.
