Trunk End Trim Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Rear package tray (Refer to REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    2. Trunk board (with trunk board) (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    4. Bass-box (with Bose ®) (Refer to BASS-BOX REMOVAL/INSTALLATION .)
    5. Trunk box (Refer to TRUNK BOX REMOVAL/INSTALLATION .)
  3. Partially peel back the weatherstrip.

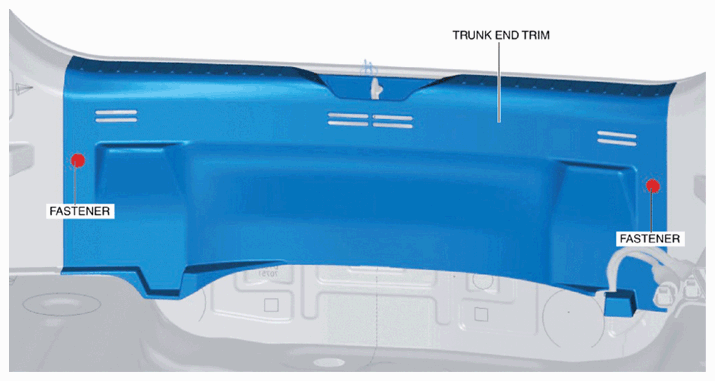

  4. Remove the fasteners.
    Fig 1: Identifying Trunk End Trim And Fasteners
    G10914803Courtesy of ABLE BODY CORP.

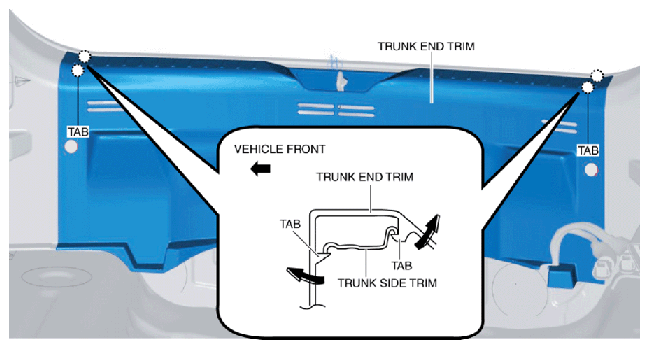

  5. Move the trunk end trim in the directions of the arrows shown in the figure and detach the trunk end trim tabs from the trunk side trim.
    Fig 2: Detaching Trunk End Trim Tabs From Trunk Side Trim
    G10914804Courtesy of ABLE BODY CORP.

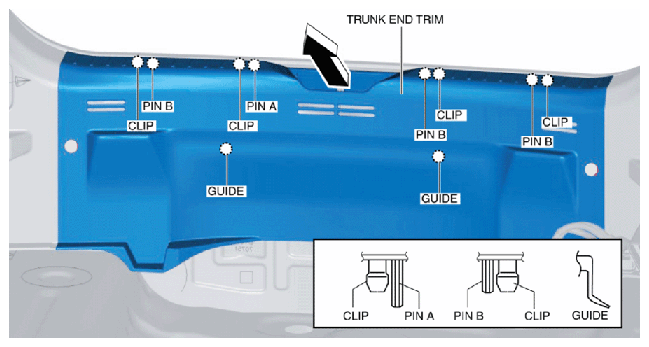

  6. Move the trunk end trim in the direction of the arrow shown in the figure, remove it while detaching clips, pin A, pins B, and the guides.
    Fig 3: Moving Trunk End Trim
    G10914805Courtesy of ABLE BODY CORP.
  7. Install in the reverse order of removal.
