Rear Package Tray Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

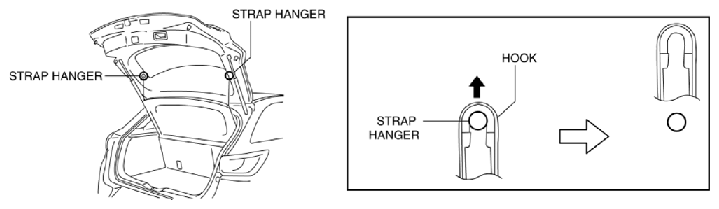

Unhook the hooks from the strap hangers.

Fig 1: Unhooking Hooks From Strap Hangers
Courtesy of ABLE BODY CORP.

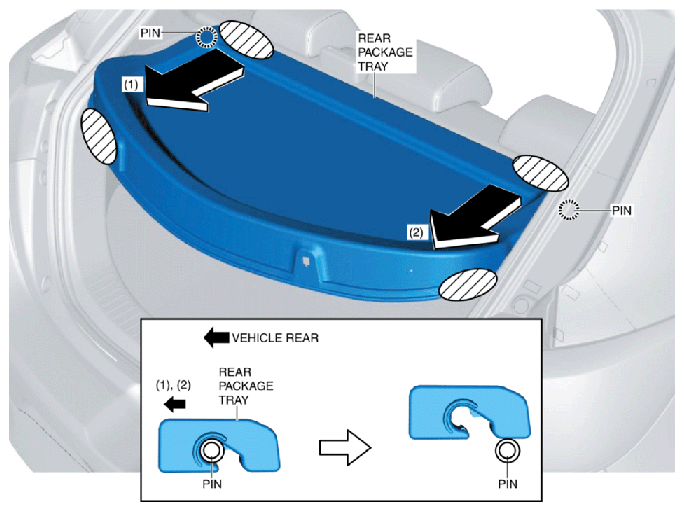

Hold the shaded area shown in the figure, pull the rear package tray in the order of arrows (1) and (2) and remove it from the pins.

Fig 2: Pulling Rear Package Tray
Courtesy of ABLE BODY CORP.
Install in the reverse order of removal.
