Cd Player Removal

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Shift the selector lever from the P position to the D position.
To prevent scratches or damage, affix protective tape to the position shown in the figure of the console side panel.

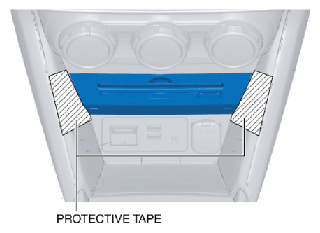

Fig 1: Identifying Protective Tape
Courtesy of MAZDA
Insert the SSTs (removing tool) into the positions shown in the figure and disengage the CD player from the front console.

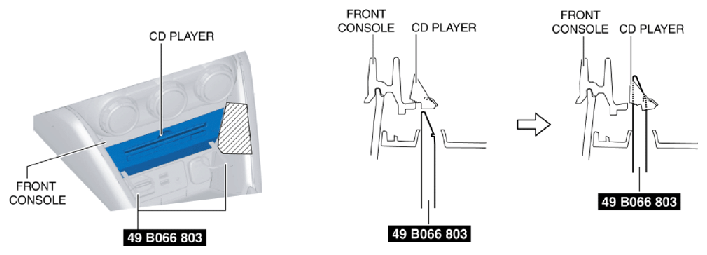

Fig 2: Disengaging CD Player From Front Console
Courtesy of MAZDA
Pull the SSTs (removing tool) in the direction shown in the figure and remove the CD player from the front console.

Fig 3: Removing CD Player From Front Console
Courtesy of MAZDA
Disconnect the connector.

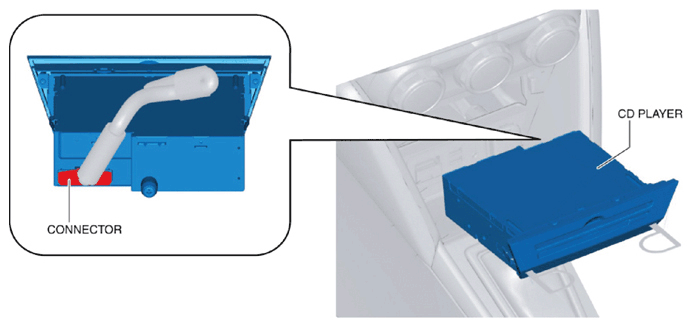

Fig 4: Disconnecting Connector
Courtesy of MAZDA
Remove the CD player.
While pulling the SSTs (removing tool) in the direction of arrow (2) shown in the figure, press the CD player spring in the direction of arrow (1) shown in the figure.

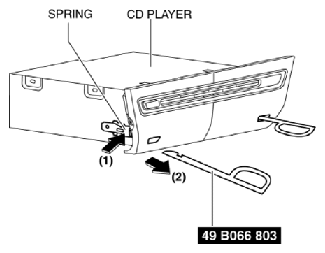

Fig 5: Pressing CD Player Spring

Courtesy of MAZDA
