Front Door Speaker Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the procedure is performed while holding the front door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Power window main switch (driver's side) (Refer to POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    2. Power window subswitch (passenger's side) (Refer to POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3. Front door trim (Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

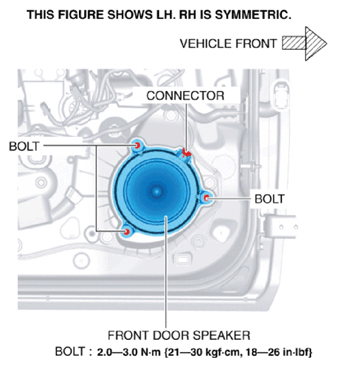

    Fig 1: Disconnecting Front Door Speaker Connector
    G10915138Courtesy of MAZDA
  4. Remove the bolts.
  5. Pull the front door speaker in the direction of arrow (1) shown in the figure and remove it while detaching the pins.

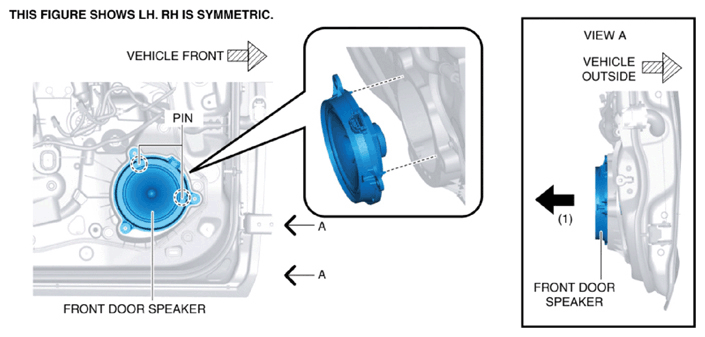

    Fig 2: Pulling Front Door Speaker
    G10915139Courtesy of MAZDA
  6. Install in the reverse order of removal.
