Auxiliary Jack/USB Port Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
- Shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)
- Upper panel (Refer to UPPER PANEL REMOVAL/INSTALLATION .)
- Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
- Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
- Front console box (Refer to FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
- CD player (Refer to CD PLAYER REMOVAL .) (Refer to CD PLAYER INSTALLATION .)
- Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)

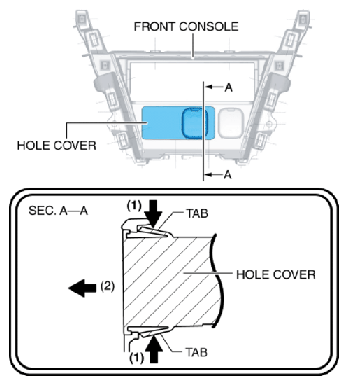

- While pressing the hole cover tabs in the direction of arrows (1) shown in the figure, press the hole cover in the direction of arrow (2) and detach the hole cover tabs from the front console.
- Remove the hole cover component.

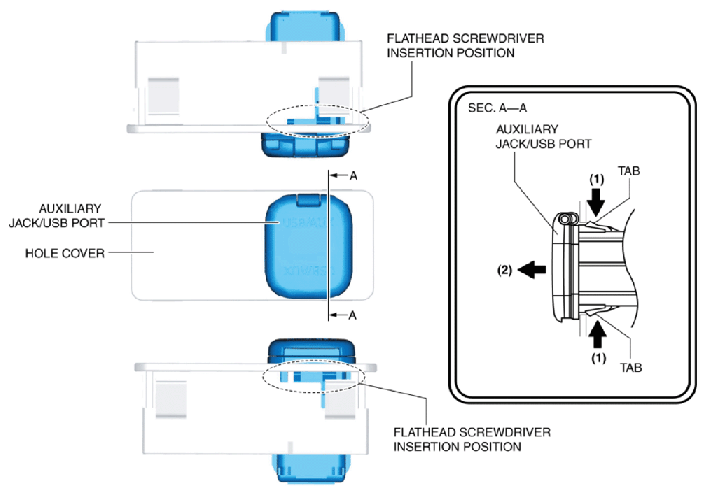

- While pressing the auxiliary jack/USB port tabs in the direction of arrows (1) shown in the figure using the flathead screwdriver wrapped in protective tape, move the auxiliary jack/USB port in the direction of arrow (2) and detach the auxiliary jack/USB port tabs from the hole cover.
- Remove the auxiliary jack/USB port.
- Install in the reverse order of removal.
