Upper Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
Remove the shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)

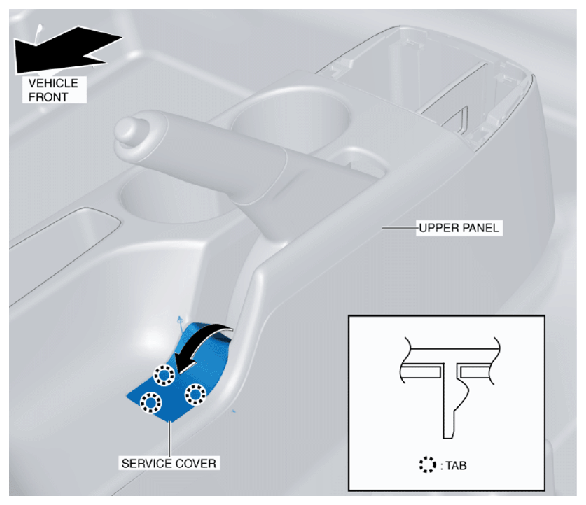

Remove the service cover.

Fig 1: Identifying Service Cover, Upper Panel And Tabs
Courtesy of ABLE BODY CORP.

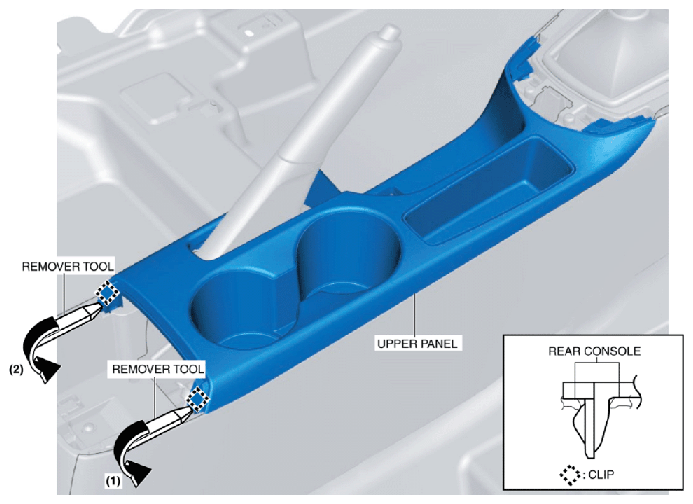

Insert a remover tool into the positions shown in the figure and move it in the directions of arrows (1) to detach the clips from the rear console.

Fig 2: Detaching Clips From Rear Console
Courtesy of ABLE BODY CORP.
Insert a remover tool into the positions shown in the figure and move it in the directions of arrows (2) to detach the clips from the rear console.

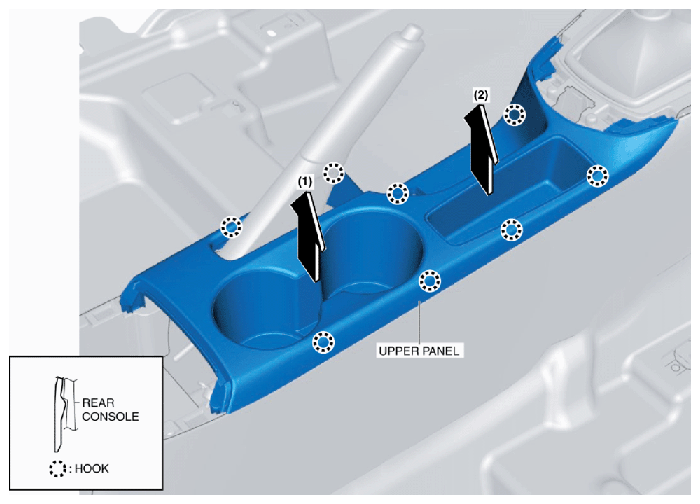

Move the upper panel in the order of arrows (1) and (2) shown in the figure and detach the hooks from the rear console.

Fig 3: Moving Upper Panel
Courtesy of ABLE BODY CORP.

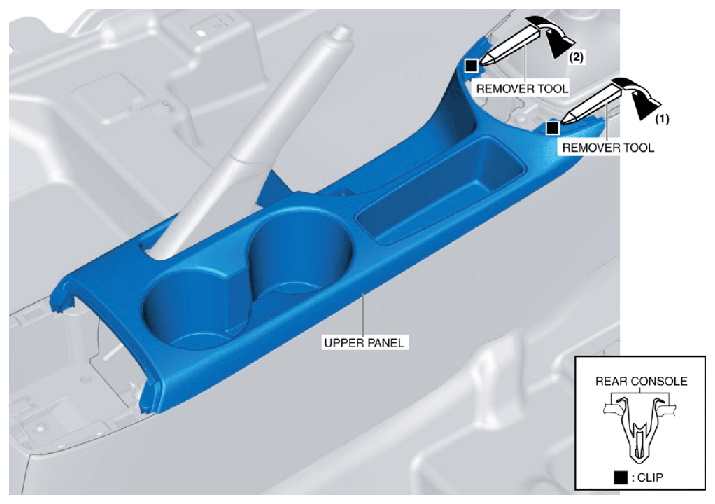

Insert the remover tool into the positions shown in the figure and move it in the direction of arrow (1) to detach the clips from the rear console.

Fig 4: Detaching Clips From Rear Console
Courtesy of ABLE BODY CORP.
Insert the remover tool into the positions shown in the figure and move it in the direction of arrow (2) to detach the clips from the rear console.

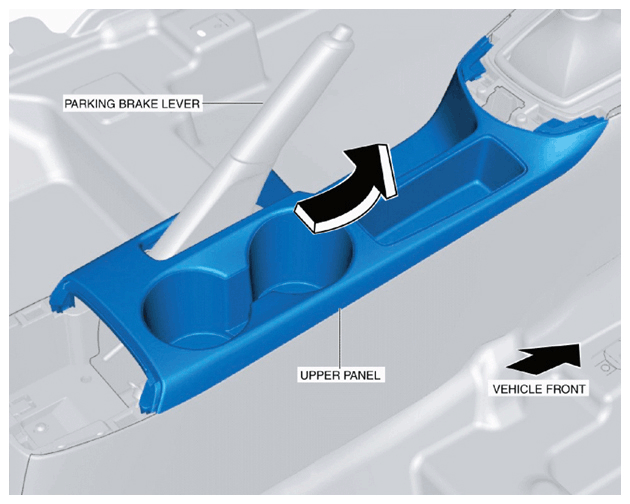

Move the upper panel in the direction of the arrow shown in the figure, remove the upper panel while avoiding the parking brake lever.

Fig 5: Removing Upper Panel
Courtesy of ABLE BODY CORP.
Remove the wiring harness clips.
Disconnect the commander switch connector. (With center display)
Remove the commander switch when replacing the upper panel. (With center display) (Refer to COMMANDER SWITCH REMOVAL/INSTALLATION .)
Install in the reverse order of removal.
