Front Console Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)
    3. Upper panel (Refer to UPPER PANEL REMOVAL/INSTALLATION .)
    4. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    5. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    7. Front console box (Refer to FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    8. CD player (Refer to CD PLAYER REMOVAL .) (Refer to CD PLAYER INSTALLATION .)
  3. Remove the screws.

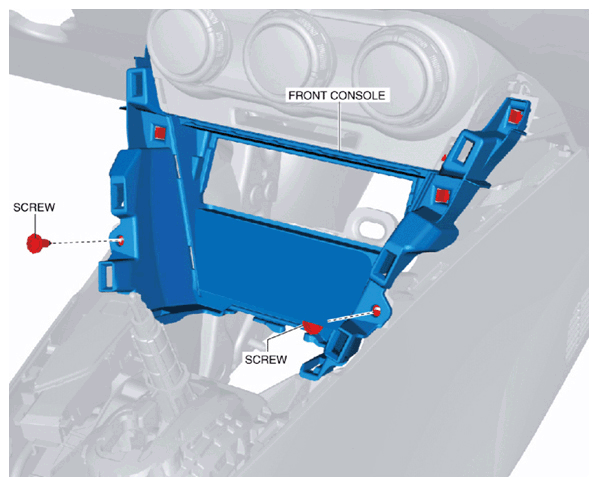

    Fig 1: Identifying Front Console And Screws
    G10914741Courtesy of ABLE BODY CORP.
  4. Remove the front console in the direction of arrow shown in the figure while detaching the clips.

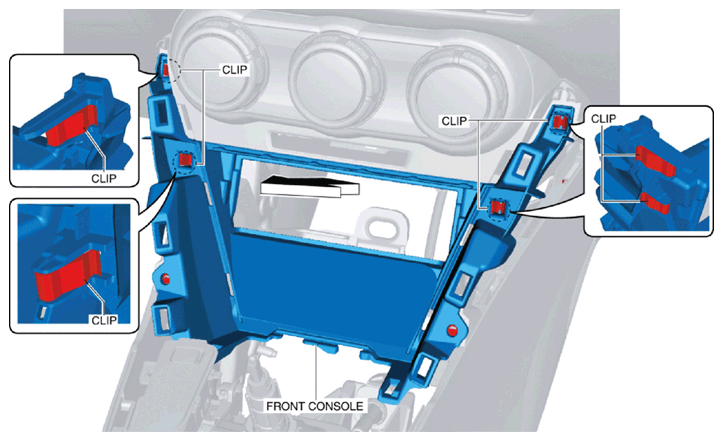

    Fig 2: Removing Front Console
    G10914742Courtesy of ABLE BODY CORP.
  5. Disconnect the auxiliary jack/USB port/SD card slot hub connector. (With center display)
  6. Disconnect the connector of the auxiliary jack/USB port terminal. (Without center display)
  7. Disconnect the accessory socket connector.
  8. Install in the reverse order of removal.
