Interior Trim Location Index

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

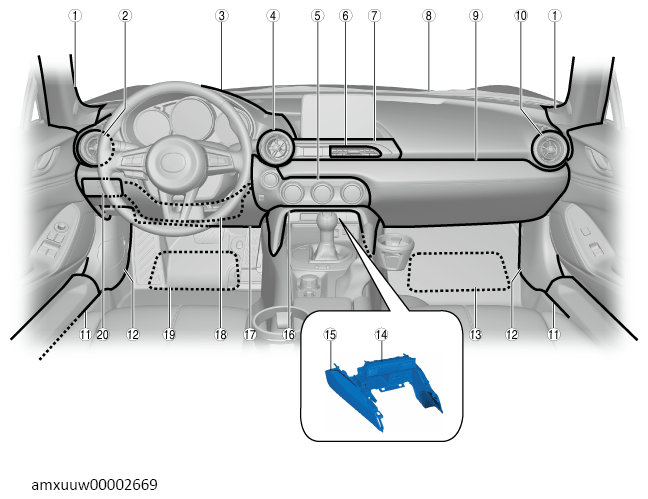

G13491295Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 A-pillar trim
(See A-PILLAR TRIM REMOVAL/INSTALLATION .)
2 Side ventilator grille No.1
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
3 Meter hood
(See METER HOOD REMOVAL/INSTALLATION .)
(See METER HOOD DISASSEMBLY/ASSEMBLY .)
4 Center ventilator grille No.2
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
5 Center panel No.1
(See CENTER PANEL No. 1 REMOVAL/INSTALLATION .)
6 Center ventilator grille No.1
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
7 Center panel No.2
(See CENTER PANEL No. 2 REMOVAL/INSTALLATION .)
(See CENTER PANEL No. 2 DISASSEMBLY/ASSEMBLY .)
8 Dashboard
(See DASHBOARD REMOVAL .)
(See DASHBOARD INSTALLATION .)
(See DASHBOARD DISASSEMBLY/ASSEMBLY .)
9 Passenger-side lower panel
(See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
10 Side ventilator grille No.2
(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
11 Scuff plate
(See SCUFF PLATE REMOVAL/INSTALLATION .)
12 Front side trim
(See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
13 Foot support
(See FOOT SUPPORT REMOVAL/INSTALLATION .)
14 Front console
(See FRONT CONSOLE REMOVAL/INSTALLATION .)
15 Side wall
(See SIDE WALL REMOVAL/INSTALLATION .)
16 Front console panel
(See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
17 Driver-side lower panel
(See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
18 Knee bolster (with knee bolster)
(See KNEE BOLSTER REMOVAL/INSTALLATION .)
19 Heel cushion
(See HEEL CUSHION REMOVAL/INSTALLATION .)
20 Cluster switch
(See CLUSTER SWITCH REMOVAL/INSTALLATION .)

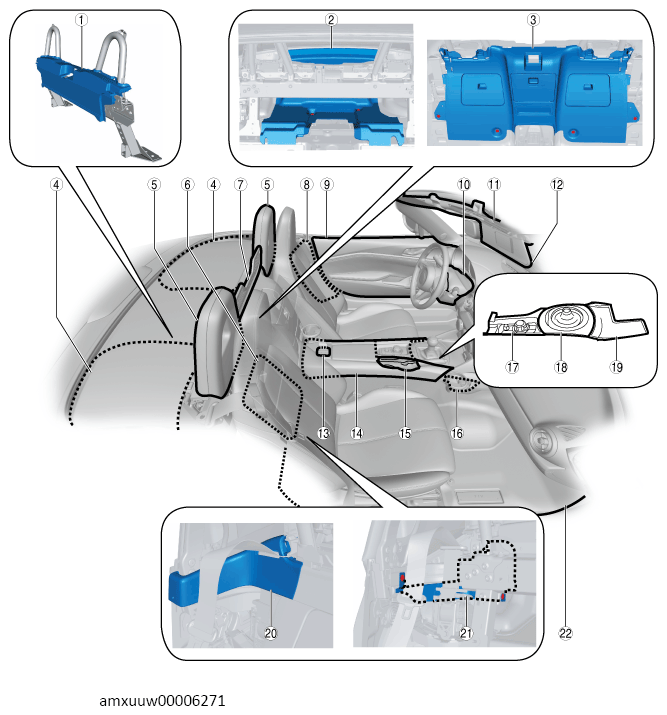

G13491298Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Seat back bar lower garnish
(See SEAT BACK BAR LOWER GARNISH REMOVAL/INSTALLATION .)
2 Rear package trim
(See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
3 Back trim
(See BACK TRIM REMOVAL/INSTALLATION .)
(See BACK TRIM DISASSEMBLY/ASSEMBLY .)
4 Side shelf
(See SIDE SHELF REMOVAL/INSTALLATION .)
5 Seat back bar garnish
(See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION .)
6 Floor covering No.2
(See FLOOR COVERING REMOVAL/INSTALLATION .)
7 Wind blocker
(See WIND BLOCKER REMOVAL/INSTALLATION .)
8 Tire house trim
(See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
9 Door trim
(See DOOR TRIM REMOVAL/INSTALLATION .)
(See DOOR TRIM DISASSEMBLY/ASSEMBLY .)
10 Column cover
(See COLUMN COVER REMOVAL/INSTALLATION .)
11 Front header trim
(See FRONT HEADER TRIM REMOVAL/INSTALLATION .)
12 Sunvisor
(See SUNVISOR REMOVAL/INSTALLATION .)
13 Rear cup holder bracket
(See REAR CUP HOLDER BRACKET REMOVAL/INSTALLATION .)
14 Rear console
(See REAR CONSOLE REMOVAL/INSTALLATION .)
(See REAR CONSOLE DISASSEMBLY/ASSEMBLY .)
15 Parking brake lever boot panel
(See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
16 Front cup holder bracket
(See FRONT CUP HOLDER BRACKET REMOVAL/INSTALLATION .)
17 Upper panel
(See UPPER PANEL REMOVAL/INSTALLATION .)
18 Shift panel
(See SHIFT PANEL REMOVAL/INSTALLATION .)
(See SHIFT PANEL DISASSEMBLY/ASSEMBLY .)
19 Console panel
(See CONSOLE PANEL REMOVAL/INSTALLATION .)
20 Quarter trim
(See QUARTER TRIM REMOVAL/INSTALLATION .)
21 Rear side trim
(See REAR SIDE TRIM REMOVAL/INSTALLATION .)
22 Floor covering No.1
(See FLOOR COVERING REMOVAL/INSTALLATION .)

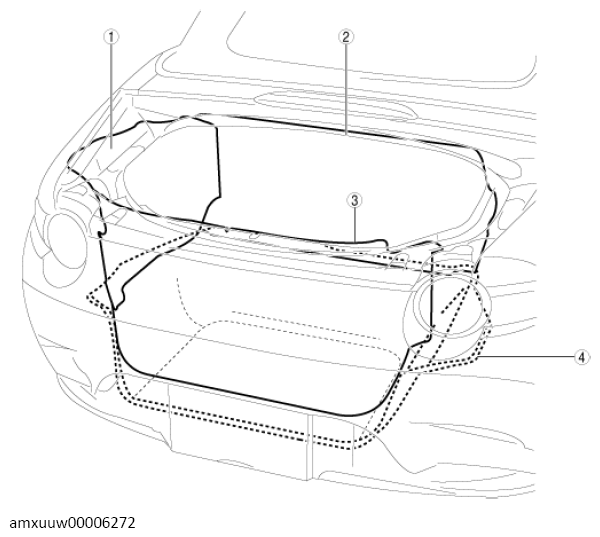

G13491301Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Trunk side trim
(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
2 Partition board
(See PARTITION BOARD REMOVAL/INSTALLATION .)
3 Trunk end trim
(See TRUNK END TRIM REMOVAL/INSTALLATION .)
4 Trunk covering
(See TRUNK COVERING REMOVAL/INSTALLATION .)
