Scuff Plate Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

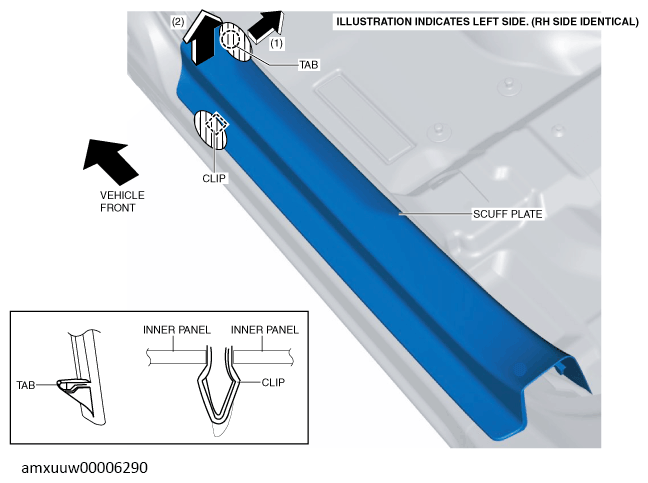

  1. Hold the shaded area shown in the figure, open the scuff plate in the direction of arrow (1), move the scuff plate in the direction of arrow (2) while detaching scuff plate tab A from the front side trim, and detach the scuff plate clips from the inner panel.
    G13491331Courtesy of MAZDA MOTORS CORP.

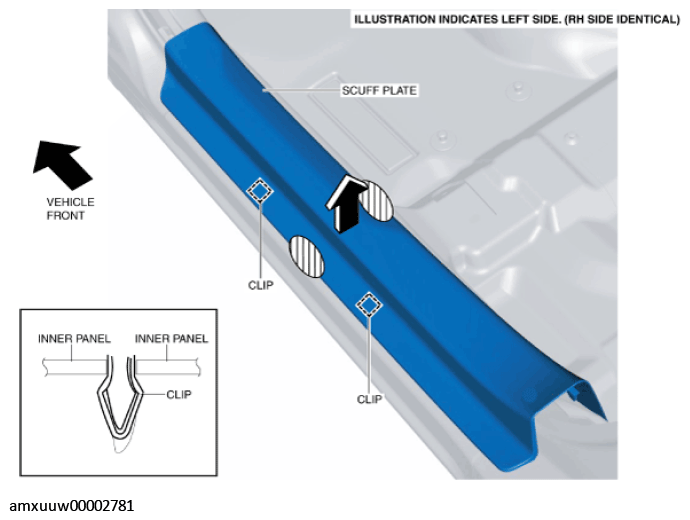

  2. Hold the shaded areas shown in the figure, move the scuff plate in the direction of the arrow, and detach the scuff plate clips from the inner panel.
    G11275315Courtesy of MAZDA MOTORS CORP.

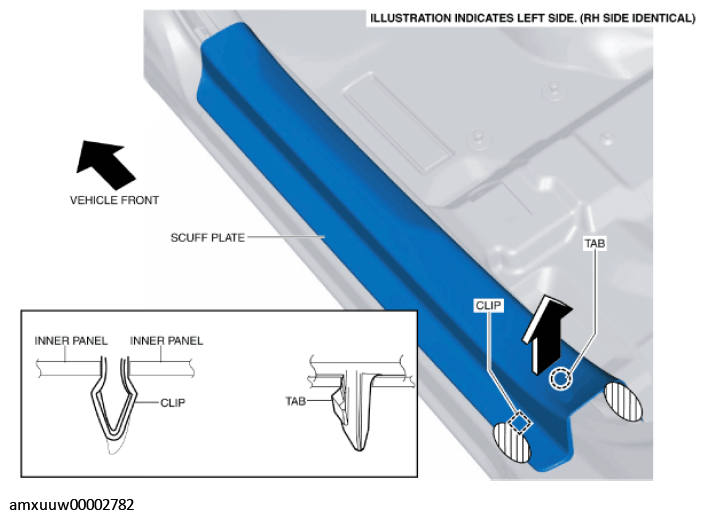

  3. Hold the shaded areas shown in the figure, move the scuff plate in the direction of the arrow, and detach the tab and clip of the scuff plate from the inner panel.
    G11275316Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
