Trunk Side Trim Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Partially peel back the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Partially peel back the partition board. (See PARTITION BOARD REMOVAL/INSTALLATION .)

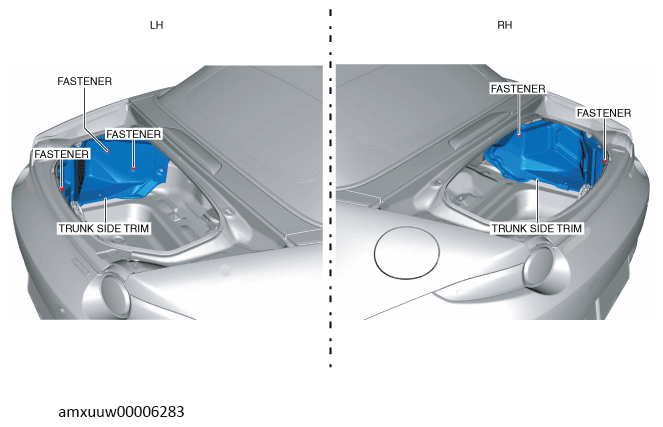

- Remove the fasteners.

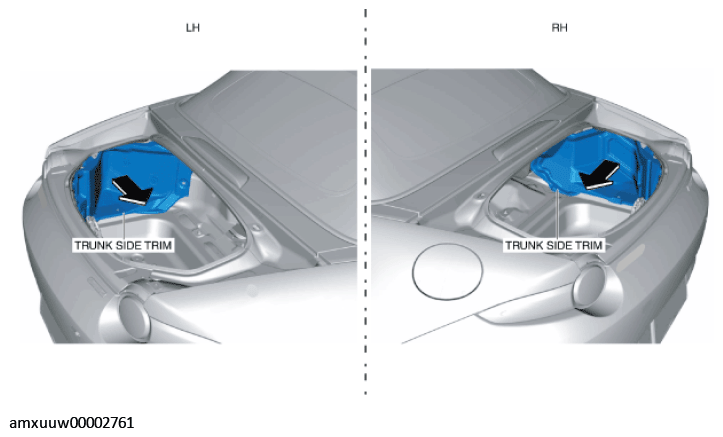

- Remove the trunk side trim in the direction of the arrow shown in the figure.
- Install in the reverse order of removal.
