Trunk End Trim Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

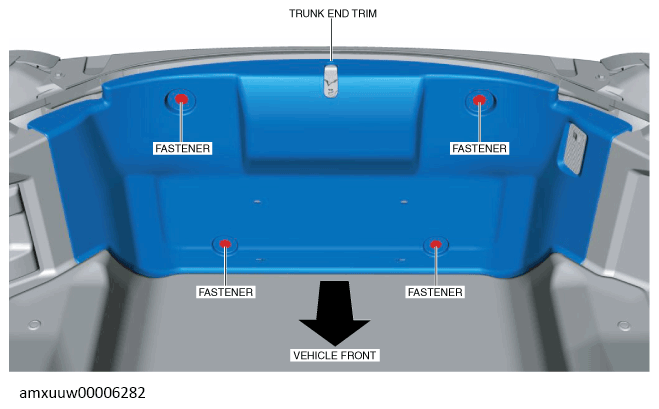

- Remove the fasteners.

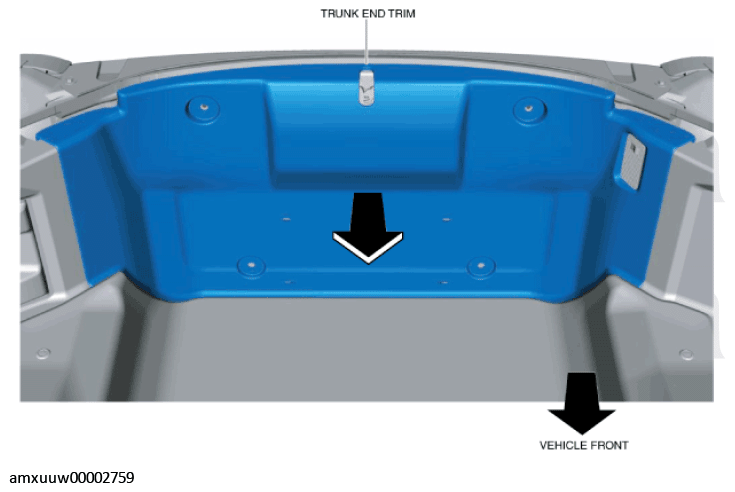

- Remove the trunk end trim in the direction of the arrow shown in the figure.
- Disconnect the trunk compartment light connector and remove the wiring harness.
- Remove the trunk compartment light when replacing the trunk end trim. (See TRUNK COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
- Install in the reverse order of removal.
