Rear Console Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift lever knob (MT)
    3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)

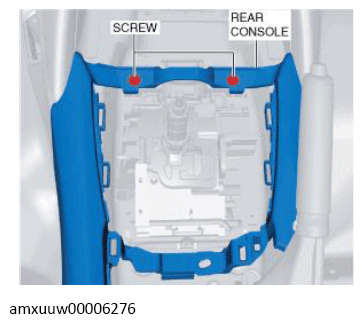

  3. Remove the screws.
    G13491319Courtesy of MAZDA MOTORS CORP.

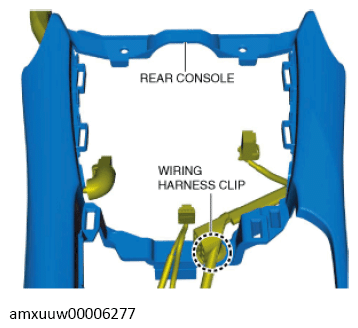

  4. Remove the wiring harness clip.
    G13491320Courtesy of MAZDA MOTORS CORP.

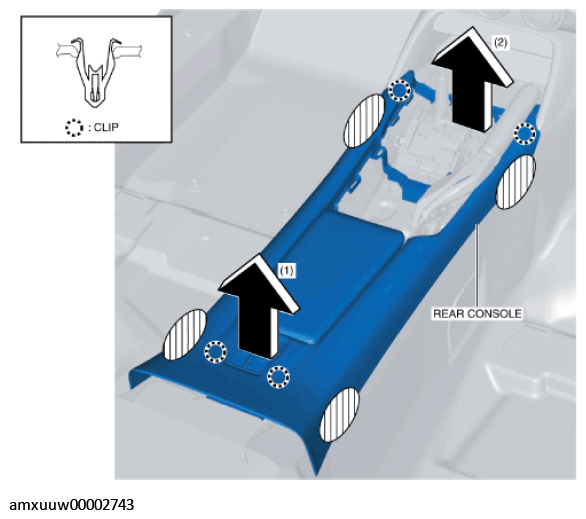

  5. Hold the shaded areas shown in the figure, lift up the rear console in the order of arrow (1) and (2), and detach the clips.
    G11275304Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
