System Tests: Notes
NOTE:

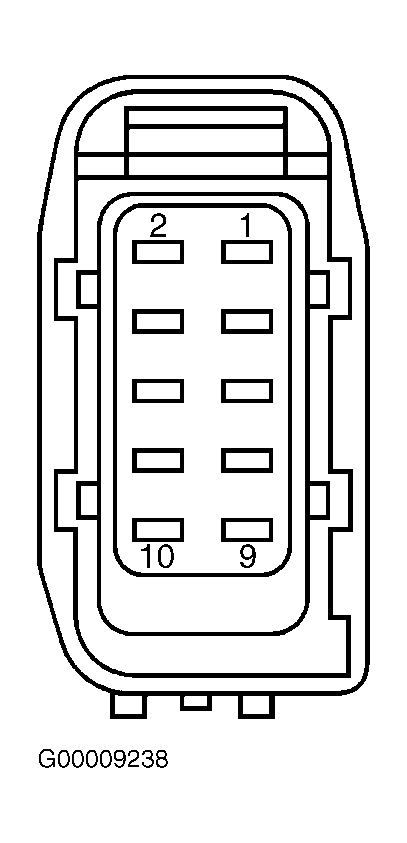

Many steps in the following tests refer to various connectors. These connectors are identified in illustrations. See Figure
- Figure
under CONNECTOR IDENTIFICATION. After repair(s) is made, clear DTCs and recheck system operation.
SYMPTOM INDEX
| Symptom | Perform Test |
|---|---|
| No Communication With Driver Door Module (DDM) | A |
| No Communication With Rear Electronic Module (REM) | B |
| All Door Locks Inoperative Using Driver Door Switch | C |
| All Door Locks Inoperative Using Passenger Door Switch | D |
| All Door Locks Inoperative Using Driver Door Lock Cylinder | E |
| A Single Door Lock Is Inoperative (Driver Door) | F |
| More Than One Door Inoperative (Except Driver Door) | G |
| More Than One Door Inoperative (Passenger Door & Rear Door) | H |
| Single Door Inoperative (Left Rear Door) | I |
| Luggage Compartment Lid Inoperative Using Release Switch | J |
| Luggage Compartment Lid Inoperative Using Release Switch & Remote Transmitter | K |
| Doors Do Not Lock Using Remote Transmitter | L |
| Memory Seat Does Not Operate Properly Using Remote Transmitter | M |
| Autolock Does Not Operate Properly | N |
| Smart Lock Does Not Operate Properly | O |
| Panic Feature Inoperative | P |
| Luggage Compartment Lid Inoperative Using Remote Transmitter | Q |
| No Communication With Front Electronic Module (FEM) | R |
SWITCHED SYSTEM POWER (SSP) RELAY INDEX
| Relay | Fuse | Controlled System(s) |
|---|---|---|
| SSP1 | BJB Fuse No. 430 (30-Amp) | Driver Power Door Lock (FEM), Left & Right High Beam Headlights (FEM), Right Front Park, Turn Signal & Side Marker Light (FEM), Right Low Beam Headlight & Driver Power Mirror |
| SSP2 | BJB Fuse No. 431 (30-Amp) | Left Low Beam Headlight (FEM), Left Front Park, Turn & Sidemarker Lights, Interior Courtesy & Demand Lighting, Windshield Wiper Washer Pump & Switch Illumination Backlighting |
| SSP3 | BJB Fuse No. 424 (30-Amp) | High Mount Brakelight (REM), Right Rear Park & Brakelight (REM), Reverse Lights (REM), Left Rear Turn Signals (REM), Passenger Power Mirror & Trailer Brakelights & Turn Signals (If Equipped) |
| SSP4 | BJB Fuse No. 423 (30-Amp) | Left Park & Brakelights (REM), Right Rear Turn Signals (REM), Passenger Door & Side Locks (REM), License Plate Lights, Trunk Release Solenoid & Switch, Fuel Door Release Solenoid & Switch, Luggage Compartment Light & Trailer Park Lights (If Equipped) |
