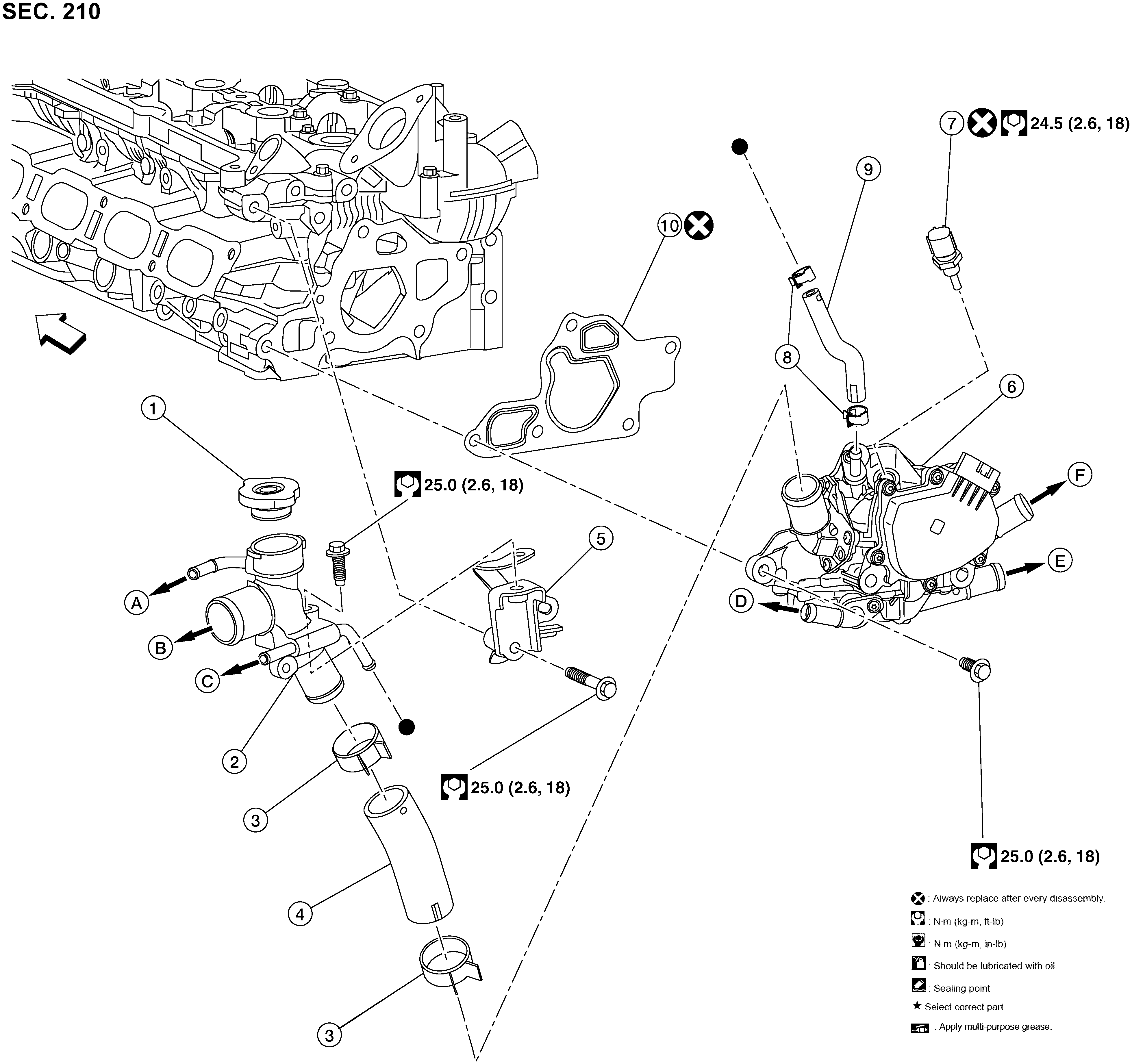

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Radiator cap |
2. |
Water outlet adapter |
3. |
Hose clamp |
|
4. |
Water outlet hose |
5. |
Bracket |
6. |
Multi-way control valve |
|
7. |
Engine coolant temperature sensor 1 |
8. |
Hose clamp |
9. |
Water hose |
|
10. |
Multi-way control valve gasket |
A. |
To reservoir tank. Refer to Exploded View. |
B. |
To radiator. Refer to Exploded View. |
|
C. |
To electric throttle control actuator. Refer to Exploded View. |
D. |
To oil cooler. Refer to Exploded View. |
E. |
To EGR cooler. Refer to Exploded View. |
|
F. |
To heater core. Refer to Exploded View. |
|
Engine front |
