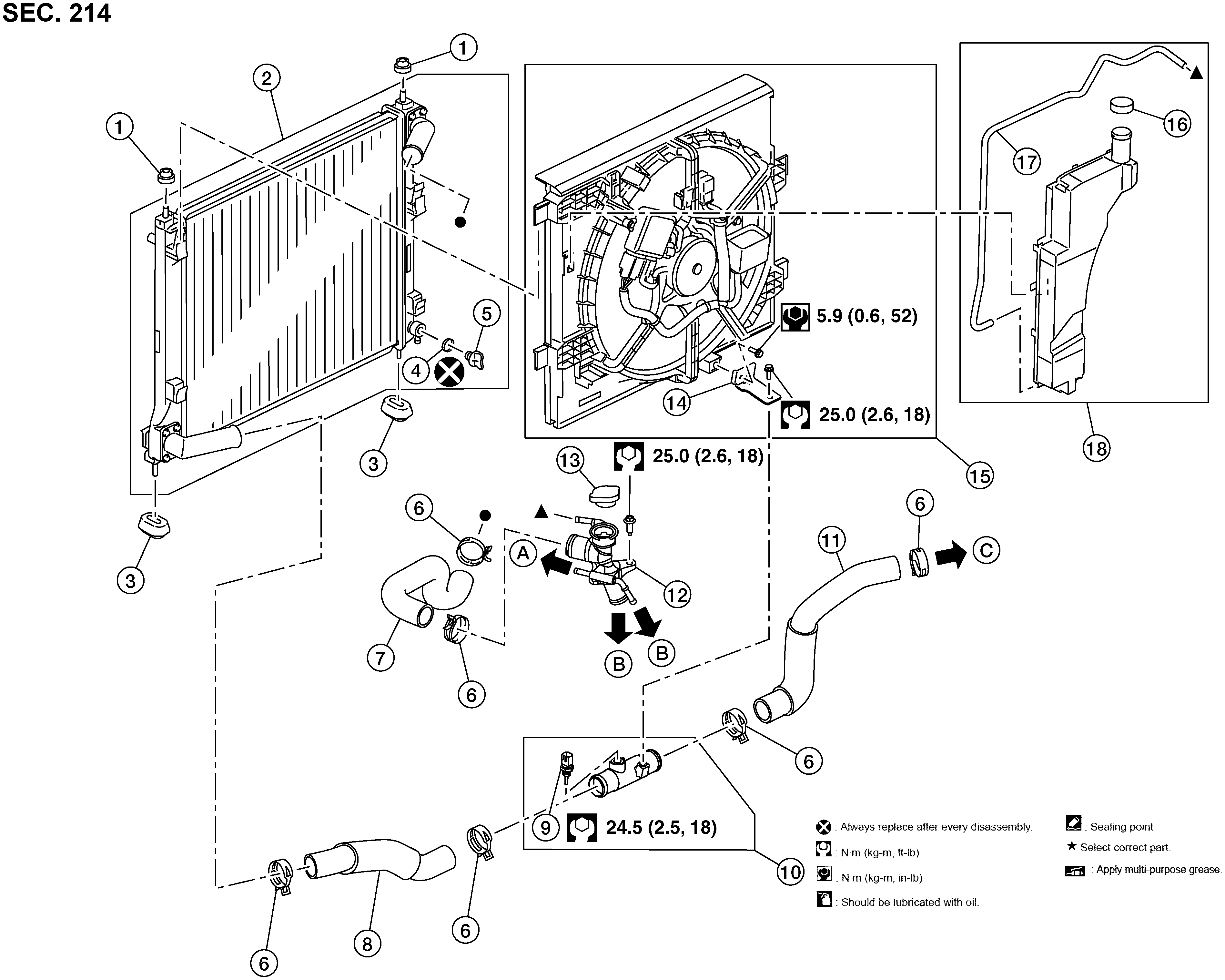

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
Mounting rubber (upper) |
2. |
Radiator assembly |
3. |
Mounting rubber (lower) |
|
4. |
O-ring |
5. |
Drain plug |
6. |
Hose clamp |
|
7. |
Radiator hose (upper) |
8. |
Radiator hose (lower) (LH) |
9. |
Engine coolant temperature sensor 2 |
|
10. |
Radiator hose pipe |
11. |
Radiator hose (lower) (RH) |
12. |
Water outlet adapter |
|
13. |
Radiator cap |
14. |
Bracket |
15. |
Cooling fan assembly |
|
16. |
Reservoir tank cap |
17. |
Reservoir tank hose |
18. |
Reservoir tank assembly |
|
A. |
To electric throttle control actuator. Refer to Exploded View. |
B. |
To multi-way control valve. Refer to Exploded View. |
C. |
To water inlet. Refer to Exploded View. |
