Exploded View

WARNING: This page is about a different variant/trim than selected.

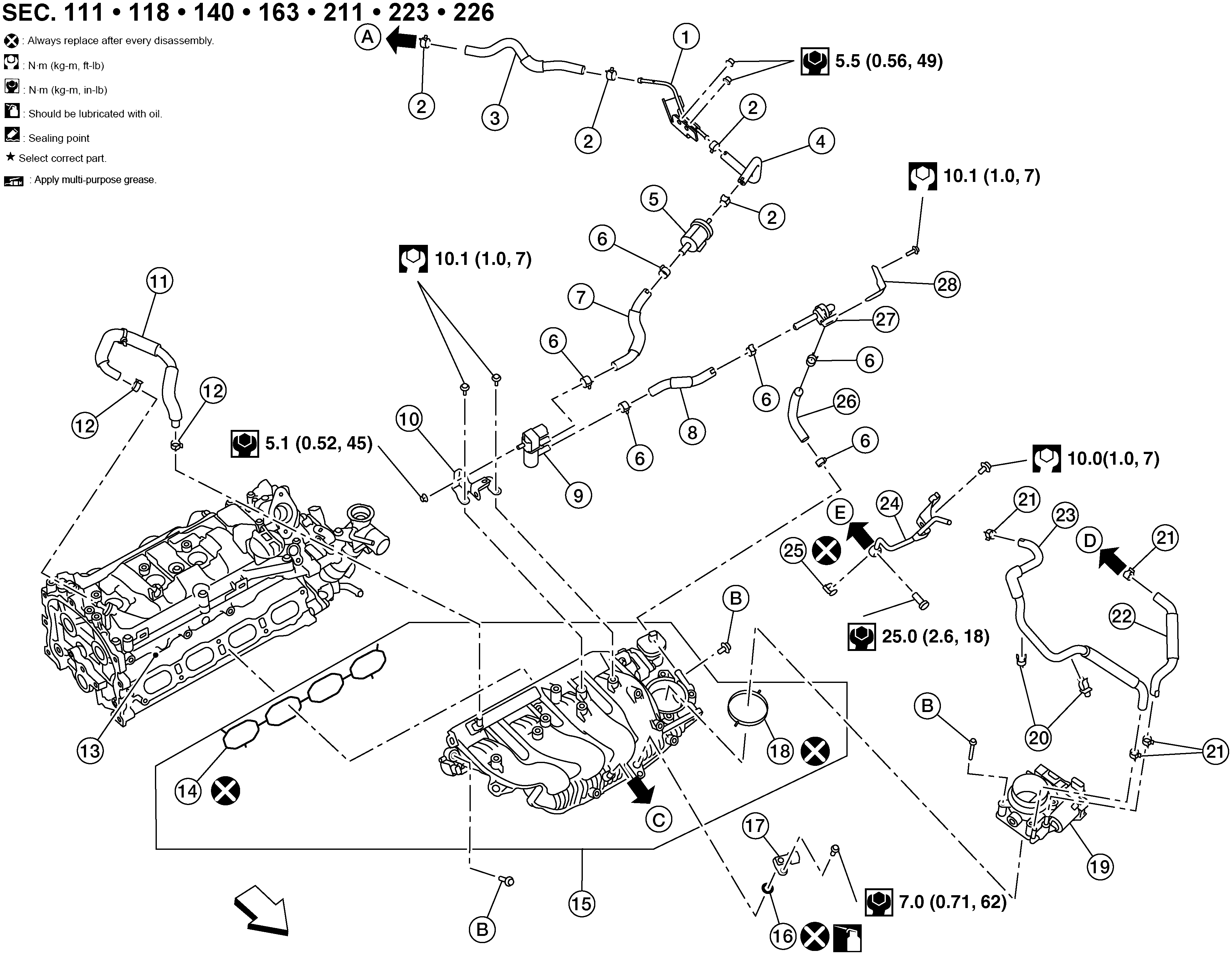

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP tube	2.	Hose clamp	3.	EVAP hose 1
4.	EVAP hose 2	5.	Vacuum delay valve	6.	Hose clamp
7.	EVAP hose 3	8.	EVAP hose 4	9.	EVAP canister purge volume control solenoid valve
10.	EVAP canister purge volume control solenoid valve bracket	11.	PCV hose	12.	Hose clamp
13.	Cylinder head	14.	Intake manifold gasket	15.	Intake manifold
16.	O-ring	17.	Manifold absolute pressure sensor	18.	Electric throttle control actuator gasket
19.	Electric throttle control actuator	20.	Clip	21.	Hose clamp
22.	Electric throttle control actuator water inlet hose	23.	Electric throttle control actuator water outlet hose	24.	Turbocharger water inlet pipe
25.	Copper sealing washer	26.	EVAP hose 5	27.	EVAP check valve
28.	EVAP check valve bracket	A.	To underfloor central distribution pipe.	B.	Refer to INSTALLATION.
C.	To brake booster hose. Refer to Exploded View.	D.	To multi-way control valve. Refer to Exploded View.	E.	To exhaust manifold and turbocharger assembly. Refer to Exploded View.
	Vehicle front
