Exploded View

WARNING: This page is about a different variant/trim than selected.

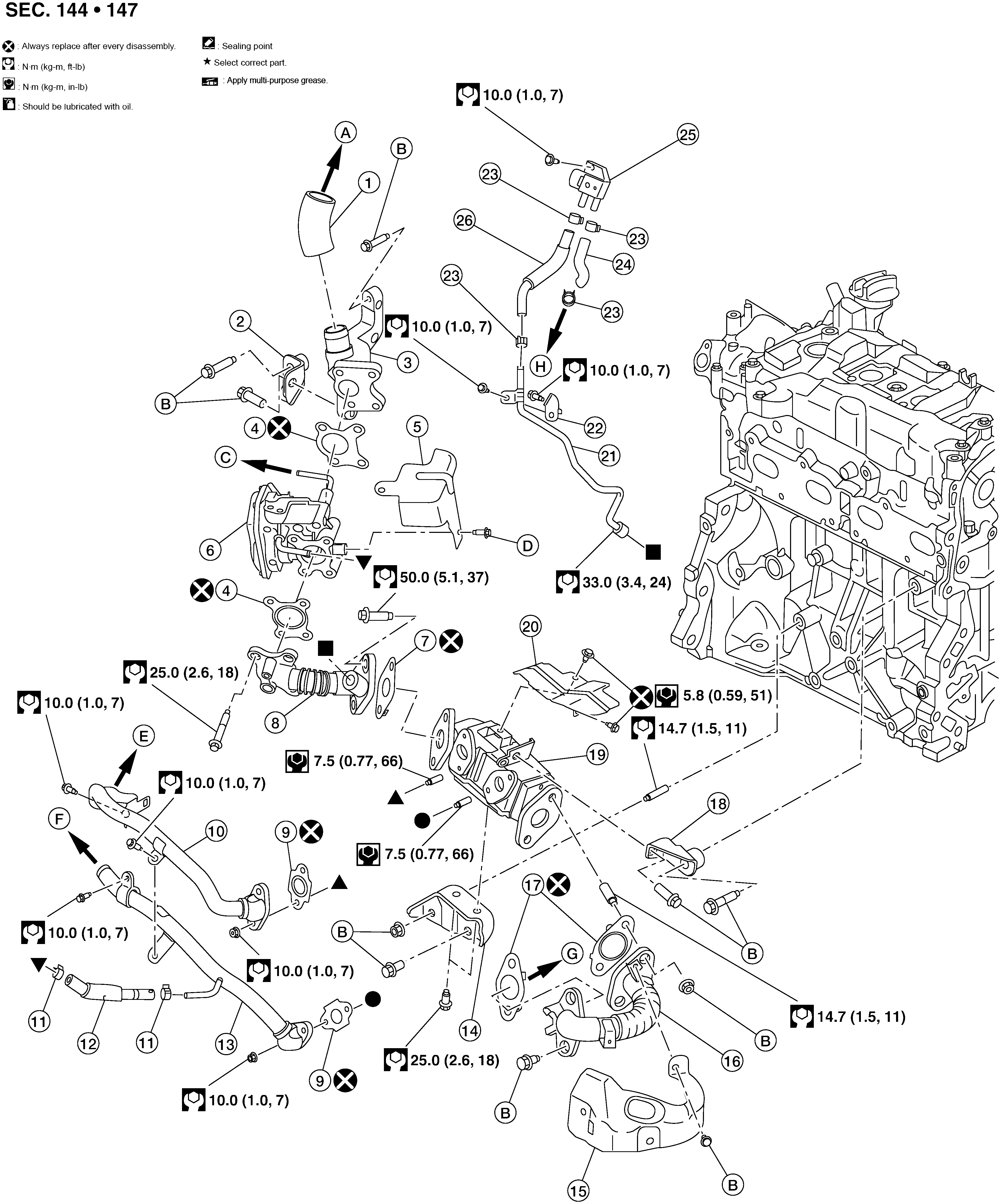

Fig 1: EGR System Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Air hose inlet	2.	EGR control valve bracket	3.	EGR inlet tube
4.	EGR control valve gasket	5.	EGR control valve cover	6.	EGR control valve
7.	EGR guide tube (EGR valve) gasket	8.	EGR guide tube (EGR valve)	9.	Water pipe gasket
10.	Water outlet pipe	11.	Clamp	12.	Water hose
13.	Water inlet pipe	14.	EGR bracket (lower)	15.	EGR guide tube cover
16.	EGR guide tube (catalyst converter)	17.	EGR guide tube (catalyst converter) gasket	18.	EGR bracket (upper)
19.	EGR cooler	20.	EGR cooler cover	21.	EGR differential pressure sensor tube
22.	Bracket	23.	Clamp	24.	EGR differential pressure sensor hose 2
25.	EGR differential pressure sensor	26.	EGR differential pressure sensor hose 1	A.	To turbocharger inlet tube. Refer to Exploded View.
B.	Refer to INSTALLATION	C.	To exhaust manifold and turbocharger assembly. Refer to Exploded View.	D.	Refer to Disassembly and Assembly .
E.	To multi-way control valve. Refer to Exploded View.	F.	To heater core. Refer to Exploded View.	G.	To catalyst converter. Refer to Exploded View.
H.	To turbocharger inlet tube. Refer to Exploded VIew.
