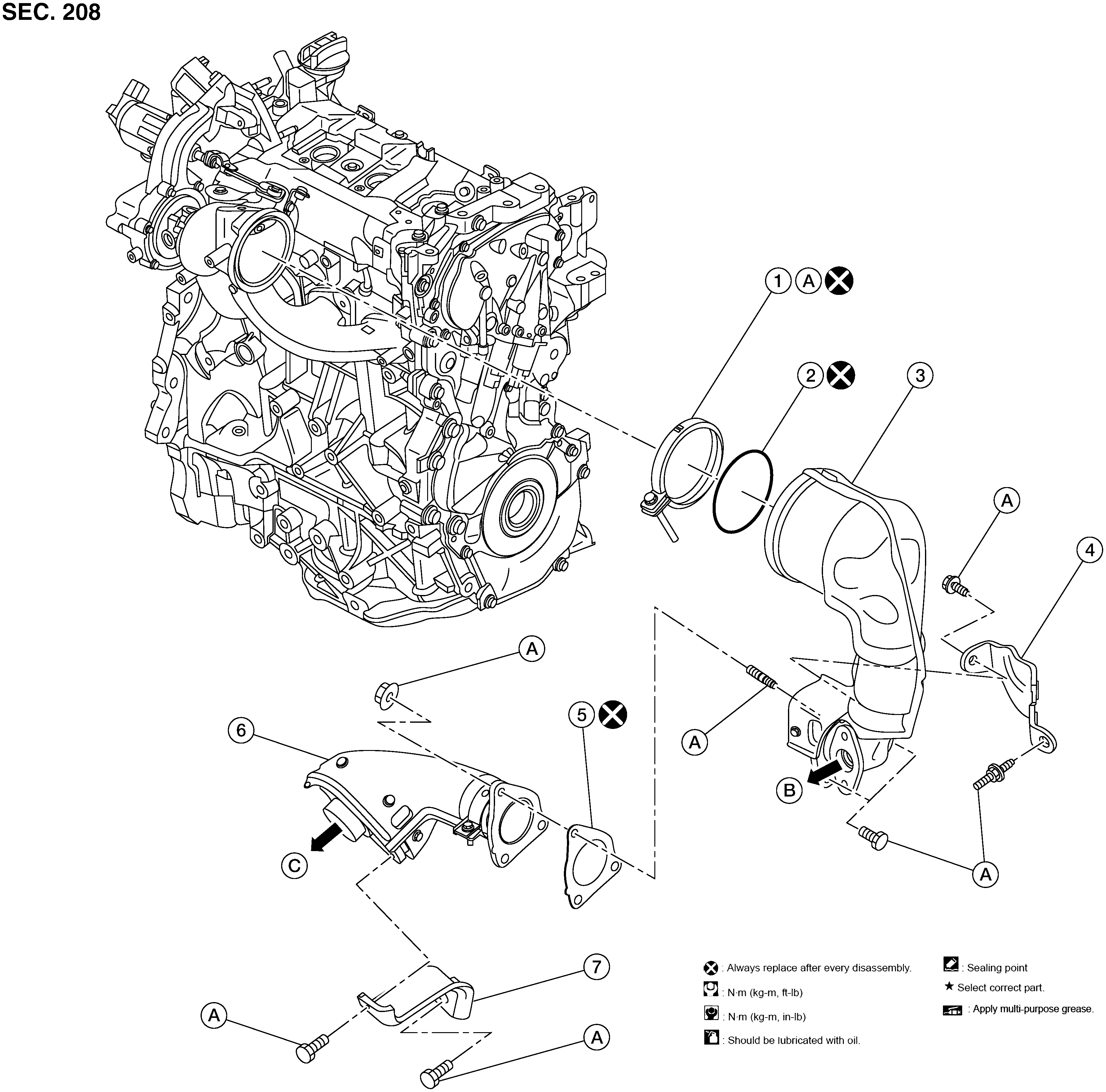

Exploded View
WARNING: This page is about a different variant/trim than selected.
|
1. |
V-band clamp |
2. |
Gasket |
3. |
Catalyst converter |
|
4. |
Catalyst converter bracket |
5. |
Catalyst converter gasket |
6. |
Catalyst converter adapter |
|
7. |
Catalyst converter adapter bracket |
A. |
Refer to INSTALLATION. |
B. |
To EGR cooler. Refer to Exploded View. |
|
C. |
To front exhaust tube. Refer to Exploded View. |
