Exploded View
WARNING: This page is about a different variant/trim than selected.

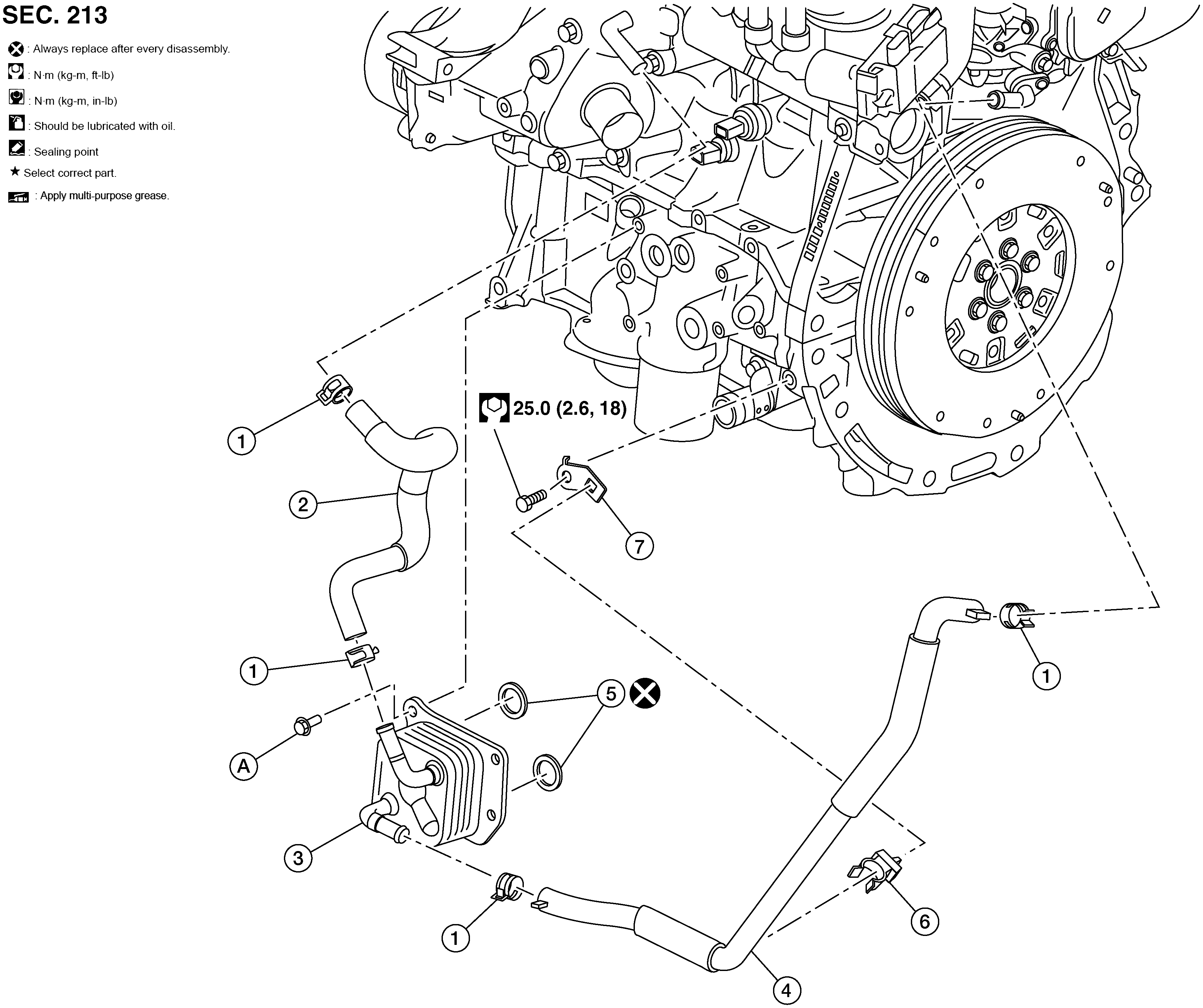

M/T Models
|
1. |
Clamp |
2. |
Oil cooler outlet hose |
3. |
Oil cooler |
|
4. |
Oil cooler inlet hose |
5. |
O-ring |
6. |
Hose clip |
|
7. |
Water hose bracket |
A. |
Refer to INSTALLATION. |

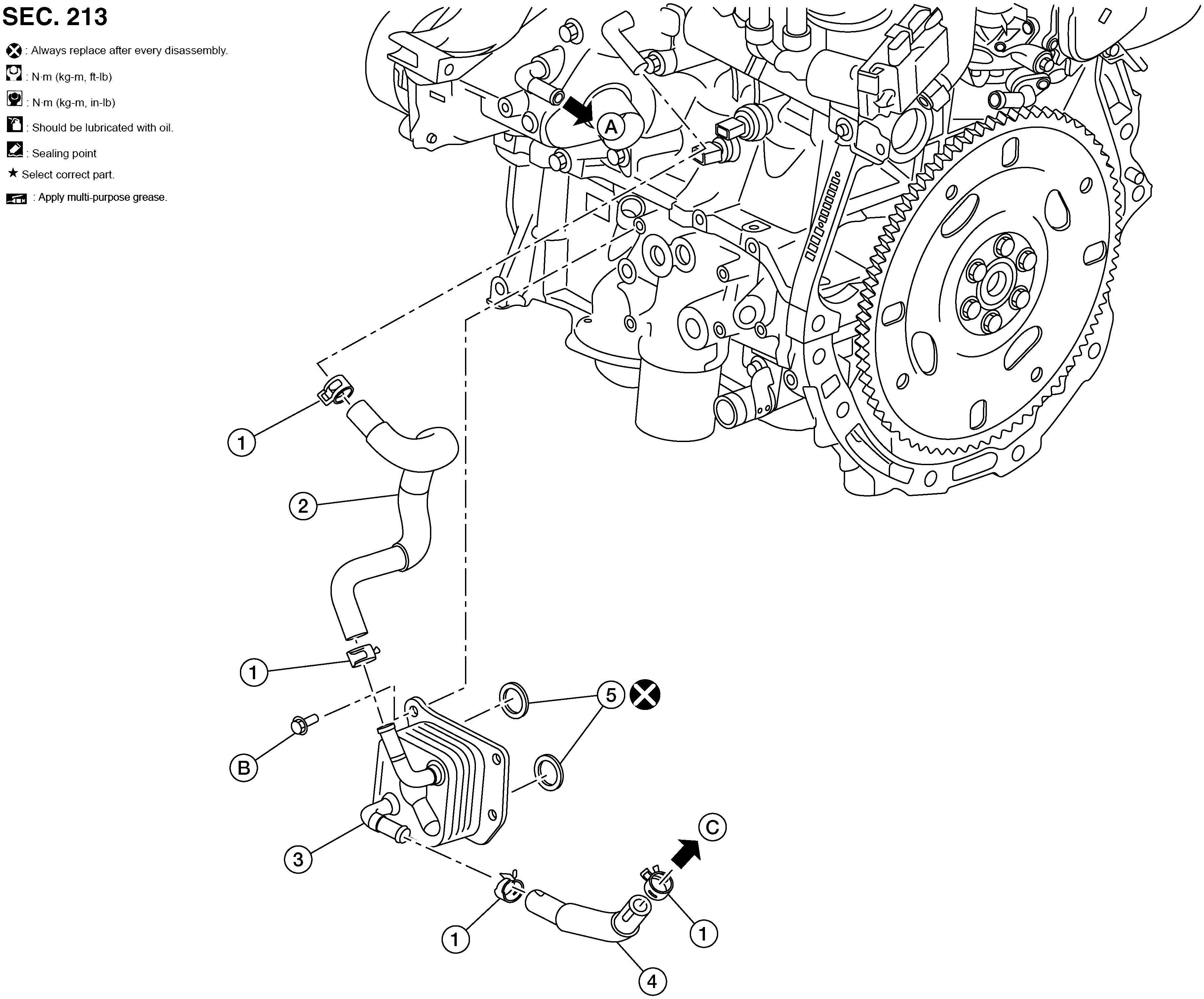

CVT Models
|
1. |
Clamp |
2. |
Water hose |
3. |
Oil cooler |
|
4. |
Water hose |
5. |
O-ring |
A. |
To CVT fluid warmer. Refer to Exploded View. |
|
B. |
Refer to INSTALLATION. |
C. |
To multi-way valve. Refer to Exploded View. |
