Headliner Removal/Installation: Notes

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  1. Perform the headliner preparation. (See HEADLINER PREPARATION .)
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    5. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    7. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    8. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    9. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    10. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    11. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    12. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    15. Cup holder (without wireless charger (Qi)) (See CUP HOLDER REMOVAL/INSTALLATION WITHOUT WIRELESS CHARGER (Qi)  .)
    16. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
    17. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    18. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    19. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    20. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    21. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
    22. Rear vent duct No. 2 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    23. Rear vent duct No. 1 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    24. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION .)
  4. Remove the selector lever nuts and set the selector lever aside to the front passenger-side to rotate the headliner in the vehicle. (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)

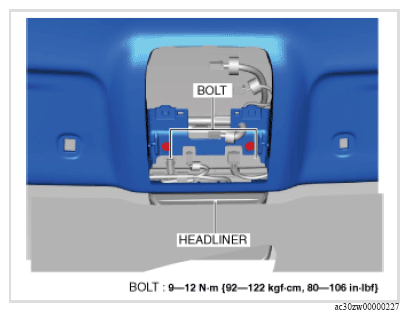

  5. Remove the bolts.
    Fig 1: Headliner And Bolts With Torque Specification
    G16376901Courtesy of MAZDA MOTORS CORP.
  6. Disconnect rear washer hose D.

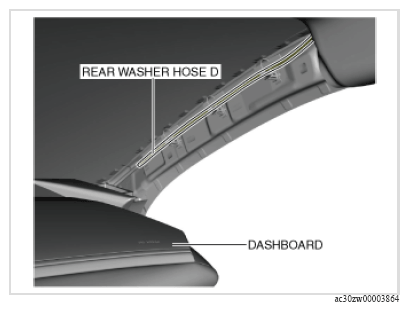

    G16376902Courtesy of MAZDA MOTORS CORP.

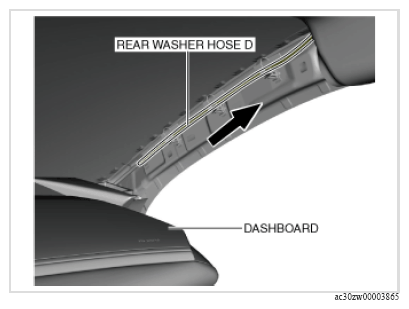

  7. Pull the rear washer hose D in the direction of the arrow shown in the figure and pull them out.
    G16376903Courtesy of MAZDA MOTORS CORP.

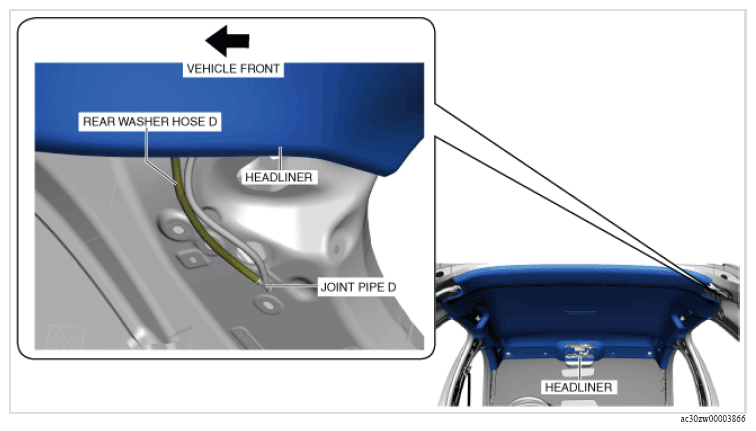

  8. Disconnect rear washer hose D from the joint pipe D.
    G16376904Courtesy of MAZDA MOTORS CORP.

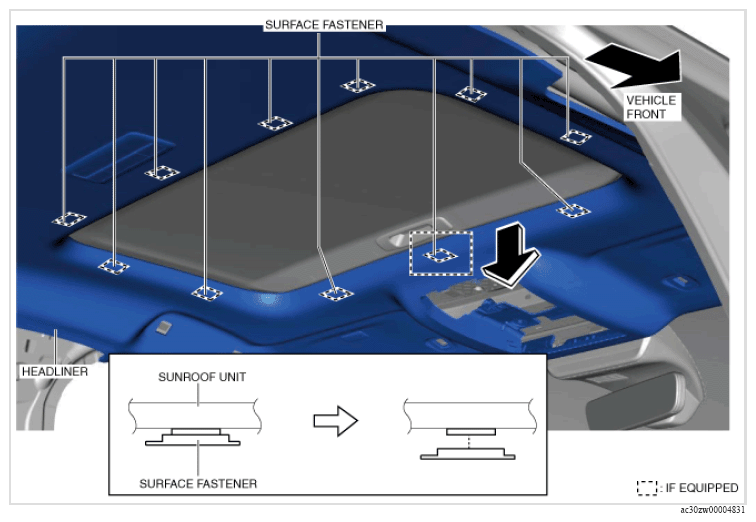

  9. Move the headliner in the direction of the arrow shown in the figure and detach the surface fasteners from the sunroof unit. (with sunroof system)
    G16376905Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When removing the clips from the headliner, the headliner could be damaged if the clips are removed without sliding the headliner.
    • When removing the clips from the headliner, slide the headliner to remove the clips.

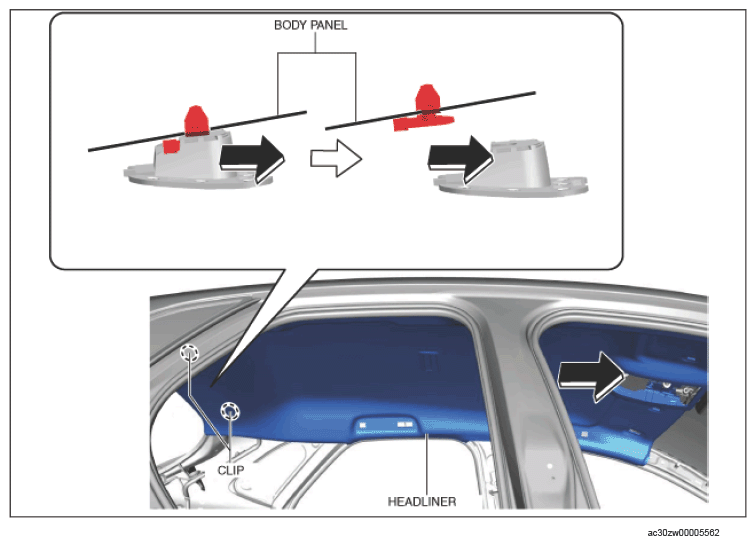

  10. Slide the headliner in the direction of the arrow shown in the figure and remove the clips from the headliner.
    G15658251Courtesy of MAZDA MOTORS CORP.

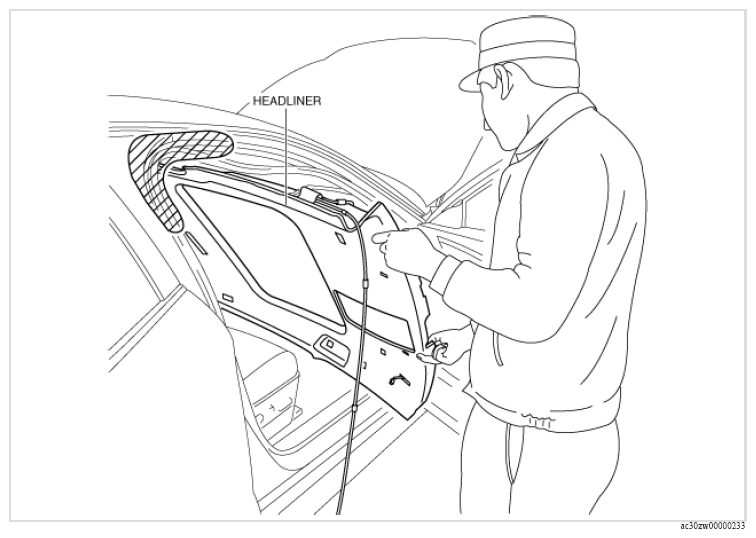

  11. Take the headliner out from the opened passenger-side door.
    G16376907Courtesy of MAZDA MOTORS CORP.

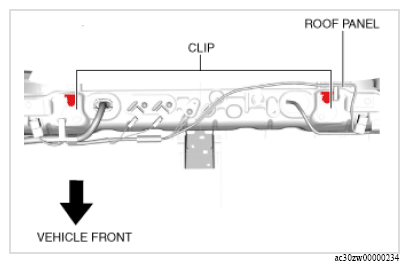

  12. Remove the clips from the roof panel.
    G16376042Courtesy of MAZDA MOTORS CORP.

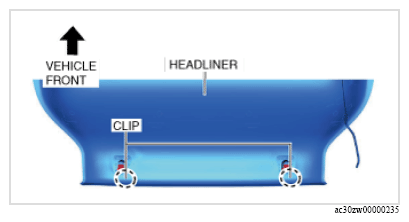

  13. Install the clip removed in Step 13 to the headliner.
    G16376045Courtesy of MAZDA MOTORS CORP.
  14. Install in the reverse order of removal. (See HEADLINER INSTALLATION NOTE .)
