Console Side Panel Removal/Installation
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)

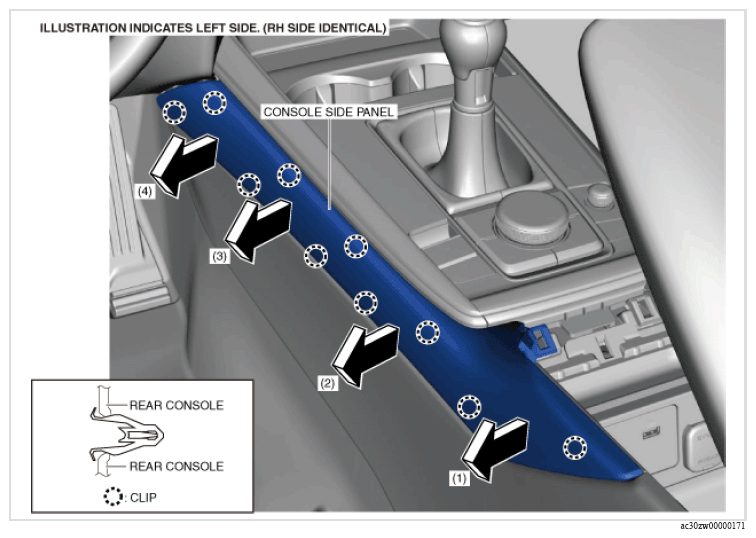

- Move the console side panel in the order of arrows (1), (2), (3) and (4) shown in the figure, and remove it while detaching the clips.
- Install in the reverse order of removal.
