Upper Panel Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Open the console lid.

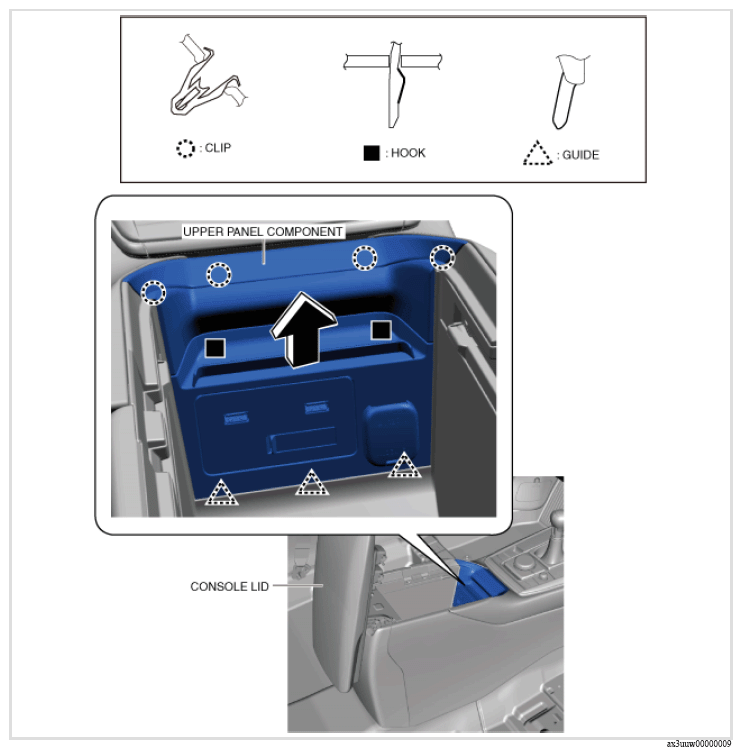

  3. Move the upper panel component in the direction of the arrow shown in the figure and detach the clips, hooks, and guides.
    G16377006Courtesy of MAZDA MOTORS CORP.

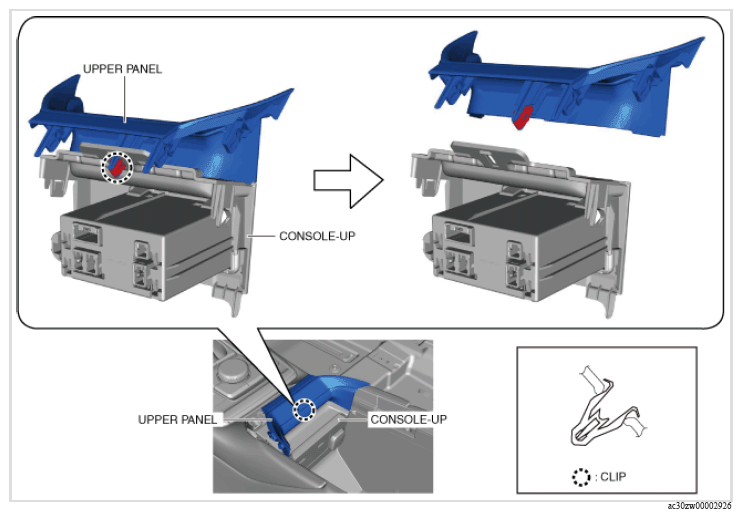

  4. Insert a hand at the back of the upper panel and detach the clip at the position shown in the figure, and remove the upper panel from the console-up.
    G16377007Courtesy of MAZDA MOTORS CORP.
  5. When removing the console-up, perform the following procedure:
    1. Disconnect the connector.

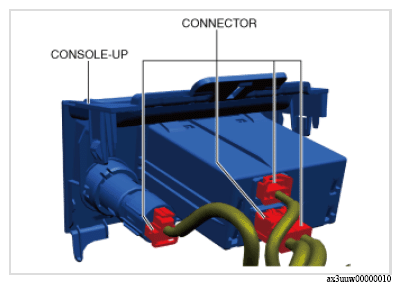

      G16377008Courtesy of MAZDA MOTORS CORP.
    2. Remove the console-up.
  6. Install in the reverse order of removal.
