Shift Panel Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)

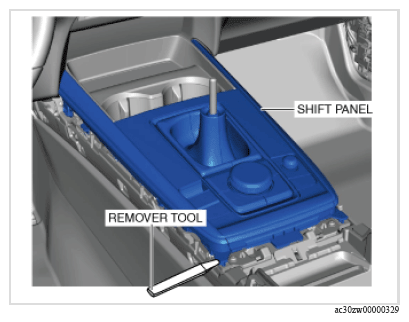

  3. Insert a remover tool into the position shown in the figure.
    G16376971Courtesy of MAZDA MOTORS CORP.

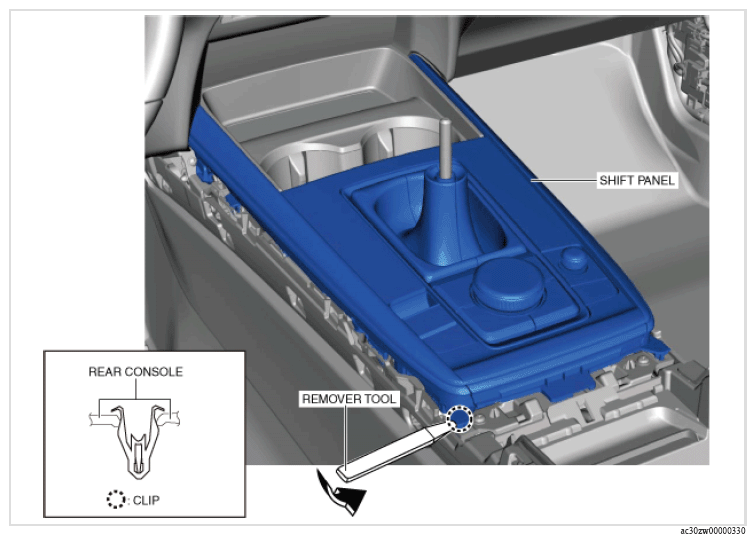

  4. Move the remover tool in the direction of the arrow shown in the figure and detach the clip.
    G16376972Courtesy of MAZDA MOTORS CORP.

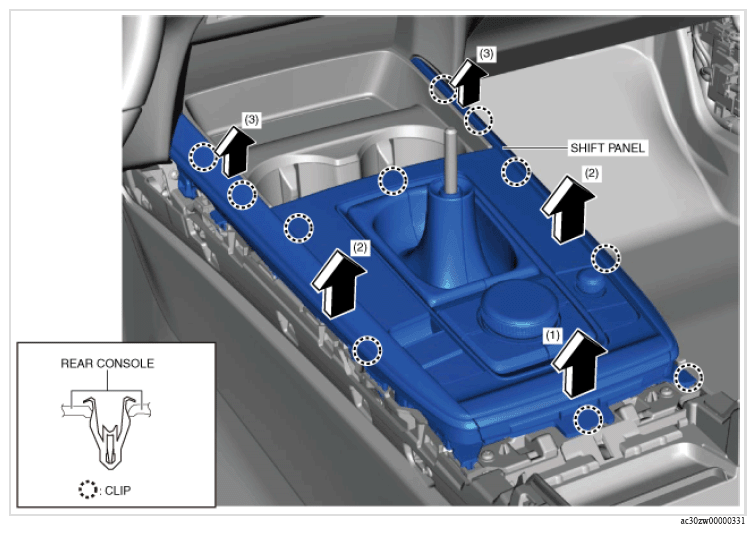

  5. Move the shift panel in the order of arrows (1), (2), and (3) shown in the figure, and detach the clips.
    G16376973Courtesy of MAZDA MOTORS CORP.

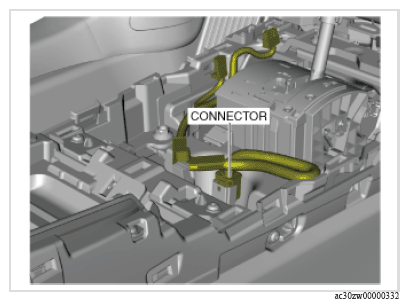

  6. Disconnect the connector. (ATX)
    G16376974Courtesy of MAZDA MOTORS CORP.

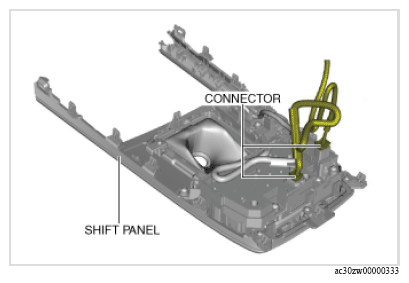

  7. Disconnect the connectors.
    G16376975Courtesy of MAZDA MOTORS CORP.
  8. Remove the shift panel.
  9. Install in the reverse order of removal.
