SUNVISOR Removal/Installation

WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

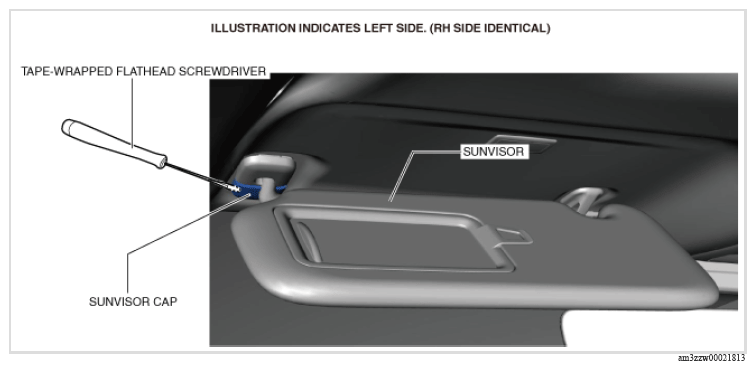

  2. Insert a tape-wrapped flathead screwdriver into the position shown in the figure.
    G16376984Courtesy of MAZDA MOTORS CORP.
  3. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure, detach the tab, and remove the sunvisor cap.
    G14584053Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw.
    G14584054Courtesy of MAZDA MOTORS CORP.

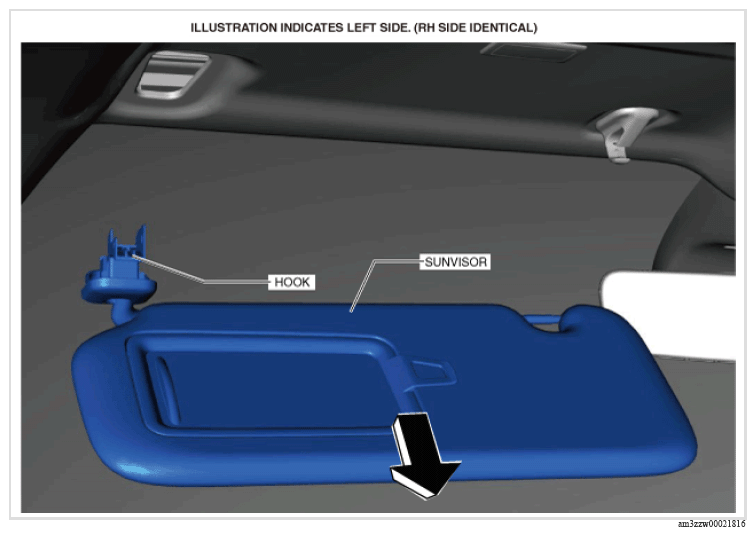

  5. Move the sunvisor in the direction of the arrow shown in the figure and detach the hook.
    G16376987Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the vanity mirror illumination connector. (with vanity mirror illumination)
  7. When removing the center adapter, perform the following procedure:

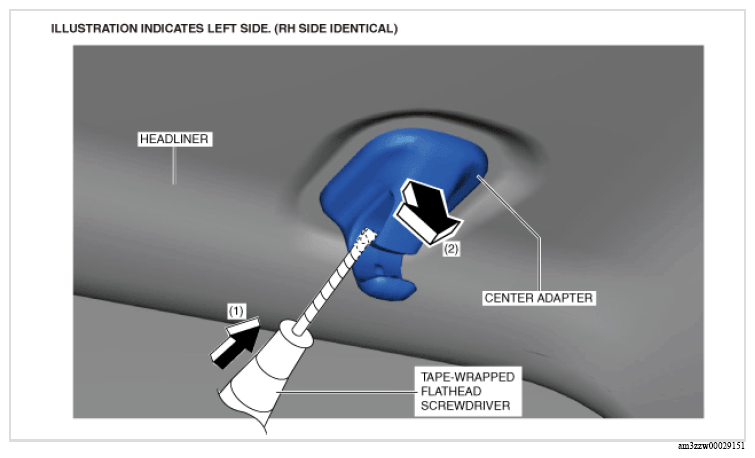

    1. Using a tape-wrapped flathead screwdriver, press the center adapter tab in the direction of arrow (1) shown in the figure, and remove the center adapter in the direction of arrow (2).
    G16376988Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
