Front Drain Hose Removal/Installation: Driver-side

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    8. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    9. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    11. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    12. Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
    13. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    14. Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
    15. Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
    16. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    17. Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    18. Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
    19. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    20. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    21. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    22. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
    23. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    24. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    25. BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)
    26. BCM bracket (See BODY CONTROL MODULE (BCM) BRACKET REMOVAL/INSTALLATION .)
    27. AFS control module (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION .)
  3. Disconnect the front drain hose from the sunroof frame.

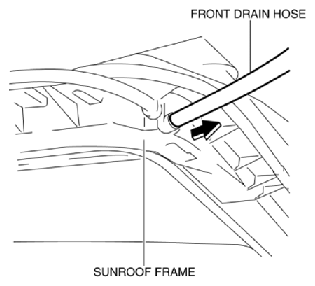

    Fig 1: Disconnecting Front Drain Hose From Sunroof Frame
    G10914490Courtesy of MAZDA MOTORS CORP.
  4. Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

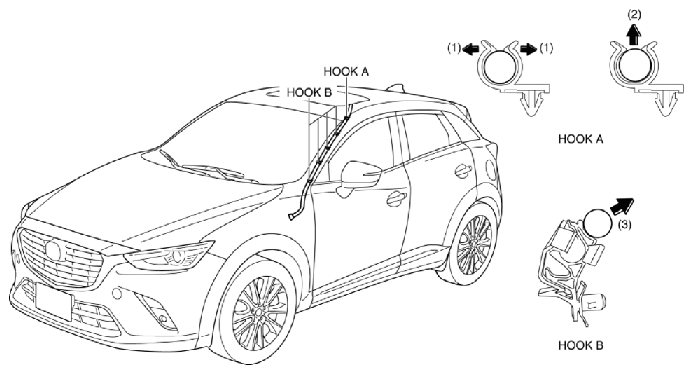

    Fig 2: Pulling Front Drain Hose
    G10914491Courtesy of MAZDA MOTORS CORP.
  5. Remove the front drain hose in the direction of the arrow (3) from hooks B.
  6. Remove the front drain hose in the direction of the arrow (4) from grommet.

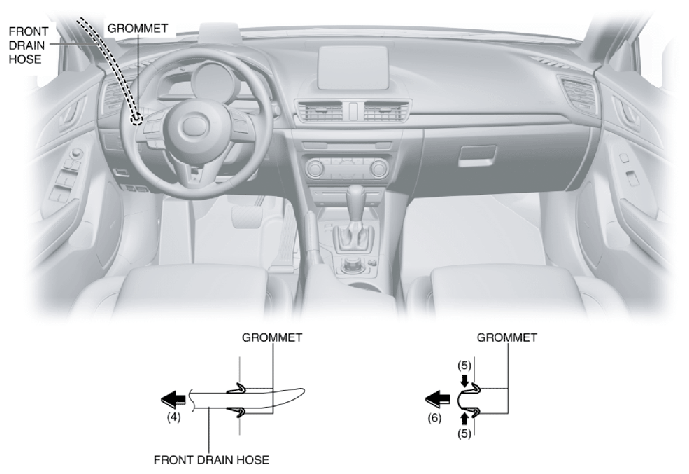

    Fig 3: Removing Front Drain Hose From Grommet
    G10914492Courtesy of MAZDA MOTORS CORP.
  7. Remove the grommet in the direction of the arrow (5), (6) shown in the figure.
  8. Pull the front drain hose out from the A-pillar side.

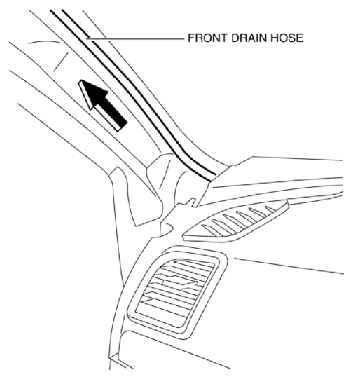

    Fig 4: Pulling Front Drain Hose Out From A-Pillar Side
    G10914493Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
