Roof Carrier Bracket Removal/Installation: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
- Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
- Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
- Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
- Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
- B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
- Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
- Lower anchor installation bolt on the rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
- Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
- Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)
- Trunk board (with trunk board) (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .)
- Trunk box (See TRUNK BOX REMOVAL/INSTALLATION .)
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
- Headliner (See HEADLINER REMOVAL/INSTALLATION .)
- Roof molding (See ROOF MOLDING REMOVAL .) (See ROOF MOLDING INSTALLATION .)
- Remove the curtain air bag module installation bolts and set the curtain air bag module aside.

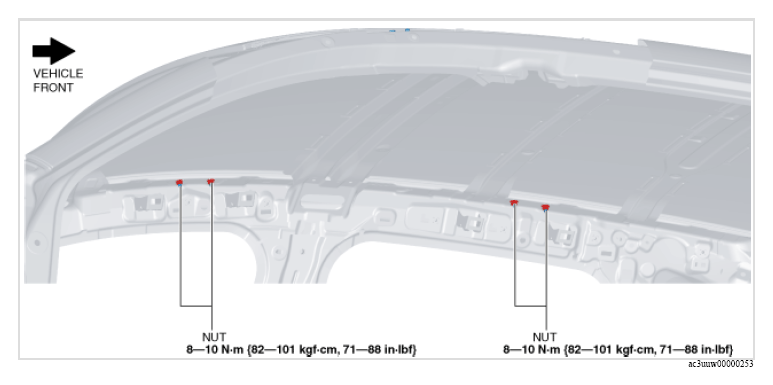

- Remove the nuts.
- Remove the roof carrier brackets.
- Install in the reverse order of removal. (See Roof Carrier Bracket Installation Note .)
