Rear Package Tray Removal/Installation

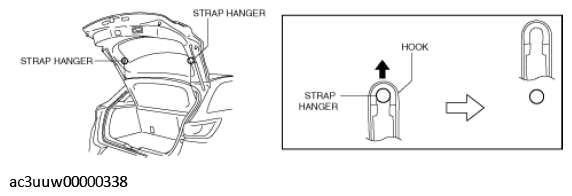

  1. Unhook the hooks from the strap hangers.
    G11434588Courtesy of MAZDA MOTORS CORP.

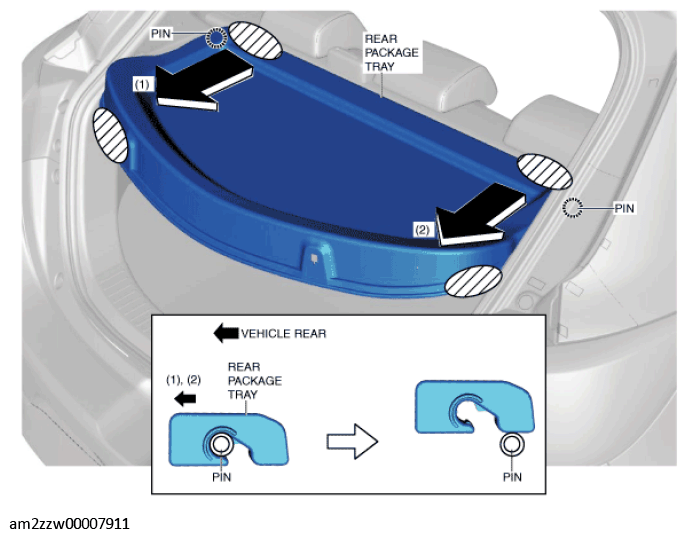

  2. Hold the shaded areas shown in the figure, pull the rear package tray in the order of arrows (1) and (2) and remove it from the pins.
    G11434589Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
